NDT Industrial X Ray Machine with 50mm Penetration, 15-minute Continuous Exposure and Lightweight 34kg Design for Onsite Flaw Detection

1 set
MOQ
12000usd/set
Price
NDT Industrial X Ray Machine with 50mm Penetration, 15-minute Continuous Exposure and Lightweight 34kg Design for Onsite Flaw Detection
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 50mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 170-300kv
Exposure Time: 5 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 5mA
Controller Weight: 9kg
Focus Spot: 0.9*0.9
Generator Weight: 28kg
Highlight:

50mm Penetration Industrial X Ray Machine

,

15-minute Continuous Exposure X Ray Flaw Detector

,

Lightweight 34kg NDT Industrial X Ray Machine
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-3005
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

         China Supplier X-ray Inspection Machine Price Xray NDT Evaluation Scanner for boiler pipe industry

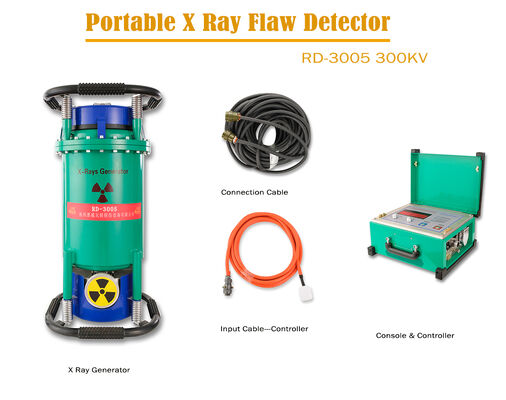

The RD-3005 Industrial X-ray Flaw Detector from Hangzhou Huiwei NDT is engineered for maximum on-site productivity. Weighing only 34kg, this compact unit delivers powerful performance with 15 minutes of continuous exposure and a 2.5:1 work-rest cycle, eliminating the need for 1:1 downtime and boosting double-wall single-shot inspection efficiency by 50%. Ideal for chemical tanks and large-diameter pipelines, it offers a maximum penetration of 50mm Q235 steel, making it the ultimate choice for reliable, high-precision industrial flaw detection.



Key Product Benefits



1. Lightweight & Portable Design


At just 34kg, the generator is easy to transport and set up in remote or confined workspaces, perfectly suited for field and on-site NDT operations.


2. Unmatched Operational Efficiency


With a 15-minute continuous exposure limit and 2.5:1 exposure-rest ratio, the RD-3005 cuts inspection time by 50% for double-wall single-shot radiography, ideal for large-scale pipeline and tank projects.


3. Flexible Radiation Modes


Choose between two specialized models:

  • RD-3005 (Directional): 40±5° focused beam for precise local inspections.
  • RD-3005H (Circumferential): 360°×25° full coverage for one-pass annular component testing.


4. High Penetration & Reliability


Operating at 150–300kV with 5mA tube current, it achieves up to 50mm Q235 steel penetration. Its robust build ensures low failure rates and stable, long-term performance for clear, accurate defect imaging.


5. User-Centric Maintenance


Modular construction simplifies servicing, while an intuitive control interface allows for quick parameter tuning, minimizing downtime and training requirements.

Parameter RD-3005 (Directional) RD-3005H (Circumferential)
Input Power AC220V±10% AC220V±10%
Max Penetration (Q235 Steel) 50mm 45mm
Voltage Range 150–300 kV 150–300 kV
Tube Current 5 mA 5 mA
Focal Spot Size 2.5×2.5 mm 1.0×2.5 mm
Radiation Angle 40±5° 360°×25°
Generator Dimensions 320×320×640 mm 320×320×650 mm
Generator Weight 34 kg 34 kg
Controller Dimensions 325×270×180 mm 325×270×180 mm
Controller Weight 9 kg 9 kg
Operation Mode 2.5:1 exposure-rest, max 15min continuous exposure 2.5:1 exposure-rest, max 15min continuous exposure



Main uses:

NDT Industrial X Ray Machine with 50mm Penetration, 15-minute Continuous Exposure and Lightweight 34kg Design for Onsite Flaw Detection 0



PACKING & DELIVERY

NDT Industrial X Ray Machine with 50mm Penetration, 15-minute Continuous Exposure and Lightweight 34kg Design for Onsite Flaw Detection 1
