Non-Destructive Testing Equipment Industrial Mobile X Ray Machine For Detecting Defects
Technical Parameters:
• Output Voltage: 50kV–180kV
• Input Power: 1.5kW
• Focus Size: 0.9mm×0.9mm
• Radiation Angle: 45±5°
• Maximum Penetration (A3 Steel): 25mm (L=600mm, D=1.5, min=5)
• Generator Weight: 15kg
• Generator Dimensions: Φ210mm×580mm (including end rings)
• Controller Weight: 9kg
• Controller Dimensions: 325mm×270mm×180mm
Product Features:

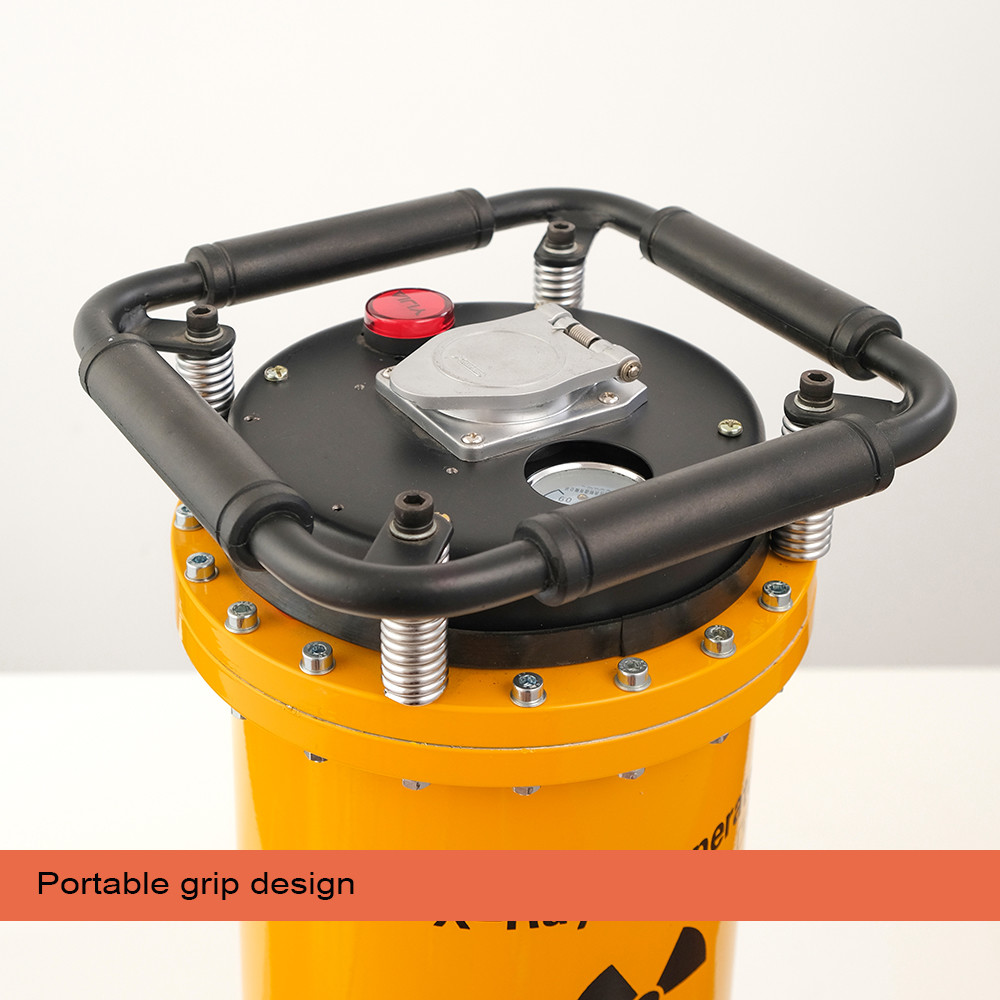

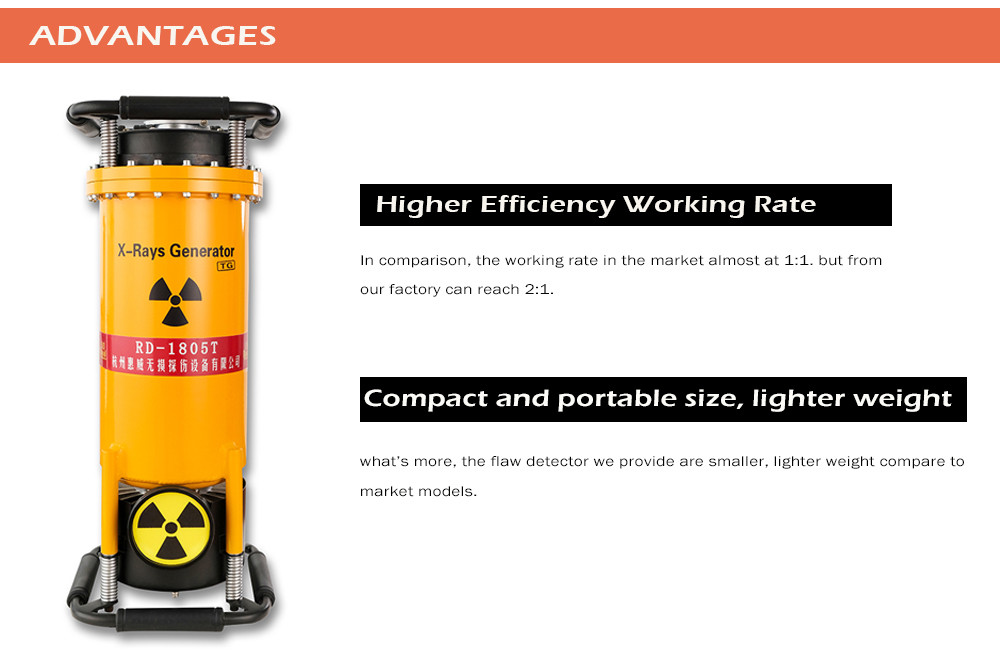

• Compact size and lightweight
• Suitable for power construction installation, shipbuilding, chemical vessel manufacturing, etc.
• Applicable to flaw detection in oil and natural gas pipelines, hydropower stations, etc.
• Ideal for outdoor and high-altitude operations, with convenient portability and strong shock resistance.
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
RD-1803T the technical parameters
|
|
Project
|
RD-1803T
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
50~ 180 KVp
|
|
|
X ray tube current
|
3mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
0.9× 0.9
|
|
|
X-ray irradiation range
|
45±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ210×580
|
|
|
|
12
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
25 mm (5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins
|
FAQ
1. How to ensure quality?
• Pre-production samples are always required before mass production;
• Final inspection is always conducted before shipment.
2. Why choose us over other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO., LTD has been a professional manufacturer specializing in NDT equipment for 30 years, integrating in-house R&D and manufacturing. It is also one of the enterprises strongly supported by the government.
3. What services can we provide?
• Accepted delivery terms: FOB, CFR, CIF, EXW;
• Accepted payment currency: USD;
• Accepted payment methods: T/T, L/C, credit card, Western Union, escrow.
