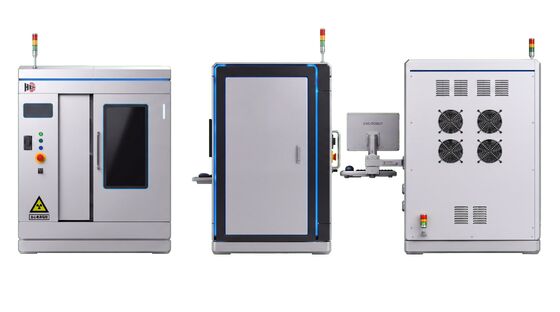

HS-225/320/450 High Energy Industrial CT System 3072x3072 Detector for Large Complex Workpiece NDT Inspection

1 Set
MOQ
Negotiable
Price
HS-225/320/450 High Energy Industrial CT System 3072x3072 Detector for Large Complex Workpiece NDT Inspection
Features Gallery Product Description Chat Now
Features
Specifications
System Type: Medium-to-large Scale High Energy Industrial CT System
Model: HS-225/320/450
Tube Voltage: 225 KV / 320 KV / 450 KV
X-Ray Tube Type: Closed Tube
Maximum Output Power: 1.8 KW (225) / 1.5 KW (320/450)
Focal Spot Size: 0.4 Mm / 1.0 Mm
Detector Type: CsI (Cesium Iodide)
Pixel Pitch: 139 Um (225) / 140 Um (320/450)
Pixel Matrix: 3072 X 3072 Pixels
A/D Conversion: 16 Bit
Active Area: 427 X 427 Mm (225) / 430 X 430 Mm (320/450)
FOD/FDD (Max): 36 Mm / 1150 Mm
Maximum Workpiece Size: Phi830 X 1100 Mm
Maximum Inspection Weight: 100 Kg
Input Power Supply: 230 VAC +/-10% (225) / 380 VAC +/-10% (320/450)
Maximum Power Consumption: 3.8 KVA (225) / 4.5 KVA (320) / 6 KVA (450)
Dimensions (LxDxH): 2700x2800x2365 Mm (225) / 2620x2585x2775 Mm (320/450)
Weight: About 5000 Kg (225) / 10000 Kg (320) / 12000 Kg (450)
Software Functions: Navigation And Positioning, Automatic Porosity/wall-thickness Analysis, Geometry Measurement Tools, Image Stitching, Automatic CNC Inspection
Applications: Industrial Castings, Weldments, Lithium-ion Batteries, Pressure Vessels, Composite Materials, Additive Manufacturing, Special Alloys And Ceramics
Warranty: 12 Months
Highlight:

High Energy Industrial CT System

,

225/320/450 kV CT Scanner

,

Large Workpiece NDT Inspection
Basic Infomation
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: HUIWEI
Certification: ISO 9001:2015, CE
Model Number: HS-225/320/450
Payment & Shipping Terms
Packaging Details: Export-grade heavy-duty wooden crate with vacuum-sealed moisture barrier, shock indicators and reinforced steel strapping
Delivery Time: 60-90 working days after order confirmation
Payment Terms: T/T, L/C at sight
Supply Ability: 8 Sets per Month
Product Description

HS-225/320/450 High Energy Industrial CT System

Medium-to-large scale CT imaging — one platform, three energy levels, for the workpieces other systems cannot handle.



Why the HS-225/320/450 Is Different

Three energy levels on one platform
Choose 225 kV, 320 kV or 450 kV to match thin composite parts or dense, thick-walled metal — scale your inspection capability without buying three machines.
Engineered for large, complex workpieces
A generous Φ830 × 1100 mm workpiece envelope and 100 kg load capacity handle large castings, weldments and assembled structures with ease.
High-resolution imaging chain
CsI detector with a 3072 × 3072 pixel matrix and 16-bit A/D clearly reveals minute internal defects such as porosity and wall-thickness variation.
Automated analysis, not just pictures
The software auto-analyzes porosity and wall thickness, offers diverse geometry measurement tools, image stitching for large parts, and automatic CNC inspection with visual results.
Safe, reliable and operator-friendly
Closed-tube X-ray sources with comprehensive radiation protection make it a dependable, low-maintenance tool for daily industrial QC.

Core Advantages

  • Multi-energy closed-tube source: 225 / 320 / 450 kV selectable.
  • High output power: 1.8 kW (225) up to 1.5 kW class for 320/450 configurations.
  • Dual focal spot: 0.4 mm / 1.0 mm for fine detail or high throughput.
  • CsI flat-panel detector: 3072 × 3072 pixels, 16-bit, 139–140 µm pixel pitch.
  • Large field of view: active area up to 430 × 430 mm; FOD/FDD up to 36 / 1150 mm.
  • Full CT software suite: navigation & positioning, automatic porosity/wall-thickness analysis, geometry measurement, image stitching and automatic CNC inspection.

Technical Specifications

ItemHS-225HS-320HS-450
Tube voltage225 kV320 kV450 kV
X-ray tube typeClosed tubeClosed tubeClosed tube
Maximum output power1.8 kW1.5 kW1.5 kW
Focal spot size0.4 / 1.0 mm0.4 / 1.0 mm0.4 / 1.0 mm
Detector typeCsICsICsI
Pixel pitch139 µm140 µm140 µm
Active area427 × 427 mm430 × 430 mm430 × 430 mm
Pixel matrix3072 × 30723072 × 30723072 × 3072
A/D conversion16 bit16 bit16 bit
FOD / FDD (max)36 / 1150 mm36 / 1150 mm36 / 1150 mm
Max workpiece sizeΦ830 × 1100 mmΦ830 × 1100 mmΦ830 × 1100 mm
Max inspection weight100 kg100 kg100 kg
Input power supply230 VAC ±10%380 VAC ±10%380 VAC ±10%
Max power consumption3.8 kVA4.5 kVA6 kVA
Dimensions (L×D×H)2700 × 2800 × 2365 mm2620 × 2585 × 2775 mm2620 × 2585 × 2775 mm
WeightAbout 5000 kgAbout 10000 kgAbout 12000 kg

Industry Applications

Application AreaTypical CT Inspection Use
Industrial CastingsPorosity, shrinkage, inclusion and internal defect analysis of medium-to-large castings
Industrial WeldmentsWeld quality and internal defect inspection of fabricated components
Lithium-Ion BatteriesInternal structure, alignment and defect inspection of cells and modules
Pressure VesselsWall-thickness and internal quality verification
Composite Materials & PlasticsDelamination, void and fiber-orientation inspection
Additive ManufacturingInternal lattice, wall-thickness and trapped-powder inspection
Special Alloys & CeramicsInternal structure and defect analysis of advanced materials
Automotive & Aerospace ComponentsDimensional verification and internal quality control of complex parts

Company Introduction

Company NameHangzhou Huiwei Nondestructive Testing Equipment Co., Ltd.
Founded1993 — located in Fuyang District, Hangzhou, Zhejiang, China
Business TypeManufacturer integrating R&D, production and sales of industrial X-ray equipment
HonorsNational High & New Technology Enterprise (HNTE); Zhejiang Provincial Specialized & Innovative (SRUI) SME
FacilitiesSelf-built 12,000 m² R&D and manufacturing campus; joint R&D center with China Jiliang University
Innovation23 patents & software copyrights; participant in national (GB) and industry standards compilation
Milestones2016 RD-300LG series (99-min continuous exposure); 2018 high-frequency DC X-ray machine; 2025 300kV industrial DR system; 2026 industrial CT 3D imaging systems
MarketsProducts widely used in oil & gas pipelines, boilers & pressure vessels, chemical, aerospace and other industrial sectors
CooperationLong-term strategic cooperation with major enterprises including PetroChina, Sinopec and aerospace special equipment corporations
ContactTel: +86 571 88754564

Delivery Information

PriceNegotiable (factory-direct pricing, configuration dependent)
Minimum Order Quantity1 Set
Payment TermsT/T, L/C at sight
Supply Ability8 Sets per month
Delivery Time60–90 working days after order confirmation
PackagingExport-grade heavy-duty wooden crate with vacuum-sealed moisture barrier, shock indicators and reinforced steel strapping
ShippingBy sea / air as required; installation, commissioning and operator training support provided

Frequently Asked Questions

Q: Which tube voltage should I choose?A: 225 kV suits thin and low-density parts; 320 kV and 450 kV handle denser, thicker and larger workpieces. We help you match the best configuration to your samples.
Q: What is the largest workpiece it can inspect?A: Up to Φ830 × 1100 mm and 100 kg, with a large 430 × 430 mm detector active area.
Q: Does it come with analysis software?A: Yes — automatic porosity and wall-thickness analysis, geometry measurement tools, image stitching and automatic CNC inspection with visual reporting.
Q: Are you a manufacturer?A: Yes, a National High & New Technology Enterprise founded in 1993, with 12,000 m² of R&D and manufacturing facilities.
Q: What is the MOQ and lead time?A: MOQ is 1 set; delivery is normally 60–90 working days after order confirmation.
Q: Do you provide installation and training?A: Yes, we provide on-site installation, commissioning and operator training, plus 12-month warranty and lifetime maintenance support.

Ready to inspect the workpieces others cannot? Contact us today for a tailored HS-225/320/450 quotation.
