Features

Specifications

Tube Voltage (kV): 225/320/450(optional)

Type: Industrial High-definition X-ray Detector

Portable: 3D Scanning

NDT Type: Nondestructive Testing Rt Digital Imaging

HS Code: 9022909090

X-ray Monitoring: Onsite Monitors And Alarm Systems

Protection Level: International Standard

Production Capacity: 100sets/Year

Brand: HUIWEI

Power Supply Voltage: 380VAC±10%

Form: Cabinet Type

FOD/FDD（Max)（mm): 36/1150

Focal Spot Size (mm): 0.4/1

Basic Infomation

Place of Origin: CHINA

Brand Name: HUIWEI

Certification: CE, ISO

Model Number: HS-ST-90/130/150

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 2 months

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100 sets within one years

Gallery

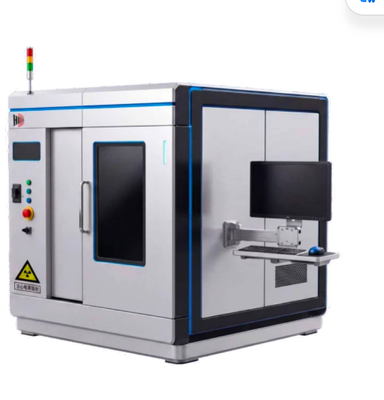

HUIWEI Industrial CT System For Large Complex Workpieces, High Resolution X-Ray 3D Scanner With Automated Inspection Function

Product Description

HUIWEI Industrial CT System for Large Complex Workpieces, High Resolution X-ray 3D Scanner with Automated Inspection Function

Description

As a cutting-edge non-destructive testing solution, Industrial Computed Tomography utilizes X-ray penetration and computer image processing to achieve cross-section imaging of internal workpiece structures.

When X-rays traverse a sample, differences in material X-ray absorption change the signal intensity received by the detector. After data acquisition, professional algorithms reconstruct complete 3D models of the workpiece interior, revealing internal structures and invisible defects clearly.

Advantages

Non-destructive & non-contact testing: Workpieces remain intact after inspection.
High-resolution 3D imaging: Clearly characterize defect position, size, shape and distribution for precise analysis.
Suitable for complex geometry: Detects micro defects inside complicated components that other NDT methods struggle to identify.
Micron-level precise measurement: Supported by high-stability precision mechanical platforms.
Flexible & efficient: One single scan captures full data. Any cross-section can be retrieved for later observation and measurement.

Product Introduction

This medium-to-large-scale industrial CT system, equipped with a high-voltage X-ray source (available in 225kV, 320kV, or 450kV configurations), is specifically designed for large, complex workpieces. It delivers high-resolution imaging capable of clearly capturing minute internal defects. Supporting multiple inspection modes and automated analysis of critical parameters—such as porosity and wall thickness—it significantly enhances quality inspection efficiency. The system ensures safe, reliable operation with comprehensive radiation protection and user-friendly controls. It is a powerful tool for efficient, precise quality control across a wide range of sectors, including automotive and aerospace castings, welded industrial components, composite materials, additive manufacturing, special alloys, plastics, and ceramics.

Technical Specifications

Type	Model	HS-225	HS-320	HS-450
System Status	Dimensions L×D×H (mm)	2700×2800×2365	2620x2585x2775	2620x2585x2775
	Input Power Supply	230VAC±10%	380VAC±10%	380VAC±10%
	Weight (kg)	About5000	About10000	About12000
	Maximum Power Consumption (kVA)	3.8	4.5	6
X-ray source	X-ray tube type	Closed tube	Closed tube	Closed tube
	Maximum output power (kW)	1.8	1.5	1.5
	Tube voltage (kV)	225	320	450
	Focal spot size (mm)	0.4/1	0.4/1	0.4/1
Detector	Detector Type	Csl	Csl	Csl
	Pixel Pitch (µm)	139	140	140
	Active Area (mm)	427*427	430*430	430*430
	A/D (bit)	16	16	16
	Pixel Matrix (pixels)	3072*3072	3072*3072	3072*3072
	FOD/FDD(Max)(mm)	36/1150	36/1150	36/1150
Software system	Navigation and positioning	Enables rapid localization of physical objects.
	Automatic calculation	Performs automated analysis of parameters such as porosity and wall thickness for various components, with support for generating result reports.
	Diverse measurement tools	Supports geometric measurements including distance, angle, diameter, and polygons.
	Image stitching	Supports image stitching and saving for large inspection samples, such as castings, forgings, and injection-molded parts.
	Automatic CNC inspection	Supports single-point and matrix-based setup for rapid project generation, with results available in visual formats.
Motion control system	Maximum workpiece size (mm)	Φ830×1100
	Maximum inspection capacity (kg)	100

Industry Applications

PCB, PCBA, SMT, Semiconductor Packaging, Lithium Battery, Electronic Components

Company Introduction

Name: HUIWEI Industrial CT System For Large Complex Workpieces, High Resolution X-Ray 3D Scanner With Automated Inspection Function
Brand: Hangzhou Huiwei Nondestructive Equipment Co.,Ltd,
SKU: HS-ST-90/130/150
Availability: InStock

Founded in 1993, Hangzhou Huiwei NDT Equipment Co., Ltd. is a high-tech & specialized sophisticated enterprise located in Fuyang, Hangzhou.

We integrate R&D, production and sales, owning a 12,000 ㎡ self-owned factory. We cooperate with China Jiliang University and hold over 31 patents & software copyrights, participating in national industrial standard compilation.

We independently develop portable X-ray flaw detectors, DR and industrial CT systems. Our products serve oil pipelines, aerospace, pressure vessel industries, with long-term partnerships with CNPC, Sinopec and other large groups.

Sticking to innovation, we aim to be a global leading supplier of high-performance industrial X-ray NDT equipment.

FAQ

Q: Is training provided after equipment arrival?

A: Yes, we supply detailed operation manuals and remote operator training. On-site training can be arranged upon further negotiation.

Q: What’s your warranty policy?

A: We offer standard factory warranty. Detailed warranty scope and duration can be specified in the sales contract.

Q: What is the production lead time?

A: It takes around 3 months for standard models. As for customized equipment, the lead time is approximately 6 months, subject to specific customization requirements.

Q: Is equipment customization available?

A: Yes, we can tailor the machines to meet your unique testing requirements, including mechanical structure, software functions and system configuration.
