Features

Specifications

Tube Voltage (kV): 90/130/150 (optional)

Tube Current (µA): 0.1-500

Maximum Output Power (W): 8/60/65

Type: Industrial High-definition X-ray Detector

Portable: 3D Scanning

NDT Type: Nondestructive Testing Rt Digital Imaging

HS Code: 9022909090

X-ray Monitoring: Onsite Monitors And Alarm Systems

Protection Level: International Standard

Production Capacity: 100sets/Year

Brand: HUIWEI

Power Supply Voltage: 380VAC/50HZ

Form: Cabinet Type

Highlight:

NDT Industrial Ct Scanning Services

Industrial Ct Scanning Equipment

Ct Scan Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: HUIWEI

Certification: CE, ISO

Model Number: HS-ST-90/130/150

Payment & Shipping Terms

Packaging Details: Standard export packaging

Delivery Time: 2 months

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100 sets within one years

Gallery

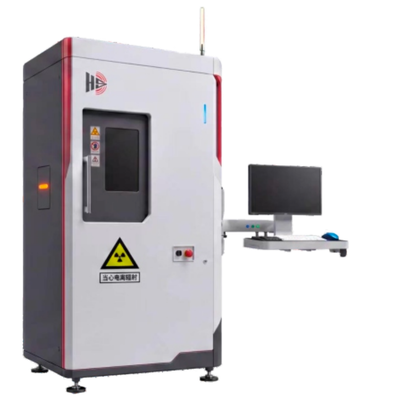

HUIWEI Industrial CT NDT Nde Three Dimension Measurement Spatial Resolution Analysis X-ray 3D Scanner Computer Tomography Machine

Product Description

Industrial CT NDT Nde Three Dimension Measurement Spatial Resolution Analysis X-ray 3D Scanner Computer Tomography Machine

Name: HUIWEI Industrial CT NDT Nde Three Dimension Measurement Spatial Resolution Analysis X-ray 3D Scanner Computer Tomography Machine
Brand: Hangzhou Huiwei Nondestructive Equipment Co.,Ltd,
SKU: HS-ST-90/130/150
Availability: InStock

Product Introduction

HS-ST-90/130/150 industrial CT complete system is a cost-effective micro-focus X-ray non-destructive testing machine independently developed and manufactured in China, specially designed for precision electronic manufacturing industry.

Equipped with high-resolution imaging system, this equipment can clearly capture tiny internal defects of BGA, CSP, Flip Chip, QFN packaging, PCB circuit boards, IC chips, capacitors, resistors and other micro electronic components.

It supports multi-angle visual observation and automatic void porosity analysis, fully meeting the testing requirements of various complex chip packaging products. As an all-in-one inspection solution, it helps factories realize high-precision, high-efficiency and fully safe non-destructive quality control on production lines.

Technical Specifications

Dimensions W×D×H (mm)	110011002100	Power supply voltage		380VAC/50HZ
Weight (kg)	about 1500	Carton dimensions W×D×H (mm)		130013002300
X-ray source
Tube voltage (kV)	90/130/150 (optional)	Maximum output power (W)		8/60/65
Tube current (µA)	0.1-500	Minimum focal spot size(um)		≤10
Detector
Detector type	CMOS	Pixel size (µm)		49.5
Maximum tilt angle	Rotating swing arm: maximum ±60°	Frame rate (fps)		18
Pixel matrix (pixel)	1172*1260	System Magnification (X)		>500
Software system
Navigation and Positioning	Enables rapid localization of physical objects.
Automatic Calculation	Performs automatic void measurement for electronic components (such as BGA and QFN packages) and supports the generation of result reports.
Diverse Measurement Tools	Supports geometric measurements including distance, angle, diameter, and polygons.
Image Stitching	Supports image stitching and saving for large inspection samples like PCBs and PCBAs.
Automatic CNC Inspection	Supports single-point and matrix-style addition for rapid project creation, with results visualized graphically.
Motion control system
Maximum load dimensions (mm)	Φ460*560		Maximum detection size (mm)		330*330

Industry Applications

PCB, PCBA, SMT, Semiconductor Packaging, Lithium Battery, Electronic Components

Company Introduction

Founded in 1993, Hangzhou Huiwei NDT Equipment Co., Ltd. is a high-tech & specialized sophisticated enterprise located in Fuyang, Hangzhou.

We integrate R&D, production and sales, owning a 12,000 ㎡ self-owned factory. We cooperate with China Jiliang University and hold over 31 patents & software copyrights, participating in national industrial standard compilation.

We independently develop portable X-ray flaw detectors, DR and industrial CT systems. Our products serve oil pipelines, aerospace, pressure vessel industries, with long-term partnerships with CNPC, Sinopec and other large groups.

Sticking to innovation, we aim to be a global leading supplier of high-performance industrial X-ray NDT equipment.

FAQ

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized equpment?
A: Yes, we can customize products based on your specific requirements.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
