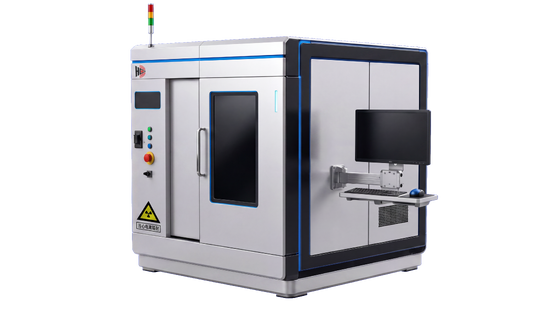

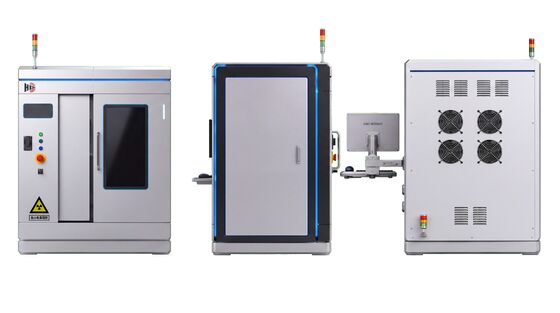

HS-225/320/450 High Energy Industrial CT X Ray System for Aerospace Casting Additive Manufacturing

Product Introduction

The HS-225/320/450 Industrial CT System is a medium-to-large, large-focal-spot industrial computed tomography system paired with 225kV / 320kV / 450kV high-voltage X-ray sources, purpose-built for large and complex workpieces. It clearly captures fine internal defects with high-resolution imaging, supports multiple inspection modes, and automatically analyses key parameters such as porosity and wall thickness to greatly improve quality-control efficiency. Safe, reliable and easy to operate with comprehensive radiation shielding, it is widely used for automotive and aerospace castings, welded industrial components, composites, additive manufacturing, special alloys, plastics and ceramics.

Core Selling Points

• High energy source: 225 / 320 / 450kV closed-tube X-ray source for dense, large parts
• Large part capability: max object size Φ830 × 1100 mm, max load 100 kg
• High-resolution imaging: CsI detector, 3072 × 3072 matrix, 16-bit A/D
• Automatic analysis: automatic porosity and wall-thickness analysis with report export
• Image stitching: stitch large castings, forgings and injection-molded parts into one image
• Rich measurement tools: distance, angle, diameter and polygon geometry measurement
• CNC automatic inspection: single-point and matrix programming with graphical results
• Safe & reliable: comprehensive radiation protection, stable operation, easy to use

Technical Parameters

Whole Machine

X-Ray Source

Detector

Software System

Motion Control System

Applications

• Automotive and aerospace castings
• Industrial welded components and pressure vessels
• Composites, special alloys, plastics and ceramics
• Additive manufacturing (3D printing) parts
• Lithium batteries, foreign-object and security inspection, vehicle inspection

Company & Factory

Hangzhou Huiwei NDT Equipment Co., Ltd. (est. 1993) is a national high-tech enterprise specializing in the R&D and manufacture of industrial X-ray and CT inspection equipment. With a 12,000 m² production and R&D base in Hangzhou, Zhejiang and 31 patents and software copyrights, we serve manufacturers, inspection companies and research institutions worldwide, with long-term partners including CNPC and Sinopec.

Shipping Information

• Packaging: Standard export plywood case with shockproof protection, suitable for sea freight.
• Delivery Time: 30–45 working days after order confirmation.
• Shipping Terms: EXW / FOB / CIF available; sea freight recommended for this large system.
• Port: Shanghai / Ningbo, China.

After-Sales Service

• 12-month warranty on the X-ray source and detector.
• On-site installation, commissioning and operator training available.
• Lifetime technical support and software update guidance.
• English operation manual and remote technical support.
