Name: HS-225/320/450 High Energy Industrial CT Scanner NDT Inspection System for Distributor Reseller Partnership Asia
Brand: Hangzhou Huiwei Nondestructive Equipment Co.,Ltd,
SKU: HS-225/320/450
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Dimensions L×D×H: 2700×2800×2365mm (225) / 2620×2585×2775mm (320/450)

Input Power Supply: 230VAC±10% (225) / 380VAC±10% (320/450)

Weight: About 5000kg (225) / 10000kg (320) / 12000kg (450)

Maximum Power Consumption: 3.8 KVA (225) / 4.5 KVA (320) / 6 KVA (450)

X-Ray Tube Type: Closed Tube

Maximum Output Power: 1.8 KW (225) / 1.5 KW (320/450)

Tube Voltage: 225 KV / 320 KV / 450 KV

Focal Spot Size: 0.4 Mm / 1.0 Mm

Detector Type: CsI (Cesium Iodide)

Pixel Pitch: 139 µm (225) / 140 µm (320/450)

Active Area: 427×427 Mm (225) / 430×430 Mm (320/450)

A/D Conversion: 16 Bit

Pixel Matrix: 3072×3072 Pixels

FOD/FDD (Max): 36 Mm / 1150 Mm

Maximum Workpiece Size: Φ830×1100 Mm

Maximum Inspection Capacity: 100 Kg

Highlight:

High Energy Industrial CT Scanner

Distributor NDT Equipment Program

Asia Market CT Inspection System

Basic Infomation

Place of Origin: Hangzhou, Zhejiang, China

Brand Name: HUIWEI

Certification: ISO 9001:2015, CE, FDA 21 CFR 1020.40, IEC 61010-1

Model Number: HS-225/320/450

Payment & Shipping Terms

Packaging Details: Export-grade heavy-duty wooden crate with vacuum-sealed moisture barrier, shock indicators, and reinforced steel strapping

Delivery Time: 60-90 working days after order confirmation

Payment Terms: T/T,L/C at sight

Supply Ability: 8 Sets per Month

Gallery

HS-225/320/450 High Energy Industrial CT Scanner NDT Inspection System for Distributor Reseller Partnership Asia

Product Description

HS-225/320/450 High Energy Industrial CT Scanning System

Premium NDT Solution for Authorized Distributors Across Asia

225kV / 320kV / 450kV Closed Tube Source CsI Detector 3072²

Product Overview

The HS-225/320/450 series is a high-energy industrial computed tomography (CT) scanning system designed for the most demanding non-destructive testing applications. Available in three powerful configurations—225kV, 320kV, and 450kV—each equipped with a closed-tube radiation source for long-term reliability and a CsI (Cesium Iodide) flat panel detector with 3072×3072 pixel matrix and 16-bit A/D conversion for exceptional image quality. The system accommodates workpieces up to Φ830×1100mm with a maximum inspection capacity of 100kg, making it ideal for castings, forgings, engine blocks, and heavy industrial components across Asia's growing manufacturing sectors.

As a distributor partner, you gain access to a complete ecosystem of support: competitive wholesale pricing with healthy margin structures, protected sales territories, comprehensive technical training, co-branded marketing materials, and dedicated after-sales engineering support. With manufacturing hubs expanding across Southeast Asia, India, and South Korea, the demand for advanced industrial CT inspection has never been stronger. Position your business at the forefront of this growth.

Product Views

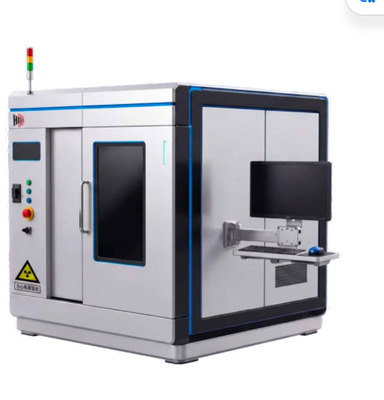

HS-225/320/450 System — Front View

HS-225/320/450 System — Interior Configuration

Distributor Partnership Advantages

💰

Competitive Margin Structure

Tiered wholesale pricing with volume-based incentives. Healthy distributor margins designed for sustainable long-term partnership growth.

🌎

Protected Territory Rights

Exclusive distribution rights within assigned Asian territories. No channel conflict. Build your market with confidence and long-term security.

🎓

Certified Training Program

Comprehensive technical and sales training at our facility or on-site. Certified engineer program ensures your team delivers expert-level service.

📑

Co-Marketing Support

Co-branded brochures, product catalogs, exhibition materials, and digital assets provided. Joint trade show participation support available.

⚙

Spare Parts & Service

Dedicated spare parts inventory with priority shipping to Asia. Remote diagnostic support and on-site warranty service coordination included.

🌐

Multi-Language Platform

Software UI available in English, Chinese, Korean, Japanese, Thai, and Vietnamese. Localized documentation for seamless regional deployment.

System Status

Parameter	HS-225	HS-320	HS-450
Dimensions L×D×H (mm)	2700 × 2800 × 2365	2620 × 2585 × 2775	2620 × 2585 × 2775
Input Power Supply	230VAC ± 10%	380VAC ± 10%	380VAC ± 10%
Weight (kg)	About 5000	About 10000	About 12000
Maximum Power Consumption (kVA)	3.8	4.5	6

Radiation Source

Parameter	HS-225	HS-320	HS-450
Radiation Tube Type	Closed Tube
Maximum Output Power (kW)	1.8	1.5	1.5
Tube Voltage (kV)	225	320	450
Focal Spot Size (mm)	0.4 / 1.0

Detector

Parameter	HS-225	HS-320	HS-450
Detector Type	CsI (Cesium Iodide)
Pixel Pitch (μm)	139	140	140
Active Area (mm)	427 × 427	430 × 430	430 × 430
A/D (bit)	16
Pixel Matrix (pixels)	3072 × 3072
FOD/FDD (Max) (mm)	36 / 1150

Software System

Navigation and Positioning	Enables rapid localization of physical objects.
Automatic Calculation	Performs automated analysis of parameters such as porosity and wall thickness for various components, with support for generating result reports.
Diverse Measurement Tools	Supports geometric measurements including distance, angle, diameter, and polygons.
Image Stitching	Supports image stitching and saving for large inspection samples, such as castings, forgings, and injection-molded parts.
Automatic CNC Inspection	Supports single-point and matrix-based setup for rapid project generation, with results available in visual formats.

Motion Control System

Parameter	HS-225 / HS-320 / HS-450
Maximum Workpiece Size (mm)	Φ830 × 1100
Maximum Inspection Capacity (kg)	100

Asia Market Opportunities for Distributors

Market / Region	Key Growth Drivers	Target Industries	Potential
🇯🇵 South Korea	Semiconductor packaging, EV battery inspection, aerospace supplier chain QA	Electronics, Automotive, Aerospace	HIGH
🇮🇳 India	Make in India manufacturing push, industrial/aerospace investment, automotive growth	Industrial, Automotive, Heavy Industry	HIGH
🇵🇹 Vietnam	Electronics manufacturing migration, FDI-driven factory expansion, supply chain diversification	Electronics, Consumer Goods, Automotive	HIGH
🇯🇸 Thailand	Automotive manufacturing hub, EV transition, aerospace MRO expansion	Automotive, Aerospace, Heavy Machinery	MED-HIGH
🇮🇹 Indonesia	Mining & mineral processing, infrastructure development, manufacturing growth	Mining, Construction, Manufacturing	MED-HIGH
🇬🇧 Malaysia & Singapore	Semiconductor backend, medical device manufacturing, precision engineering	Semiconductor, Medical, Precision Engineering	GROWING

Company Profile

Company Name	Hangzhou Huiwei NDT Equipment Co., Ltd.	Established	1993
Headquarters	Fuyang District, Hangzhou, Zhejiang, China	Facility Area	12,000 m²
Enterprise Status	National Key High-Tech Enterprise \| Zhejiang Province Specialized & Sophisticated SME
R&D Partnership	Joint R&D Center with China Jiliang University
IP Portfolio	31 Patents & Software Copyrights \| Participated in multiple national & industry standard drafting/revision
Key Milestones	• 2016: Developed RD-300LG series (99-min continuous exposure); pioneered industrial radiographic equipment leasing model • 2017: Recognized as Zhejiang S&T SME & Yuhang District R&D Center • 2018: Self-developed G300D series high-frequency DC radiographic machine; certified National Key High-Tech Enterprise • 2023: Certified Zhejiang Specialized & Sophisticated SME • 2024: Level-3 Safety Production Standardization; launched HangShe 1.0 digital imaging system software • 2025: Completed 300kV industrial DR R&D and prototype • 2026: Completed industrial CT 3D digital imaging system R&D
Key Clients & Industries	CNPC, Sinopec, chemical equipment manufacturing, aerospace & industrial special equipment; oil & gas pipelines, boiler & pressure vessels, aerospace components
Core Competencies	30+ years of industrial radiographic expertise covering R&D, manufacturing, and sales. Full product line from portable flaw detectors to high-energy DR and 3D CT systems. Strong partnerships with national energy and industrial enterprises.

Distributor Program Overview

🔹 Partnership Tiers	Authorized Distributor, Gold Partner, Platinum Partner—with escalating benefits, margins, and territory scope
🏫 Sales Training	2-week intensive training program at HQ (China) covering product technology, application consulting, competitive positioning, and hands-on demo operation
💻 Technical Certification	Certified Service Engineer (CSE) program. Your technicians become factory-authorized for installation, calibration, and first-line maintenance
📄 Marketing Toolkit	Co-branded product brochures (print + digital), application case studies, exhibition booth graphics, sample scan reports, and video assets provided
📦 Demo Equipment	Discounted demo unit program for qualified partners. Enables local customer demonstrations and sample scanning without long lead times
🌎 Territory Protection	Defined exclusive sales territory with lead registration system. All inbound inquiries from your region are routed directly to you

Become an Authorized HS-Series Distributor in Asia

🤝 Apply for Distributorship 📄 Request Distributor Kit 📞 Schedule a Call

HS-225/320/450 Series High Energy Industrial CT — HUIWEI NDT Technology | 15,000 m² Manufacturing Facility | ISO 9001:2015 Certified | Global Distributor Network
