Name: HS-ST-90/130/150 Multi-Energy Industrial CT Scanner High Throughput NDT Inspection System for Testing Labs
Brand: Hangzhou Huiwei Nondestructive Equipment Co.,Ltd,
SKU: HS-ST-90/130/150
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

X-Ray Source: 90kV (HS-ST-90) / 130kV (HS-ST-130) / 150kV (HS-ST-150)

Flat Panel Detector: Amorphous Silicon Flat Panel Detector

Pixel Matrix: 1172×1260 Pixels

Max Effective Imaging Area: 130mm×130mm (90) / 250mm×250mm (130) / 400mm×280mm (150)

Max Sample Weight: 10kg (90) / 25kg (130) / 50kg (150)

Cabinet Shielding: Self-Shielding Lead-Steel, <1μSv/h At 10cm

Scanning Mode: Cone Beam CT, Helical CT, Multi-FOV, ROI Zoom

Manipulator: 5-Axis Motorized (X, Y, Z, Tilt, Rotation), High-Precision Motion

Control Software: HS-CT Reconstruction & Analysis System

Data Export: STL, RAW, TIFF, BMP Supported

Environmental Requirement: Temperature: 20℃±5℃; Humidity: <70% (non-condensing)

Dimensions (L×W×H): Varies By Model; HS-ST-150: 1850×1350×1900mm

Weight: About 1500 Kg

Dimensions W×D×H: 1100×1100×2100 Mm

Power Supply Voltage: 380VAC/50Hz

Carton Dimensions W×D×H: 1300×1300×2300 Mm

Tube Voltage: 90/130/150 KV (Optional)

Maximum Output Power: 8W / 60W / 65W

Tube Current: 0.1-500 µA

Minimum Focal Spot Size: ≤10 µm

Detector Type: CMOS

Pixel Size: 49.5 µm

Maximum Tilt Angle: Rotating Swing Arm: ±60°

Frame Rate: 18 Fps

System Magnification: >500X

Maximum Load Dimensions: Φ460×560 Mm

Maximum Detection Size: 330×330 Mm

Highlight:

Multi-Energy CT NDT Scanner

High Throughput Lab CT System

Cost-Effective Industrial CT Solution

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: HUIWEI

Certification: ISO 9001:2015, CE, FDA 21 CFR 1020.40

Model Number: HS-ST-90/130/150

Payment & Shipping Terms

Packaging Details: Export-grade wooden crate with vacuum-sealed moisture barrier and custom-cut shock-absorbing foam inserts

Delivery Time: 30-45 working days after order confirmation

Payment Terms: T/T,L/C at sight

Supply Ability: 15 Sets per Month

Gallery

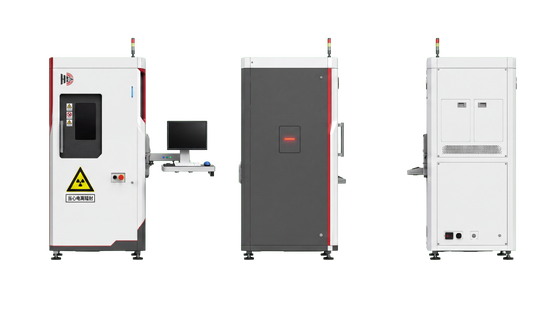

HS-ST-90/130/150 Multi-Energy Industrial CT Scanner High Throughput NDT Inspection System for Testing Labs

Product Description

HS-ST-90/130/150 Industrial CT Scanning System

High-Resolution X-Ray CT Solution for Third-Party NDT Service Providers

90/130/150kV Optional CMOS Detector >500X Magnification

Product Overview

The HS-ST-90/130/150 is a high-resolution industrial computed tomography (CT) scanning system engineered for third-party NDT testing laboratories and independent inspection service providers. Featuring a configurable X-ray source with optional 90kV, 130kV, or 150kV tube voltage, a CMOS detector with 49.5μm pixel size and 1172×1260 pixel matrix, and a rotating swing arm with ±60° tilt, this system delivers exceptional imaging flexibility. The >500X system magnification and ≤10μm minimum focal spot ensure precise defect detection for the most demanding quality assurance applications.

Designed for commercial lab operations, the HS-ST supports a maximum load of Φ460×560mm and detection area up to 330×330mm. The integrated HS-CT software suite provides automatic void measurement for electronic components (BGA, QFN packages), image stitching for large PCB/PCBA inspection, and automatic CNC inspection with graphical result visualization. With a compact footprint of 1100×1100×2100mm and 380VAC 50Hz power supply, this system is ready for deployment in testing labs across the Middle East and GCC region.

Key Advantages for Testing Labs

⚡

Configurable Tube Voltage

Selectable 90kV, 130kV, or 150kV X-ray source with power ratings of 8W, 60W, and 65W. One platform serves electronics, composites, and metal components.

🔍

High-Resolution CMOS Imaging

CMOS detector with 49.5μm pixel size and 1172×1260 matrix. >500X magnification with ≤10μm focal spot for ultra-fine defect detection.

📊

Automatic Defect Analysis

Built-in automatic void measurement for BGA, QFN and electronic packages. CNC batch inspection with graphical result reports. Reduces manual review time significantly.

🌐

Middle East Ready

380VAC 50Hz power supply standard for GCC grids. Compact footprint fits standard lab spaces. Arabic/English software UI with regional service network across GCC.

🎨

Large Sample Capacity

Maximum load Φ460×560mm with 330×330mm detection area. Rotating swing arm with ±60° tilt for oblique angle inspection of complex geometries.

📦

Compact & Efficient

1100×1100×2100mm footprint, ~1500kg weight. Export carton 1300×1300×2300mm. Low total cost of ownership with industry-standard components.

Product Views

HS-ST Industrial CT System — Lab Installation View

HS-ST Industrial CT System — Front View

Overall System Status

Dimensions W×D×H (mm)	1100 × 1100 × 2100	Power Supply Voltage	380VAC / 50Hz
Weight (kg)	about 1500	Carton Dimensions W×D×H (mm)	1300 × 1300 × 2300

X-Ray Source

Tube Voltage (kV)	90 / 130 / 150 (Optional)	Maximum Output Power (W)	8 / 60 / 65
Tube Current (μA)	0.1 – 500	Minimum Focal Spot Size (μm)	≤ 10

Detector

Detector Type	CMOS	Pixel Size (μm)	49.5
Maximum Tilt Angle	Rotating Swing Arm: ±60°	Frame Rate (fps)	18
Pixel Matrix (pixel)	1172 × 1260	System Magnification (X)	> 500

Software System

Navigation and Positioning	Enables rapid localization of physical objects.
Automatic Calculation	Performs automatic void measurement for electronic components (such as BGA and QFN packages) and supports the generation of result reports.
Diverse Measurement Tools	Supports geometric measurements including distance, angle, diameter, and polygons.
Image Stitching	Supports image stitching and saving for large inspection samples like PCBs and PCBAs.
Automatic CNC Inspection	Supports single-point and matrix-style addition for rapid project creation, with results visualized graphically.

Motion Control System

Maximum Load Dimensions (mm)

Φ460 × 560

Maximum Detection Size (mm)

330 × 330

Inspection Applications — One System, Multiple Revenue Streams

Industry Sector	Typical Inspection Tasks	Middle East Demand
Electronics & Semiconductor	BGA/QFN package void analysis, PCB solder joint inspection, chip package delamination, connector seating verification	MEDIUM
Oil & Gas	Pipeline weld integrity, valve casting porosity, drill bit wear analysis, flange gasket seating verification	HIGH
Aerospace & Defense	Turbine blade cooling channel inspection, composite delamination analysis, additive manufactured part validation	MEDIUM
Automotive & EV	Battery cell alignment, motor winding analysis, aluminum casting porosity, sensor assembly QA	GROWING
Medical Devices	Implant dimensional verification, catheter lumen patency, injection molding defect detection	GROWING
Construction & Infrastructure	Structural steel weld inspection, concrete core analysis, rebar positioning, anchor bolt integrity	HIGH

Middle East Market Readiness

🔌 GCC Power Compatibility	Standard 380VAC 50Hz power input, fully compatible with GCC industrial power grids. No transformer or frequency converter required.
📦 Gulf Port Logistics	Direct shipping to Jebel Ali (Dubai), Dammam, and Jeddah ports. Export carton 1300×1300×2300mm with vacuum-sealed moisture barrier. Typical transit: 18–22 days.
💻 Arabic UI & Documentation	Full Arabic localization of HS-CT scanning and analysis software. Technical documentation, operation manuals, and training materials available in English and Arabic.
🔩 Regional Service Support	Authorized service partner in Dubai with factory-trained engineers. Remote diagnostics via secure VPN. On-site warranty support across all GCC member states.
📚 GCC Standards Compliance	GSO (GCC Standardization Organization) compliant design. Supports SASO, ESMA, and ADNOC inspection protocol documentation requirements.
🏫 Local Reference Installations	Installed base in UAE and Saudi Arabia. Reference site visits and demonstration scans available upon request for qualified buyers. Local training and application development support included.

Start Your NDT Service Business in the Middle East

✉ Request a Quote 🎦 Book a Demo 📄 Sample Report

HS-ST Series Industrial CT — Engineered for Commercial Testing Labs | 24-Month Warranty | ISO 9001:2015 Certified
