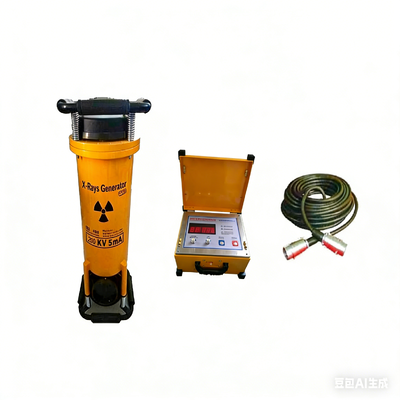

RD-2005 Portable Industrial X-Ray Flaw Detector 50-200KVp SF6 Gas Insulated NDT Radiography Equipment

1 Set
MOQ
USD 7500-9000 / Set
Price
RD-2005 Portable Industrial X-Ray Flaw Detector 50-200KVp SF6 Gas Insulated NDT Radiography Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Model: RD-2005
X-ray Tube Voltage: 50~200 KVp
X-ray Tube Current: 3 MA
Stability: +/-1%
Focal Spot Size: 1.5 Mm
Radiation Angle: 45 +/- 5 Deg
Working Pressure: 0.45-0.5 MPa
Cooling Method: Anode-grounded Radiator, Forced Air Cooling
Insulation Method: SF6 Gas Insulation
Generator Dimensions: 220 X 220 X 560 Mm
Generator Weight: 15 Kg
Max Penetration: 25 Mm (A3 Steel)
Film Sensitivity: Better Than 2%
Controller Model: HW-001
Controller Dimensions: 325 X 270 X 180 Mm
Controller Weight: 9 Kg
Input Power: Single-phase AC220V +/-10%, 50Hz
Power Capacity: >=3.0 KVA
Output Voltage: DC 100V-240V
Operating Temperature: -30 To +40 Deg C
Relative Humidity: <=85%
Duty Cycle: Automatic 1:1 Work/rest, Max Continuous Exposure 5 Min
Highlight:

RD-2005 SF6 Gas Insulated Flaw Detector

,

50-200KVp Portable Radiography Generator

,

34kg Field Weld Inspection X-Ray
Basic Infomation
Place of Origin: Zhejiang, Hangzhou, China
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-2005
Payment & Shipping Terms
Packaging Details: Export-grade wooden case with shock-proof foam
Delivery Time: 7-15 working days after deposit
Payment Terms: T/T,L/C,Western Union,
Supply Ability: 100 Sets per Month
Product Description

Product Overview

The RD-2005 is a gas-insulated, portable X-ray radiography unit engineered for accurate internal-defect detection in metal structures and welded assemblies. Its 50~200 KVp generator pairs a 3 mA output with a 1.5 mm focal spot, producing radiographs with sensitivity better than 2% across steel thicknesses up to 25 mm.

Weighing about 34 kg with protective end rings, the tube head can be positioned upright or horizontally for flexible fieldwork, while the companion HW-001 console provides stepless kilovolt and exposure-time control. The result is dependable film radiography for inspection teams that need to move quickly between job sites.

Key Features

  • 50 ~ 200 KVp continuous output covering a wide range of steel thicknesses up to 25 mm.
  • SF6 gas-insulated tube head (220×220×560 mm, approx. 34 kg) built for transportable field inspection.
  • Stable 3 mA beam with ±1% regulation and film sensitivity better than 2%.
  • Anode-grounded radiator and forced-air cooling sustain long inspection sessions.
  • 45° ± 5° beam coverage with a 1.5 mm focal spot for crisp image detail.
  • HW-001 console with LED status display and stepless kilovolt / time adjustment.
  • Automatic tube training with discharge self-protection to extend tube life.
  • Safety-door interlock and over-temperature safeguards protect operators.
  • Modular circuitry and a removable cooling fan simplify maintenance.
  • Reinforced end rings protect the tube head and allow upright or horizontal placement.

Technical Specifications

Parameter Specification
Model RD-2005
X-ray Tube Voltage 50 ~ 200 KVp (continuously adjustable)
X-ray Tube Current 3 mA
Stability ± 1%
Focal Spot Size 1.5 mm
Radiation Angle 45° ± 5°
Working Pressure 0.45 MPa ~ 0.5 MPa
Cooling Method Anode-grounded radiator with forced air cooling
Insulation Method SF6 gas insulation
Generator Dimensions 220 mm × 220 mm × 560 mm
Generator Weight 15 kg
Maximum Penetration 25 mm (A3 steel)
Film Sensitivity Better than 2%
Controller Model HW-001
Controller Dimensions 325 mm × 270 mm × 180 mm
Controller Weight Approx. 8 kg
Input Power Single-phase AC 220 V ± 10%, 50 Hz
Power Capacity Not less than 3.0 KVA
Output Voltage DC 100 V - 240 V
Operating Temperature -30°C ~ +40°C
Relative Humidity ≤ 85%
Altitude ≤ 1500 m
Duty Cycle Automatic 1:1 work / rest; max. continuous exposure 5 minutes

Application Fields

Industry Typical Applications
Oil & Gas Radiographic checks on transmission pipelines, storage tanks and welded joints.
Pressure Vessels & Boilers Weld-seam radiography of vessels, boilers and heat exchangers.
Shipbuilding Hull structure and pipe weld inspection in shipyards.
Aerospace Non-destructive testing of critical components and castings.
Automotive & Casting Detection of internal defects in castings, alloy parts and assemblies.
Petrochemical & Power Inspection of refinery, chemical and power-plant piping and equipment.
Welding Engineering Weld quality inspection across general metal fabrication.
NDT Laboratories Portable radiography for testing labs and field service teams.

Company Introduction

Hangzhou Huiwei Nondestructive Testing Equipment Co., Ltd. designs and builds industrial X-ray radiography systems at its Fuyang (Hangzhou) facility, where dedicated R&D, taping and assembly lines operate under an ISO 9001 quality system.

The RD-2005 forms part of our portable flaw-detector series used by inspection teams in oil & gas, shipbuilding and heavy fabrication, and is supplied to distributors throughout Asia and beyond with full OEM / ODM support.

Address: Building A4, No. 255 Yangpingshan Road, Dayuan Town, Fuyang District, Hangzhou, Zhejiang, China | Tel: +86 571 8875 4564

Delivery Information

Item Details
Order Quantity From 1 set; wholesale tiers available for distributors
Unit Price USD 7,500 - 9,000 / Set (volume terms negotiable)
Settlement T/T, L/C, Western Union,
Monthly Output Up to 100 sets
Production Lead Time 7 - 15 working days after deposit
Export Packing Wooden case with shock-proof foam lining
Dispatch Port Ningbo / Shanghai, China
Freight Options Sea, air or express (DHL / FedEx / UPS)

Frequently Asked Questions (FAQ)

Question Answer
Manufacturer or trading company? We are the original manufacturer — Hangzhou Huiwei Nondestructive Testing Equipment Co., Ltd. — with our own production facility; OEM & ODM are both supported.
Is a single unit available for trial? Yes. A one-set trial order is welcome; larger distributor volume can be quoted at tiered wholesale rates.
How soon can delivery be arranged? Standard units ship within 7 - 15 working days after the deposit is received; special configurations are scheduled on a case-by-case basis.
What support is included after purchase? A 12-month warranty plus lifetime technical assistance is provided for every unit we ship.
Can Asian partners obtain distribution rights? Absolutely — we are actively appointing distributors across Asia, with territory protection and preferential pricing on offer.
Which standards and certifications apply? Production follows an ISO 9001 quality-management system and units are CE compliant.

Contact Us

Planning to add the RD-2005 to your range? Share your target market and volumes, and we will return a tailored quotation, datasheet and shipping plan within 24 hours.

Send your enquiry today — portable NDT radiography equipment, manufacturer pricing, worldwide delivery.
