Name: 50-180kv Portable NDT Radiography Equipment For Industrial Radiographic Testing
Brand: Hangzhou Huiwei Nondestructive Equipment Co.,Ltd,
SKU: RD-1803T
Price: 6000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Film Type: Any Kinds Of Industrial Film

Voltage: 50-180kv

Exposure Time: 5 Minutes

Name: NDT Industrial X-ray Machine

Tube Current: 3mA

ControllerWeight: 12kg

Focus Spot: 0.9*0.9

Generator Weight: 12kg

Storage Temperature: -20°C To 60°C

Focal Spot Size: 0.8 Mm

Weight: Less Than 20 Kg

Image Receptor: Digital Detector Array (DDA)

Power Source: Battery Or AC Power

Dimensions: 40 Cm X 30 Cm X 20 Cm

Maximum Output Current: 10 MA

Type: Portable X-ray System

Operating Temperature: 0°C To 40°C

Maximum Output Voltage: 100 KV

Highlight:

180kv NDT Radiography Equipment

50kv NDT Radiography Equipment

3mA portable x ray flaw detector

Basic Infomation

Place of Origin: ZHEJIANG, CHINA

Brand Name: HUIWEI

Certification: ISO 9001, CE

Model Number: RD-1803T

Payment & Shipping Terms

Packaging Details: Standard export plywood package

Delivery Time: 15working days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 500sets within one month

Gallery

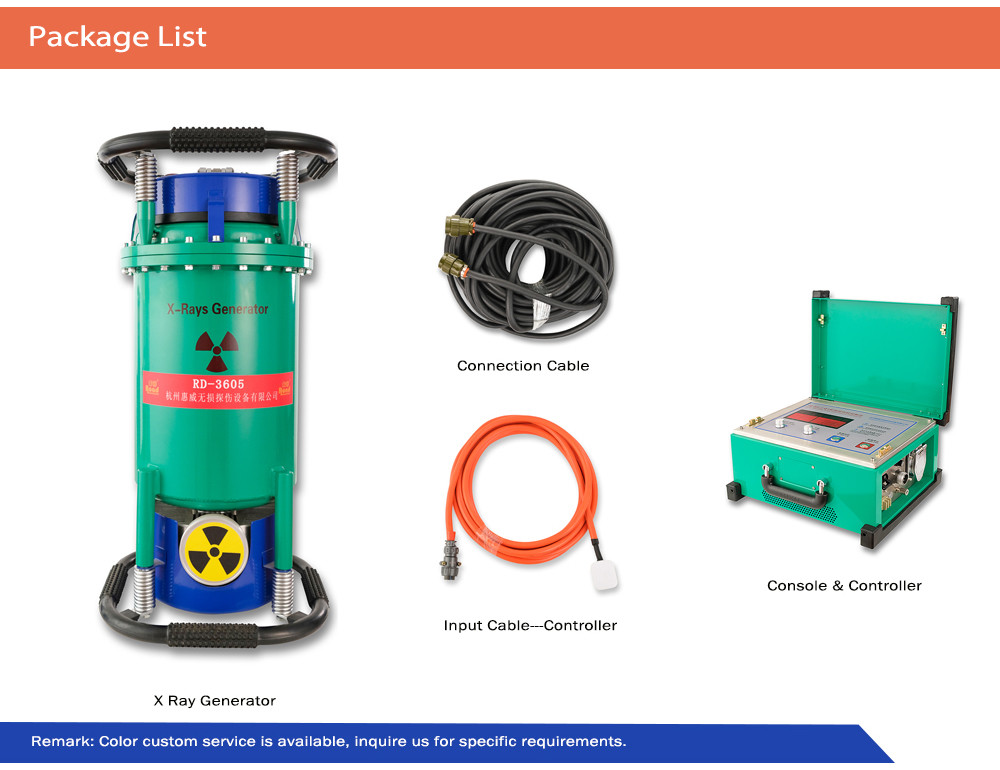

50-180kv Portable NDT Radiography Equipment For Industrial Radiographic Testing

Product Description

PRODUCT DESCRIPTION

Factory Price High Precision Portable Radiographic Testing (RT) Portable Industrial X-ray Machine RD-1803TH

Main introduction:

We are professinoal production of ceramic X ray tube.We can design and manufacture of various specification of X ray ceramic tube according to customer demands.

RD - 1803 represents a cutting - edge industrial X - ray device featuring an innovative design philosophy. This product boasts a compact size, lightweight build, along with reliability and durability. It has a rational internal structure and for the first time employs imported high - power components, equipped with a robust system protection function. It is applicable to power plants, chemical plants, aircraft manufacturing plants, boiler and pressure vessel manufacturing, aluminum tubes, aluminum sheets, and other scenarios, suitable for installation, maintenance, and non - destructive testing in confined spaces. The equipment is highly portable, with the generator weighing merely 12kg and an exquisite design. This series of equipment is categorized into directional and circumferential types, having a radiation angle of 40±5° and 360° respectively, and the maximum penetration thickness for A3 steel is 20mm.

Speed control to achieve the slow starting and low-speed positioning,magnetic position system tell the crawler's position and status through the beep sound .
Performing without affected by the electric welding machine.
Constant voltage control ensure X-ray film density consistent ,not impacted by low energy also save energy and protect the motor from over current.

RD-1803TH the technical parameters

	Project	RD-1803TH
input	Input power	Single-phase 50Hz AC 220± 10% V
	Power supply capacity	No less than 2.0 KVA
output	X - ray tube voltage	50~ 180 KVp
	X ray tube current	3mA
	mA Stability degree	± 1%
Ray tube	Focal size	1.0× 2.0
	X-ray irradiation range	360°
Ray generator	working pressure Cooling mode Insulation way	0.45MPa ~ 0.5Mpa Anode ground connection radiator Strong wind cold Gas insulation SF6
	Size weight (kg)	Φ210×590
		12
Maximum penetration	Thickness steel A3(mm)	20 mm (5 min)
	condition	focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
	sensitivity	superior 2%
controller	Size weight Circuit	325×270×180 < 9(kg) Automatic control and protection
Environment	working temperature relative humidity Altitude	-30°~ +40° Not more than 85% Not higher 1500m
methods	fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
