Portable Radiographic Testing (RT) Portable Industrial X-ray Machine For Pressure Vessel Fabrication
Main introduction:

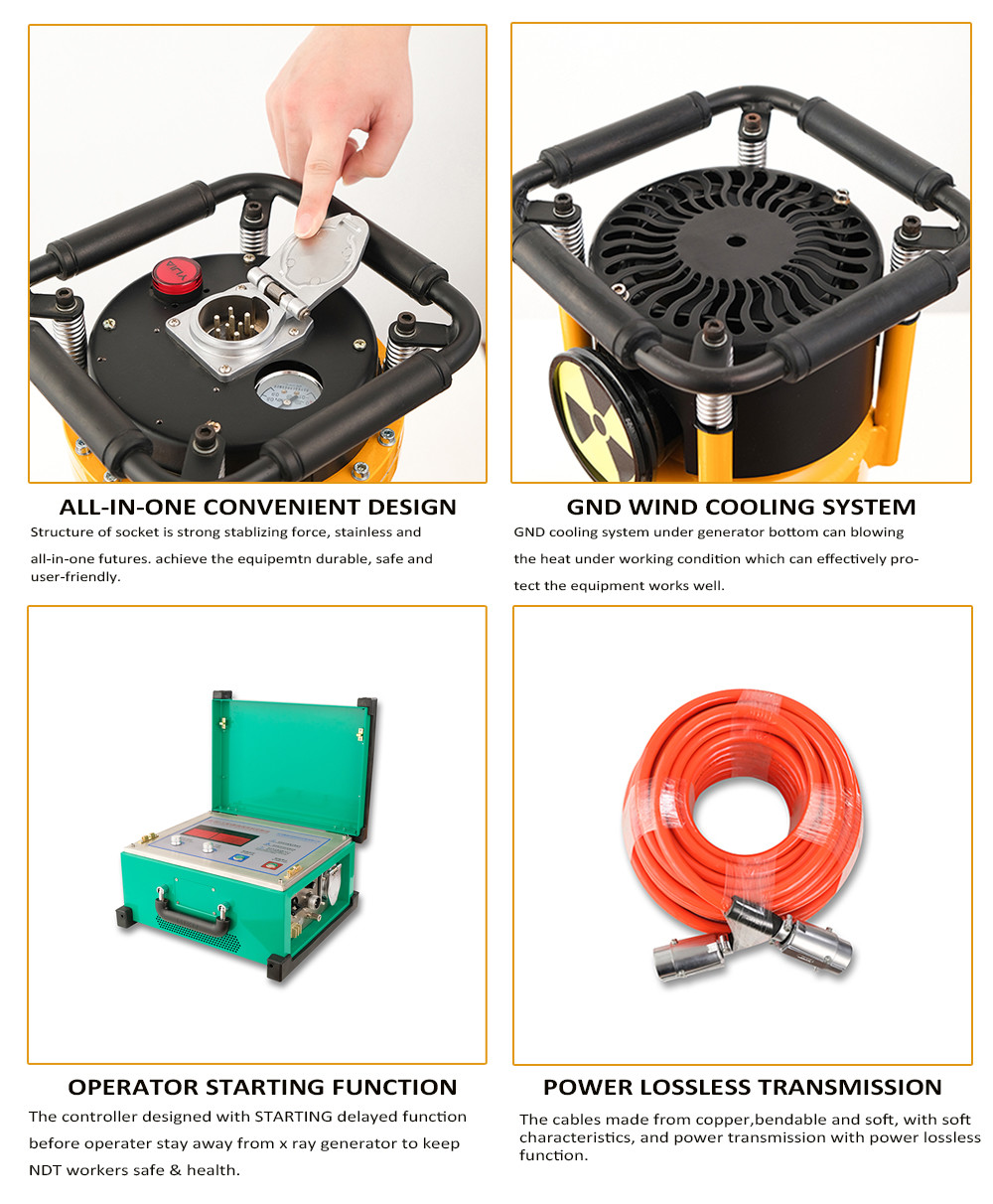

RD-1803 stands as an innovative industrial X-ray apparatus embodying a revolutionary design philosophy. Characterized by its compact footprint, lightweight construction, and robust durability, this product features a logically optimized internal architecture. It pioneers the use of imported high-power components, integrated with a sophisticated system protection mechanism.
Ideal for applications in power plants, chemical facilities, aerospace manufacturing, boiler & pressure vessel fabrication, and aluminum tubing/sheet production, it excels in installation, maintenance, and non-destructive testing within confined spaces. The equipment offers exceptional portability, with the generator weighing a mere 12kg and showcasing a sleek, refined design.
This series comprises directional and circumferential models, delivering radiation angles of 40±5° and 360° respectively. It achieves a maximum penetration depth of 20mm through A3 steel, setting a benchmark for precision and performance in industrial radiography.
RD-1803TH the technical parameters
|
|
Project
|
RD-1803TH
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
50~ 180 KVp
|
|
|
X ray tube current
|
3mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
1.0× 2.0
|
|
|
X-ray irradiation range
|
360°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ210×590
|
|
|
|
12
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
20 mm (5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins
|
