Home /Products/NDT Radiography Equipment/High Precision Portable Radiographic Testing Equipment Industrial NDT X Ray With Ceramic Tubes

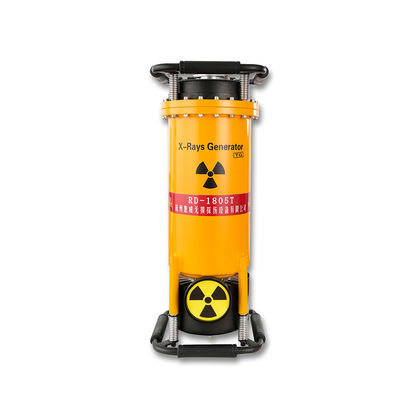

High Precision Portable Radiographic Testing Equipment Industrial NDT X Ray With Ceramic Tubes

1 set
MOQ
6000usd/set
Price
High Precision Portable Radiographic Testing Equipment Industrial NDT X Ray With Ceramic Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: AC220V±10%
Warranty: 12 Months
Application: Industrial Field
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 20mm(A3 STEEL)
Function: Steel Defect,NDT Inspection Welding
Voltage: 50-180kv
Exposure Time: 5 Minutes
Name: NDT Industrial X-ray Machine
Film Type: Any Kinds Of Industrial Film
ControllerWeight: 12kg
Focus Spot: 0.9*0.9
Tube Current: 3mA
Generator Weight: 12kg
Highlight:

High Precision radiographic testing equipment

,

Portable radiographic testing equipment

,

Industrial ndt x ray inspection system
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-1803T
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

              PRODUCT DESCRIPTION

Factory Price High Precision Portable  Radiographic Testing (RT) Portable Industrial X-ray Machine With Ceramic Tubes



Main introduction:
We specialize in manufacturing ceramic X-ray tubes, capable of designing and producing various specifications of X-ray ceramic tubes tailored to customer requirements.
The speed control system enables gradual start-up and low-speed positioning, while the magnetic positioning system transmits the crawler's location and status via audible beeps.
Operation remains unaffected by electric welding machines.
Constant voltage control ensures consistent X-ray film density, unaffected by low-energy conditions. It also saves energy and protects the motor from overcurrent.

RD-1803TH the technical parameters



Project

RD-1803TH

input

Input power

Single-phase  50Hz AC 220± 10% V



Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

50~ 180 KVp



X ray tube current

3mA



mA Stability degree

± 1%

Ray tube

Focal size

1.0× 2.0



X-ray irradiation range

360°

Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

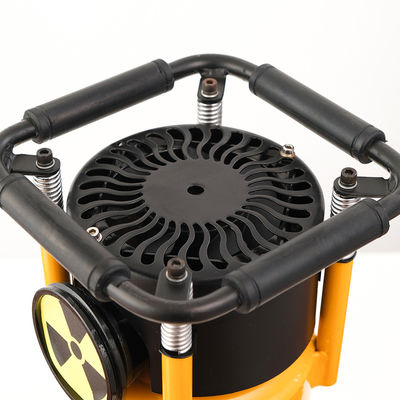

Anode ground connection radiator Strong wind cold

Gas insulation SF6



Size

weight (kg)

Φ210×590





12

Maximum penetration

Thickness steel A3(mm)

20 mm (5 min)



condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
