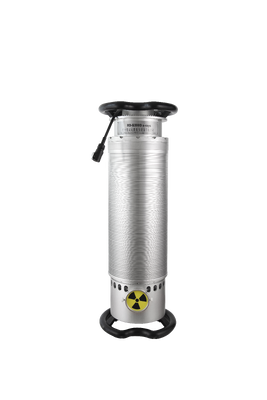

RD-G300D Directional 300kV High Frequency DC X Ray Flaw Detector 55mm Steel Penetration for Portable NDT Radiography

Engineered for Inspection Companies That Bill by the Shot

Third-party NDT service providers win projects on throughput, field reliability and cost per radiograph. RD-G300D was designed on all three. Its high-frequency DC constant-voltage generator keeps output ripple within ±1%, producing stable 30-300kV exposures with short exposure times — fewer retakes, sharper films, faster job completion on site.

The directional tube head radiates a 45°±5° beam and penetrates 75mm of steel (600mm FFD, 5 min, density ≥1.5) — enough for girth welds, storage tank seams and pressure vessel joints. Each exposure can run up to 30 minutes with a built-in 4:1 work-rest manager and full over-temperature protection, so the unit watches its own duty cycle while your crew keeps working.

Key Features

Project Track Record

HUIWEI X-ray systems are trusted on critical energy infrastructure projects, including:

PipeChina National Pipeline Network field weld radiography on long-distance oil & gas pipelines

Asian Games Zero-Carbon Methanol Pipeline pipeline safety inspection for the main torch fuel supply system

Technical Parameters

Standard Configuration

Optional on request: delayed exposure timer, remote switch, DR flat panel detector, cloud / mobile APP monitoring, custom cable length.

After-Sales Service

Delivery & Business Terms

About HUIWEI

Hangzhou Huiwei NDT Equipment Co., Ltd. (est. 1993) is a national high-tech enterprise specialized in portable industrial X-ray inspection equipment, with a 12,000 m² manufacturing base, joint R&D center with China Jiliang University and 31 patents & software copyrights. The RD-G series high-frequency DC X-ray flaw detector line itself carries 10 patents. HUIWEI systems are used by national oil & gas pipeline operators and major EPC contractors worldwide.
