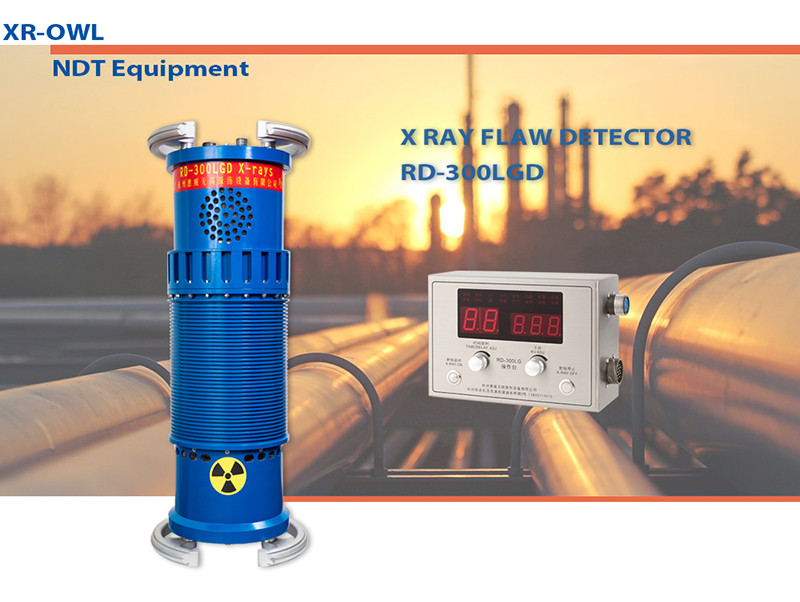

30-300kv Industrial Portable Weld X Ray Machine Spaceflight Industry

1 set
MOQ
40000usd/set
Price
30-300kv Industrial Portable Weld X Ray Machine Spaceflight Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial X Ray Testing Xxg3005,x-ray Welding Machine Ndt,X-ray Inspection Systems,NDT Industrial Film Processing Machine,industrial NDT Equipment NDT X Ray Testing Machine
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 80mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 30-300kv
Exposure Time: 30 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 1-3mA
Weight: 30kg
Focus Spot: 2.5*2.5
Generator Weight: 30kg
Highlight:

300kv portable weld x ray machine

,

30kv portable weld x ray machine

,

Spaceflight Industry radiographic testing equipment
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-300LG
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

       Industrial NDT X-ray Radiographic System NDT Inspection Industrial X-ray Machines  RD-360LGD



Main introduction:

Technical background
With the continuous expansion of the depth and breadth of industrial manufacturing in China, there are many industrial products with large wall thickness and focal length that urgently need radiographic testing for butt
welds. Traditional X-ray machines can no longer meet the needs of such radiographic testing. RD-360LG is developed in the context of promoting the implementation of China's 2025 Manufacturing Power Strategy Action
Plan.
Huiwei always adheres to the core concept of creating internationally competitive products. After continuous research and development, the RD-360LG industrial X-ray machine with durability and strong energy has
emerged. This product is the result of our company's 30 years of technical experience and has successfully completed a 360KV X-ray machine that can continuously work and expose, with a maximumpenetration capacity of 80mm thick (Q235 steel). As the flagship model of Huiwei Company with high energy, it provides the optimal solution for the problem of large wall thickness and large focal length in non-destructivetesting of special equipment in China. It can replace the application scenarios of some radiation sources Y192, solve the problems caused by
radiation source movement and application management, and bring value to non-destructive testing institutions in cost reduction, efficiency enhancement, and risk control during the testing process. We believe that RD-360LG will also occupy a place in the world of non-destructive testing.
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.





RD-360LG Technical Parameter

model RD-360LGD RD-360LGP
Outgoing wiring harness directional radiation Circumferential radiation
Input power supply AC22V±10%
Maximum transmittance (mm) steel 80mm(steel) 70mm(steel)
High voltage range (kV) 200-360 200-360
Tube current (mA) 5 5
Focus size (mm) 3.0x3.0 1.0x3.0
Shooting angle 45±5° 360°
Generator size Φ350x770 Φ350x770
Generator weight (Kg) 42 40
operation mode 3:1Continuous exposure rest



FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: How about the quality?
A2: We have the best professional engineer and strict QA and QC system.

Q3: How’s the package?
A3: Normally are standard wooden cases, but also we can pack it according to your requirements.

Q4: What is your delivery time?
A4: The lead time is 7-30 days, depending on the type of the product, shipping method selected and part availability.

Q5: What about after-sale service?
A5: All products have 12-month warranty. We will provide the technical advice and find the solution immediately for our customers when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q6: How to get the free quotation and solution advice?
A6: Please kindly send us your inquiry via message or email, our sales manager will contact you within 24 hours.
