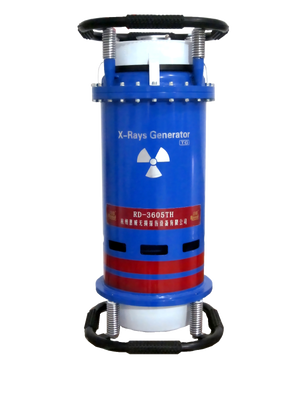

RD-3605 360kV Portable Industrial X Ray Flaw Detector 55mm Steel Penetration for Middle East Pipeline Weld NDT

1 Set
MOQ
USD 10000-12000 / Set
Price
RD-3605 360kV Portable Industrial X Ray Flaw Detector 55mm Steel Penetration for Middle East Pipeline Weld NDT
Features Gallery Product Description Chat Now
Features
Specifications
Product Type: Portable Industrial X-ray Flaw Detector, SF6 Gas Insulated
Tube Voltage Range: 200-360 KVp
Tube Current: 5 MA (stability +/-1%)
Focal Spot Size: 3.0 X 3.0 Mm
Radiation Angle: 40 +/-5 Deg
Max Steel Penetration: 55 Mm A3 Steel (5 Min Exposure)
Film Density: >= 2.0
Image Sensitivity: Better Than 2%
Insulation: SF6 Gas Insulated, Working Pressure 0.45-0.5 MPa
Cooling: Anode Grounded Radiator With Forced Air Cooling
Work Rest Cycle: Fully Automatic 2.5:1, Max 15 Min Continuous Exposure
Controller Input: Single Phase AC 220V +/-10%, 50Hz, >=3.0 KVA
Output Voltage: DC 100-240 V Continuously Adjustable
Protections: MA/kV Real-time Protection, Discharge Auto-detection, Over-temperature, Safety Door Interlock, Auto Training Mode
Generator Size / Weight: 320 X 320 X 640 Mm / 34 Kg
Controller Size / Weight: 325 X 270 X 180 Mm / <9 Kg
Operating Condition: -30 To +40 Deg C, Humidity <=85%, Altitude <=1500 M
Warranty: 12 Months
Application: High-energy Weld Radiography For Middle East Inspection/NDT Service Companies, Plant QC, Thick-wall Pipeline, Pressure Vessel And Heavy Steel Structure Testing
Highlight:

360kV Portable X Ray Flaw Detector

,

55mm A3 Steel Penetration NDT

,

SF6 Gas Insulated X Ray Machine
Basic Infomation
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: HUIWEI
Certification: CE, ISO 9001
Model Number: RD-3605
Payment & Shipping Terms
Packaging Details: Standard export-grade wooden case with shock-proof foam; generator 34kg + controller <9kg
Delivery Time: 15-25 working days after deposit
Payment Terms: T/T, L/C, Western Union, PayPal
Supply Ability: 100 Sets per Month
Product Description

RD-3605 — 360kV Portable Industrial X-Ray Flaw Detector

Maximum energy. Deeper penetration. Built for the toughest field conditions.


Why the RD-3605 Stands Out

360 kVp maximum tube voltage
The highest energy class in the HUIWEI portable range — penetrate dense, thick and large-section materials that lower-voltage units simply cannot reach.
55 mm A3 steel penetration
Deep radiographic coverage for heavy-wall pipelines, pressure vessels and structural steel, with image sensitivity better than 2%.
2.5:1 automatic work/rest cycle
Longer working ratio than standard 4:1 units — up to 15 minutes of continuous exposure for uninterrupted, high-throughput inspection.
SF6 gas insulation & anode-grounded air cooling
Stable performance under high ambient temperatures — an ideal match for the hot, dusty climates of the Middle East.
Field-ready by design
3.0 × 3.0 mm focal spot, 40° radiation angle, 34 kg generator, tool-free fan cleaning and clear fault-code diagnostics for on-site servicing.

Product Highlights

  • 200–360 kVp variable tube voltage with industrial stepless-knob adjustment.
  • 5 mA tube current with ±1% stability for consistent film quality.
  • Fully automatic tube training mode with discharge auto step-down to extend X-ray tube life.
  • Complete protection suite: mA over/under, kV over/under, discharge auto-detection, over-temperature (HT) and safety-door interlock (SD).
  • Delayed exposure timer and automatic memory of last settings after power-off.
  • MIXN-series expert intelligent control system with high-strength anti-interference design.

Technical Specifications

X-Ray Generator — RD-3605
X-ray tube voltage200–360 kVp (continuously adjustable)
X-ray tube current5 mA
Stability±1%
Focal spot size3.0 × 3.0 mm
Radiation angle40 ±5°
Max penetration (A3 steel)55 mm (5 min exposure)
Film density≥ 2.0
SensitivityBetter than 2%
InsulationSF6 gas insulated
Working pressure0.45–0.5 MPa
CoolingAnode-grounded radiator, forced air cooling
Generator size / weightΦ320 × 320 × 640 mm / 34 kg
Intelligent Controller (HW-001)
Input powerSingle-phase 50 Hz AC 220±10% V
Power capacity≥ 3.0 kVA
Output voltageDC 100–240 V (continuously adjustable)
Control methodAdaptive chopper variable-frequency control
ProtectionmA over/under, kV over/under, discharge auto-detection
Duty cycleFully automatic 2.5:1 work/rest, max 15 min continuous exposure
Controller size / weight325 × 270 × 180 mm / < 9 kg
Environment
Operating temperature-30°C to +40°C
Relative humidity≤ 85%
Altitude≤ 1500 m

Where the RD-3605 Delivers

Application AreaTypical Radiographic Testing Use
Middle East Oil & Gas PipelinesGirth and butt weld inspection of high-pressure and long-distance transmission pipelines
Third-Party NDT / Inspection ServicesOn-site radiographic testing for client certification, audits and acceptance
Pressure Vessels & BoilersLongitudinal and circumferential weld radiography of heavy-wall vessels
Petrochemical & RefiningReactor, heat-exchanger and thick process piping weld inspection
Power GenerationSteam pipe, header and turbine component weld testing
Heavy Steel StructuresStructural weld radiographic testing of large steel fabrications
Aerospace & DefenseStructural and precision casting internal defect inspection
End-User Plant Quality ControlIn-house weld and casting QC for fabrication plants

Company Introduction

Company NameHangzhou Huiwei Nondestructive Testing Equipment Co., Ltd.
Founded1993 — located in Fuyang District, Hangzhou, Zhejiang, China
Business TypeManufacturer integrating R&D, production and sales of industrial X-ray equipment
HonorsNational High & New Technology Enterprise (HNTE); Zhejiang Provincial Specialized & Innovative (SRUI) SME
FacilitiesSelf-built 12,000 m² R&D and manufacturing campus; joint R&D center with China Jiliang University
Innovation23 patents & software copyrights; participant in national (GB) and industry standards compilation
Milestones2016 RD-300LG series (99-min continuous exposure); 2018 high-frequency DC X-ray machine; 2025 300kV industrial DR system; 2026 industrial CT 3D imaging systems
MarketsProducts widely used in oil & gas pipelines, boilers & pressure vessels, chemical, aerospace
CooperationLong-term strategic cooperation with major enterprises including PetroChina, Sinopec and aerospace special equipment corporations
ContactTel: +86 571 88754564

Delivery Information

PriceUSD 10,000–12,000 / Set
Minimum Order Quantity1 Set
Payment TermsT/T, L/C, Western Union, PayPal
Supply Ability100 Sets per month
Delivery Time15–25 working days after deposit confirmation
PackagingStandard export-grade wooden case with shock-proof foam; generator 34 kg + controller <9 kg
ShippingFOB Shanghai / Ningbo, or by air / sea / express as required (Middle East ports supported)
Standard PackageX-ray generator ×1, intelligent controller ×1, control cable, power cable, spare fuses, user manual, warranty card, certificate of conformity

Frequently Asked Questions

Q: Can it handle the heat and dust of Middle East sites?A: Yes. The SF6 gas insulation and forced-air cooling keep the unit stable in high ambient temperatures, and the rugged, dust-cleanable housing suits demanding field conditions.
Q: How thick can it penetrate?A: Up to 55 mm A3 steel at 5-minute exposure, driven by its 200–360 kVp high-energy tube.
Q: Is it good for inspection / NDT service companies?A: Yes — the 2.5:1 work/rest cycle and 15-minute continuous exposure support high-throughput field inspection work.
Q: Are you a manufacturer?A: Yes, a National High & New Technology Enterprise founded in 1993, with 12,000 m² of R&D and manufacturing facilities.
Q: What is the MOQ and price?A: MOQ is 1 set; price is USD 10,000–12,000 per set depending on configuration.
Q: What is the warranty and support?A: 12-month warranty on generator and controller with lifetime maintenance, plus OEM/ODM and operator training.

Looking for a high-energy X-ray flaw detector for Middle East projects? Contact us today for a detailed RD-3605 quotation.
