RT Detector Magnetic Flaw Detector Rechargeable AC/DC NDT Test Equipment

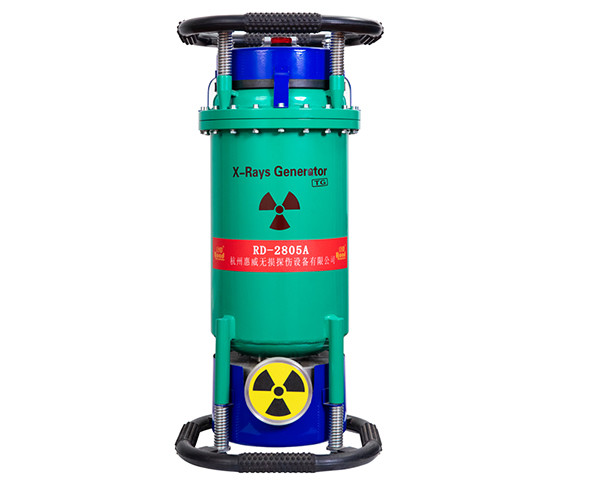

RD-2805 is an X-ray machine integrated with an automated intelligent training system for machine control. A standout feature of this device is its exceptional anti-interference capability. It operates in a continuous 4:1 duty cycle exposure mode, with a maximum single exposure time capped at 15 minutes. This product line is available in two configurations: directional and circumferential radiation models. The directional variant emits radiation within a 40 ± 5° angle, while the circumferential model provides 360° coverage. Both versions boast a remarkable penetration capacity, capable of passing through up to 45mm of A3 steel.
Designed for portability, this series features a compact form factor and lightweight construction—its generator unit weighs just 26kg—paired with strong penetration performance and reliable stability. It has established itself as a go-to solution for field and aerial inspection tasks.
Primary applications span across defense, shipbuilding, petroleum, chemical, machinery, aerospace, and construction industries. It is utilized by industrial sectors to assess processing and welding integrity in hulls, pipelines, high-pressure vessels, boilers, aircraft, vehicles, bridges, and other structural components or parts. Additionally, it aids in detecting internal defects and verifying manufacturing quality of various light metals, rubber, ceramics, and similar materials.
RD-2805TH technical parameters
|
|
Project
|
RD-2805TH
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
150-280 KVp
|
|
X ray tube current
|
5mA
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
1.0× 2.4
|
|
X-ray irradiation range
|
360°*25°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
Size
weight (kg)
|
Φ280mm´280mm´620mm
|
|
27
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
40 mm Fe(5 min)
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins
|
FAQ
1. Is your Company the Manufacturer or a Trading Company?
We are a manufacturer of NDT x ray equipment in China with experience engineer working over 30 years.
2. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.
3. Do you have any products that approved by ISO or CE?
Yes, all of our products were strictly approved by ISO and CE, and our HUIWEI products can be imported to the overseas market.
