RD-3505 350kV SF6 Insulated Portable Industrial X Ray Flaw Detector 55mm Steel Penetration for Heavy Section Weld NDT

1 Set
MOQ
USD 10000-12000 / Set
Price
RD-3505 350kV SF6 Insulated Portable Industrial X Ray Flaw Detector 55mm Steel Penetration for Heavy Section Weld NDT
Features Gallery Product Description Chat Now
Features
Specifications
Product Type: Portable Industrial X-ray Flaw Detector, SF6 Gas Insulated
Tube Voltage Range: 200-350 KVp
Tube Current: 5 MA (stability +/-1%)
Focal Spot Size: 3.0 X 3.0mm
Radiation Angle: 40 +/-5 Deg
Max Steel Penetration: 55 Mm A3 Steel (5 Min Exposure)
Image Sensitivity: Better Than 2%
Insulation: SF6 Gas Insulated, Working Pressure 0.45-0.5 MPa
Cooling: Anode Grounded Radiator With Forced Air Cooling
Work Rest Cycle: Fully Automatic 2.5:1, Max 15 Min Continuous Exposure
Controller Input: Single Phase AC 220V +/-10%, 50Hz, >=3.0 KVA
Output Voltage: DC 100-240 V Continuously Adjustable
Protections: MA/kV Real-time Protection, Discharge Auto-detection, Over-temperature, Safety Door Interlock, Auto Training Mode
Generator Size / Weight: 320 X 320 X 640 Mm / 34 Kg
Controller Size / Weight: 325 X 270 X 180 Mm / <9 Kg
Operating Condition: -30 To +40 Deg C, Humidity <=85%, Altitude <=1500 M
Warranty: 12 Months
Application: Thick-wall Weld Radiography For Inspection/NDT Service Companies, Plant QC, High-pressure Pipeline, Pressure Vessel And Heavy Steel Structure Testing
Highlight:

350kV Portable X Ray Flaw Detector

,

55mm A3 Steel Penetration NDT

,

SF6 Gas Insulated Radiography Unit
Basic Infomation
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: HUIWEI
Certification: CE, ISO 9001
Model Number: RD-3505
Payment & Shipping Terms
Packaging Details: Standard export-grade wooden case with shock-proof foam; generator 34kg + controller <9kg
Delivery Time: 15-25 working days after deposit
Payment Terms: T/T, L/C, Western Union, PayPal
Supply Ability: 100 Sets per Month
Product Description

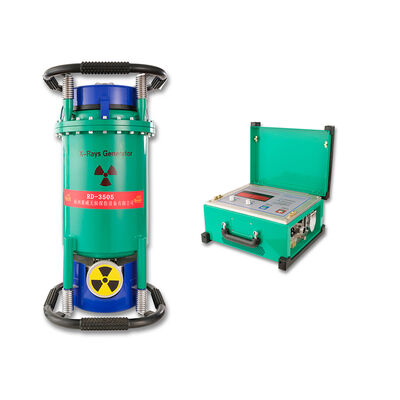

RD-3505 350kV Portable Industrial X-Ray Flaw Detector

High-Energy Radiography for Thick-Wall and Heavy-Section Weld Inspection

When weld quality cannot be compromised, the RD-3505 delivers. Built by Hangzhou Huiwei Nondestructive Testing Equipment Co., Ltd. (est. 1993), this SF6 gas-insulated portable X-ray flaw detector pushes a tube voltage of 200–350 kVp to penetrate up to 55 mm of A3 steel — making it the go-to choice for thick-wall pipelines, heavy steel structures and pressure vessels. Its dependable 4:1 automatic work/rest cycle keeps inspectors productive through long on-site shifts, so whether you are an end-user plant QC team or a third-party NDT inspection company, the RD-3505 gives you radiographic certainty where it matters most.

Product Features

  • 200–350 kVp high-energy tube for deep, high-contrast radiography of thick and dense materials.
  • Up to 55 mm A3 steel penetration (5 min exposure) — outstanding performance on heavy-section welds.
  • Image sensitivity better than 2% for reliable defect detection and code-compliant film quality.
  • SF6 gas insulation with anode-grounded aluminum heat sink and forced-air cooling for stable long-shift use.
  • Fully automatic 4:1 work/rest cycle with up to 15 minutes continuous exposure — built for inspection firms running consecutive jobs.
  • 3.0 × 3.0 mm focal spot and 40° ±5° radiation angle for efficient film coverage.
  • MIXN-series expert intelligent control system with high-strength anti-interference design for harsh field environments.
  • Fully automatic tube training mode with discharge auto step-down to protect X-ray tube life.
  • Complete protection suite: mA over/under, kV over/under, discharge auto-detection, over-temperature (HT) and safety-door interlock (SD).
  • Delayed exposure timer and automatic memory of last settings after power-off.
  • Field-service friendly: tool-free dust-cleanable cooling fan, rubber shock-corner housing, side status light, clear fault-code diagnostics (LA / SD / HT / PE / HH).
  • Compact and portable: generator Φ320×640 mm / 34 kg, controller 325×270×180 mm / <9 kg.

Technical Specifications

X-Ray Generator — RD-3505
X-ray tube voltage200–350 kVp (continuously adjustable)
X-ray tube current5 mA
mA stability±1%
Focal spot size3.0 × 3.0mm
Radiation angle40 ±5°
Max penetration (A3 steel)55 mm (5 min exposure)
SensitivityBetter than 2%
InsulationSF6 gas insulated
Working pressure0.45–0.5 MPa
CoolingAnode-grounded radiator, forced air cooling
Generator size / weightΦ320 × 640 mm / 34 kg
Intelligent Controller (HW-001)
Input powerSingle-phase 50 Hz AC 220±10% V
Power capacity≥ 3.0 kVA
Output voltageDC 100–240 V (continuously adjustable)
Control methodAdaptive chopper variable-frequency control
ProtectionmA over/under, kV over/under, discharge auto-detection
Duty cycleFully automatic 4:1 work/rest, max 15 min continuous exposure
Controller size / weight325 × 270 × 180 mm / < 9 kg
Environment
Operating temperature-30°C to +40°C
Relative humidity≤ 85%
Altitude≤ 1500 m

Application Fields

Application AreaTypical Radiographic Testing Use
Thick-Wall Oil & Gas PipelineGirth and butt weld inspection of high-pressure transmission pipelines
Third-Party NDT / Inspection ServicesOn-site radiographic testing for client certification and audits
Pressure Vessels & BoilersLongitudinal and circumferential weld radiography of heavy-wall vessels
Petrochemical PlantsReactor, heat-exchanger and thick process piping weld inspection
Power GenerationSteam pipe, header and turbine component weld testing
Heavy Steel Structures & BridgeStructural weld radiographic testing of large steel fabrications
ShipbuildingHull, deck and pipe weld flaw detection
Aerospace & DefenseStructural and precision casting internal defect inspection
End-User Plant Quality ControlIn-house weld and casting QC for fabrication plants

Company Introduction

Company NameHangzhou Huiwei Nondestructive Testing Equipment Co., Ltd.
Year Established1993 (30+ years dedicated to NDT equipment)
Business TypeManufacturer & Distributor / Wholesaler
Employees50–500 staff
Annual SalesRMB 10–50 million
Export Ratio60%–70% of output exported worldwide
Main ProductsPortable industrial X-ray flaw detectors, radiographic NDT systems, intelligent controllers and accessories
AddressNo.3 Miaochangqiao Road, Liangzhu Street, Yuhang District, Hangzhou, Zhejiang, China
Tel+86 571 88754564

Delivery Information

PriceUSD 10,000–12,000 / Set
Minimum Order Quantity1 Set
Payment TermsT/T, L/C, Western Union, PayPal
Supply Ability100 Sets per month
Delivery Time15–25 working days after deposit confirmation
PackagingStandard export-grade wooden case with shock-proof foam; generator 34 kg + controller <9 kg
ShippingFOB Shanghai / Ningbo, or by air / express as required
Standard PackageX-ray generator ×1, intelligent controller ×1, 25 m control cable, 5 m power cable, 10 spare fuses, user manual, warranty card, certificate of conformity

Frequently Asked Questions

Q: How thick can this unit penetrate?A: Up to 55 mm A3 steel at 5-minute exposure, powered by a 200–350 kVp high-energy tube.
Q: Is it suitable for inspection / NDT service companies?A: Absolutely — the automatic 4:1 work/rest cycle and 15-minute continuous exposure are designed for back-to-back field jobs.
Q: Are you a manufacturer?A: Yes, a direct manufacturer established in 1993 with 30+ years of NDT equipment expertise.
Q: What is the minimum order quantity and price?A: MOQ is 1 set; price is USD 10,000–12,000 per set depending on configuration.
Q: What is the warranty?A: 12-month warranty on generator and controller, with lifetime maintenance support.
Q: How long is the delivery time?A: Normally 15–25 working days after deposit confirmation.
Q: Do you support OEM / ODM and operator training?A: Yes. We offer OEM/ODM branding plus operation and maintenance training for end users and inspection teams.

Need deep-penetration radiography for heavy-section welds? Contact us today for a detailed RD-3505 quotation.
