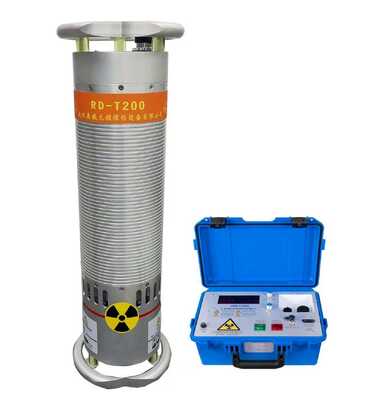

RD-T200 Portable Industrial X-Ray Flaw Detector 200KV 3mA NDT Inspection Equipment

1 Set
MOQ
USD 4000-5500 / Set
Price
RD-T200 Portable Industrial X-Ray Flaw Detector 200KV 3mA NDT Inspection Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Model: RD-T200
X-ray Tube Voltage: 100~200 KVp
X-ray Tube Current: 3 MA
Focal Spot Size: 1.5*1.5 Mm
Working Pressure: 0.45-0.5 MPa
Cooling Method: Anode-grounded Radiator, Strong Air Cooling
Insulation Method: SF6 Gas Insulation
Generator Dimensions: 200 X 635 Mm (incl. End Rings)
Generator Weight: 15 Kg
Max Penetration: 25 Mm (A3 Steel)
Film Sensitivity: Better Than 2%
Controller Dimensions: 350 X 265 X 200 Mm
Controller Weight: 7.2 Kg
Input Power: AC220V +/-10%, 50Hz
Power Capacity: >=2.0 KVA
Operating Temperature: -30 To +40 Deg C
Relative Humidity: <=85%
Altitude: <=1500 M
Duty Cycle: Automatic 1:1 Work/rest, Max Continuous Exposure 5 Min
Highlight:

Portable Industrial X-Ray Flaw Detector

,

200KV SF6 Insulated X-Ray Generator

,

NDT Weld Inspection Equipment
Basic Infomation
Place of Origin: Zhejiang, Hangzhou, China
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-T200
Payment & Shipping Terms
Packaging Details: Export-grade wooden case with shock-proof foam
Delivery Time: 7-15 working days after deposit
Payment Terms: T/T,L/C,Western Union,
Supply Ability: 100 Sets per Month
Product Description

Product Overview

The RD-T200 Ultra-small Portable Industrial X-Ray Flaw Detector is a gas-insulated NDT radiography system engineered for the non-destructive testing of welds, castings and thin-to-medium steel structures. With an adjustable tube voltage of 100~200 KVp and a 3 mA tube current, it delivers clear, high-contrast radiographic images for dependable defect detection both on site and in the workshop.

Built around an SF6 gas-insulated generator and a strong forced-air-cooling system, the RD-T200 balances penetrating power with an ultra-light, portable design — making it an ideal choice for distributors across the Asian market serving the NDT, oil & gas, shipbuilding and general manufacturing industries.

Key Features

  • 100 ~ 200 KVp tube voltage and 3 mA tube current for steel sections up to 25 mm.
  • SF6 gas-insulated, ultra-small generator weighing only about 15 kg for easy field transport.
  • High mA stability (±1%) and film sensitivity better than 2% for consistent radiographic quality.
  • Anode-grounded radiator with strong forced air cooling for reliable long-time operation.
  • 45° ± 5° radiation angle with a 1.5 *1.5mm focal spot.
  • Intelligent HW200G controller with LED status display and stepless kV / time adjustment knobs.
  • Fully automatic training mode with discharge self-voltage protection and automatic time follow-up.
  • Safety-door interlock terminal and over-temperature protection for operator safety.
  • Protective end rings allow upright or horizontal placement and protect the tube during transport.

Technical Specifications

Parameter Specification
Model RD-T200
X-ray Tube Voltage 100 ~ 200 KVp (continuously adjustable)
X-ray Tube Current 3 mA
mA Stability ± 1%
Focal Spot Size 1.5 *1.5mm
Radiation Angle 45° ± 5°
Working Pressure 0.45 MPa ~ 0.5 MPa
Cooling Method Anode-grounded radiator, strong air cooling
Insulation Method SF6 gas insulation
Generator Dimensions 200 mm × 635 mm (including end rings)
Generator Weight Approx. 15 kg
Maximum Penetration 25 mm (A3 steel)
Film Sensitivity Better than 2%
Controller Dimensions 350 mm × 265 mm × 200 mm
Controller Weight Approx. 7.2 kg
Input Power AC 220 V ± 10%, 50 Hz
Power Capacity Not less than 2.0 KVA
Operating Temperature -30°C ~ +40°C
Relative Humidity ≤ 85%
Altitude ≤ 1500 m
Duty Cycle Automatic 1:1 work / rest; max. continuous exposure 5 minutes

Company Introduction

Hangzhou Huiwei NDT Equipment Co., Ltd. is a professional manufacturer specializing in NDT X-ray equipment and industrial radiography solutions. With years of experience in research, development and production, our factory is equipped with advanced taping and assembly lines, a dedicated R&D team and a strict quality-control system under ISO 9001.

Our products are exported to customers and distributors worldwide and are widely used in the oil & gas, aerospace, shipbuilding, pressure-vessel and general manufacturing sectors. We are committed to providing reliable, cost-effective inspection equipment together with responsive OEM / ODM service.

Address: 3 Miaochangqiao Rd, Liangyun St, Liangzhu, Yuhang, Hangzhou, China | Tel: +86 571 8875 4795


Delivery Information

Item Details
Minimum Order Quantity 1 Set (trial order); tiered pricing for distributors
Price Range USD 12,000 - 13,500 / Set (negotiable; to be confirmed)
Payment Terms T/T, L/C, Western Union,
Supply Ability 100 Sets per Month
Delivery Time 7 - 15 working days after deposit
Packaging Details Export-grade wooden case with shock-proof foam
Port of Loading Shanghai / Ningbo, China
Shipping Methods Sea freight, air freight, express (DHL / FedEx / UPS)

Frequently Asked Questions (FAQ)

Question Answer
Are you a manufacturer or a trading company? We are a direct manufacturer (Hangzhou Huiwei NDT Equipment Co., Ltd.) with our own factory, providing OEM & ODM services.
What is the minimum order quantity (MOQ)? Our MOQ is 1 set for trial orders, and we offer tiered wholesale pricing for volume and distributor orders.
What is the lead time? For standard models, 7 - 15 working days after deposit. Customized configurations depend on the required specifications.
Do you provide after-sales service? Yes. Every unit comes with a 12-month warranty and lifetime technical support.
Can I become an authorized distributor in Asia? Yes. We warmly welcome distributors across Asia and can offer territory agreements and competitive wholesale pricing.
Which certifications do the products have? Our X-ray equipment is produced under an ISO 9001 quality management system and CE compliant.
How are the products shipped and packed? Each unit is packed in an export-grade wooden case with shock-proof foam, shipped by sea, air or express.

Contact Us

Interested in becoming a distributor or placing an order? Send us your requirements and we will reply with a tailored quotation, product datasheet and shipping details within 24 hours.

Inquire now — reliable NDT X-ray equipment, factory-direct pricing, worldwide delivery.
