350kVp Portable X Ray Flaw Detector RD-3505 55mm Steel Penetration for Industrial NDT Inspection

350kVp Portable X Ray Flaw Detector RD-3505 55mm Steel Penetration for Industrial NDT Inspection
Features Gallery Product Description Chat Now
Features
Specifications
Type: Portable Industrial X-Ray Flaw Detector (NDT)
Radiation Method: Directional
Tube Voltage Range: 200-350 KVp
Tube Current: 5 MA
Focal Spot Size: 2.5 X 2.5 Mm
Radiation Range: 40 Deg +/- 5 Deg
Max Steel Penetration: 55 Mm (A3/Fe Steel, 5 Min)
Radiographic Sensitivity: Better Than 2%
Insulation: SF6 Gas Insulated
Cooling Method: Anode-grounded Radiator, Forced-air Cooling
Power Input: AC 220V +/- 10%, 50Hz, >= 3.0 KVA
Duty Cycle: 4:1 Work-to-rest, Max 15 Min Continuous Exposure
Operating Temperature: -30 C To +40 C
Generator Weight: 34 Kg
Controller Weight: < 9 Kg
Warranty: 1 Year (generator & Controller), Lifetime Maintenance
Application: Pipeline, Storage Tank, Pressure Vessel And Weld Inspection
Highlight:

350kVp Portable X Ray Flaw Detector

,

55mm Steel Penetration NDT Radiography

,

SF6 Insulated Field X Ray Equipment
Basic Infomation
Place of Origin: Zhejiang, Hangzhou, China
Brand Name: HUIWEI
Certification: ISO 9001:2015, CE
Model Number: RD-3505
Payment & Shipping Terms
Product Description

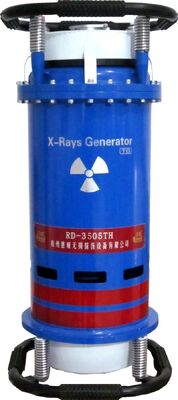

RD-3505 Portable Industrial X-Ray Flaw Detector

200–350 kVp  |  5 mA  |  SF6 Gas Insulated  |  Thick-Section Field Radiography for Inspection Companies

Product Overview

The RD-3505 is a high-output portable industrial X-ray flaw detector designed for radiographic testing of heavy wall thicknesses on site. With 200–350 kVp tube voltage and 5 mA current, it penetrates up to 55 mm of A3 steel in 5 minutes, making it a first-choice workhorse for third-party inspection companies testing pipelines, storage tanks, pressure vessels and welded structures. The SF6 gas-insulated generator and intelligent chopper-control console deliver stable output, automatic conditioning and complete fault protection for demanding field programs.

Built for CIS Inspection Programs
• Heavy-wall capability – 350 kVp penetrates 55 mm steel for mainline pipelines, tanks and pressure vessels
• Cold-climate operation – reliable from −30°C to +40°C for outdoor winter campaigns
• Field-proven portability – generator 34 kg + controller <9 kg with 4:1 duty cycle, up to 15-minute continuous exposures
• Uninterrupted supply – factory-direct availability with fast lead times for upgrading or expanding RT fleets
• Full after-sales support – spare parts, exposure-curve guidance, remote troubleshooting and lifetime maintenance
• Documentation – English manuals and certificates of conformity supplied with every unit
Key Highlights
• 200–350 kVp / 5 mA with mA stability ±1%
• Focal spot 2.5 × 2.5 mm; radiation range 40° ±5°
• SF6 gas insulation, anode-grounded radiator with forced-air cooling
• Intelligent MIXN control system, fully automatic conditioning
• Soft start / gradual shutdown protect X-ray tube life
• Safety door interlock, over-temperature, discharge and mA/voltage protection
• Stepless kV and time knobs, delayed-exposure function
• Cumulative exposure-time recorder for maintenance planning

Technical Specifications (RD-3505)

ParameterSpecification
Input powerSingle-phase 50 Hz, AC 220 V ±10%
Power supply capacityNo less than 3.0 kVA
X-ray tube voltage200–350 kVp
X-ray tube current5 mA
mA stability±1%
Focal spot size2.5 × 2.5 mm
X-ray irradiation range40° ±5°
Generator working pressure0.45–0.5 MPa
Cooling methodAnode-grounded radiator with forced-air cooling
Insulation methodSF6 gas insulation
Generator size / weightΦ320 × 320 mm / 34 kg
Max. steel penetration55 mm (A3 steel / Fe, 5 min; 600 mm FFD, Agfa film, double lead foil, developer 22°C, film density ≥1.5)
SensitivityBetter than 2%
Controller size / weight325 × 270 × 180 mm / <9 kg, automatic control and protection
Duty cycleFully automatic 4:1 work-to-rest; max. 15 min continuous exposure per cycle
Operating temperature−30°C to +40°C
Relative humidity / altitudeNot more than 85% / not higher than 1,500 m

Standard Configuration & Packing List

ItemSpecificationQty
X-ray generatorRD-3505 (SF6 gas insulated)1 unit
X-ray control consoleRD-3505 series (shared with RD-360LG)1 unit
Connection cable9-core dedicated, 25 m1 pc
Power cable3-core dedicated, 5 m1 pc
Spare fuse5A10 pcs
DocumentationUser manual, warranty card, certificate of conformity, packing list1 set

About Hangzhou Huiwei NDT Equipment Co., Ltd.

HUIWEI is a professional manufacturer of industrial X-ray and non-destructive testing equipment, established in 1993 with in-house R&D, production and quality control in Hangzhou, China. Our RD-series flaw detectors are used by inspection companies, testing laboratories and industrial plants worldwide, with 60–70% of output exported, including regular deliveries to Russia, Kazakhstan, Uzbekistan and other CIS markets.

Every unit is factory calibrated and test-exposed before shipment, covered by a one-year warranty on the generator and control console plus lifetime maintenance service. We provide technical documentation, exposure-curve reference data, spare parts and responsive engineer support for long-term inspection projects.

Address: Building A4, No. 255, Yangpingshan Road, Dayuan Town, Fuyang District, Hangzhou, Zhejiang, China
Tel: +86-571-88754564 (Business)  |  Technical Service: +86-13385815660
Website: www.ndt-x-ray.com

Request a Quotation

Tell us your pipe diameters, wall thicknesses and project schedule – we will recommend the right RD-series configuration and delivery plan for Russia, Kazakhstan, Uzbekistan or other destinations.
