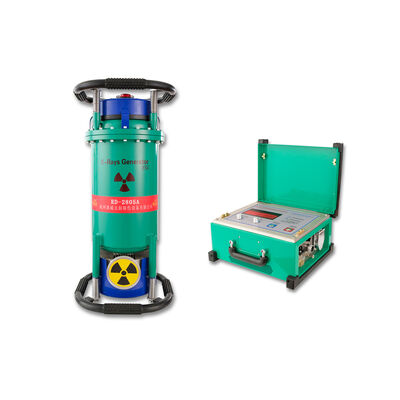

High Power Portable NDT Inspection Equipment X-ray Flaw Detector for Weld Inspection in Power Plant and Shipyard Applications

1 set
MOQ
12000usd/set
Price
High Power Portable NDT Inspection Equipment X-ray Flaw Detector for Weld Inspection in Power Plant and Shipyard Applications
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Warranty: 12 Months
Color: Stainless Steel,Silver Gray,blue And White
Function: Steel Defect,NDT Inspection Welding
Film Type: Any Kinds Of Industrial Film
Max.penetration: 40mm(A3 STEEL)
Exposure Time: 15 Minutes
Voltage: 150-280kv
Generator Weight: 27kg
Tube Current: 5mA
Name: NDT Industrial X-ray Machine
Focus Spot: 1.0*2.4
ControllerWeight: 12kg
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-2805TH
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

RD-2805 Portable Industrial X-ray Flaw Detector | High-Power NDT Equipment for Power Plant & Shipyard Weld Inspection

Product Overview



The RD-2805 industrial X-ray flaw detector is officially designated NDT equipment for China Jian’an’s first 1,000 MW power unit construction, fully verifying its stable and reliable performance under harsh industrial working conditions.

As a breakthrough portable X-ray NDT device, it supports high-voltage output and short exposure to deliver fast, high-definition radiographic results. Verified by strict tests, it can complete 10,000 radiographs within 30 days, perfectly matching mass inspection tasks requiring stable efficiency.

This intelligent system features strong anti-interference performance, full-automatic control and comprehensive safety interlocks to operate steadily amid complex electromagnetic interference. Its modular structure and air duct cooling design enable long-duration continuous work, cutting downtime and lifting overall inspection output.

Weighing merely 26 kg, the lightweight unit achieves a maximum steel penetration of 45 mm with excellent shock and vibration resistance. It fits tough scenarios including power station assembly and shipbuilding, especially narrow or high-altitude working areas, saving labor and setup time greatly. Unlike traditional X-ray machines requiring equal rest time after operation, it eliminates the 1:1 cooling cycle and raises inspection efficiency by 50%. Two variants are provided: directional RD-2805A and circumferential RD-2805TH, covering diversified industrial radiographic testing demands.



RD-2805TH technical parameters





Project

RD-2805TH

input

Input power

Single-phase  50Hz AC 220± 10% V

Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

150-280 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

1.0× 2.4

X-ray irradiation range

360°*25°



Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ280mm´280mm´620mm

27

Maximum penetration

Thickness steel A3(mm)

40 mm Fe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins







 Typical Application Scenarios


  • Power Plant Construction: Installation and maintenance of large-scale power generation units, boiler and pressure vessel weld inspection.
  • Shipbuilding & Offshore: Hull weld, pipe spool, and structural component radiographic testing in shipyards and offshore platforms.
  • Oil & Gas Industry: On-site inspection of pipelines, storage tanks, and process piping (for wall thickness ≤45mm).
  • Industrial Fabrication: Quality control for steel structures, heavy machinery, and pressure vessel components in manufacturing facilities.
  • Field & Confined-Space Operations: Ideal for elevated work platforms, narrow pipe trenches, and remote construction sites.



 After-Sales Support and Service Guarantees


  • 12-Month Warranty: Full warranty against manufacturing defects, with lifetime technical support.
  • On-Site Training & Calibration: Optional on-site training for operation, maintenance, and safety procedures (available upon request).
  • Spare Parts Supply: Fast delivery of original spare parts to minimize downtime.
  • Customization Support: Technical consultation for specific project requirements, including process parameter optimization and compatibility testing.
  • 24/7 Technical Support: Dedicated NDT engineers available via phone/email to resolve operational issues.



6. Package Includes


  • X-ray Generator (RD-2805A / RD-2805TH)
  • Control Unit
  • Power Cable & Connecting Cables
  • Protective Carrying Case
  • Operation Manual & Certificate of Calibration
  • Safety Accessories (radiation warning signs, dosimeter, optional)
