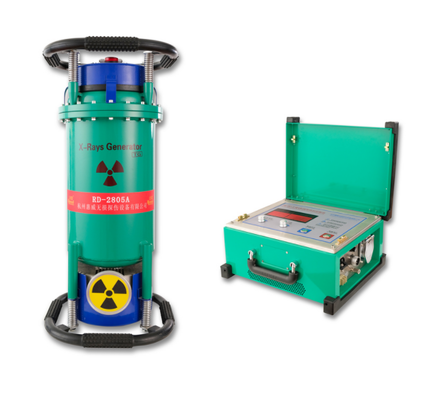

Portable 280KV X-ray Flaw Detector with 40mm Steel Penetration for Industrial NDT Inspection Equipment

1 set
MOQ
12000usd/set
Price
Portable 280KV X-ray Flaw Detector with 40mm Steel Penetration for Industrial NDT Inspection Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Warranty: 12 Months
Color: Stainless Steel,Silver Gray,blue And White
Function: Steel Defect,NDT Inspection Welding
Film Type: Any Kinds Of Industrial Film
Max.penetration: 40mm(A3 STEEL)
Exposure Time: 5 Minutes
Voltage: 150-280kv
Generator Weight: 27kg
Tube Current: 5mA
Name: NDT Industrial X-ray Machine
Focus Spot: 1.0*2.4
ControllerWeight: 12kg
Highlight:

Portable NDT X-ray flaw detector

,

Industrial weld radiographic testing equipment

,

X-ray detector for power plants
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-2805TH
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

RD-2805 Portable Industrial X-ray Flaw Detector | High-Power NDT Equipment for Power Plant & Shipyard Weld Inspection

Product Overview

The RD-2805 Industrial X-ray Flaw Detector is the designated non-destructive testing product for the installation of China Jian'an's first 1,000 MW power generation unit — a testament to its enduring reliability and field-proven performance in the most demanding industrial environments.
Representing a significant technical breakthrough in portable X-ray NDT technology, the RD-2805 features high-voltage operation and short-duration exposure capabilities that enable rapid, high-quality radiographic inspection. Rigorous performance testing has demonstrated its capacity to capture 10,000 radiographic images within a 30-day period, making it an ideal choice for high-volume inspection projects where productivity and consistency are critical.
This intelligent X-ray system boasts robust anti-interference capabilities, alongside fully automated control and safety protection functions that ensure reliable operation even in electrically noisy industrial environments. Featuring a modular design and air-duct cooling system, it supports continuous operation with exceptional reliability, minimizing downtime and maximizing inspection throughput.
Compact and lightweight at just 26 kilograms, the RD-2805 offers powerful penetration of up to 45 millimeters in steel, as well as superior resistance to vibration and impact. It is ideally suited for radiographic inspection in challenging environments — such as the installation of large-scale power generation units or shipyard operations — particularly in elevated or confined spaces. Its small size, light weight, and portability ensure time- and labor-efficiency, while its high stability and low failure rate guarantee consistent performance.
Furthermore, the unit allows for continuous exposure without the need for a 1:1 rest cycle, thereby boosting radiographic inspection efficiency by 50% compared to conventional X-ray equipment. The RD-2805 series is available in both directional (RD-2805A) and circumferential (RD-2805TH) configurations, providing flexible solutions for a wide range of inspection applications.




RD-2805TH technical parameters





Project

RD-2805TH

input

Input power

Single-phase  50Hz AC 220± 10% V

Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

150-280 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

1.0× 2.4

X-ray irradiation range

360°*25°



Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ280mm´280mm´620mm

27

Maximum penetration

Thickness steel A3(mm)

40 mm Fe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins





 Core Advantages and Features


✅ Proven Industrial-Grade Reliability

  • Officially qualified for China’s 1,000 MW power unit installation, validated to capture 10,000+ radiographic images within a 30-day continuous operation period.
  • Air-duct cooling system and modular design ensure stable performance even in high-temperature or high-vibration environments.

✅ High Efficiency, Low Downtime

  • Eliminates the 1:1 work-rest cycle requirement, enabling continuous exposure for up to 15 minutes and cutting inspection time by 50% for large-scale projects.
  • Compact 26–27kg generator design reduces labor intensity and enables deployment in confined spaces.

✅ Advanced Imaging & Control

  • Fully automated control with safety protection functions and robust anti-interference capabilities for consistent image quality.
  • Dual configuration options (directional/panoramic) support both flat weld inspection and full-circle pipeline radiography.

✅ Durability for Harsh Environments

  • Superior resistance to vibration and impact, making it suitable for shipyard, power plant, and elevated work scenarios.



 Typical Application Scenarios


  • Power Plant Construction: Installation and maintenance of large-scale power generation units, boiler and pressure vessel weld inspection.
  • Shipbuilding & Offshore: Hull weld, pipe spool, and structural component radiographic testing in shipyards and offshore platforms.
  • Oil & Gas Industry: On-site inspection of pipelines, storage tanks, and process piping (for wall thickness ≤45mm).
  • Industrial Fabrication: Quality control for steel structures, heavy machinery, and pressure vessel components in manufacturing facilities.
  • Field & Confined-Space Operations: Ideal for elevated work platforms, narrow pipe trenches, and remote construction sites.



 After-Sales Support and Service Guarantees


  • 12-Month Warranty: Full warranty against manufacturing defects, with lifetime technical support.
  • On-Site Training & Calibration: Optional on-site training for operation, maintenance, and safety procedures (available upon request).
  • Spare Parts Supply: Fast delivery of original spare parts to minimize downtime.
  • Customization Support: Technical consultation for specific project requirements, including process parameter optimization and compatibility testing.
  • 24/7 Technical Support: Dedicated NDT engineers available via phone/email to resolve operational issues.



6. Package Includes


  • X-ray Generator (RD-2805A / RD-2805TH)
  • Control Unit
  • Power Cable & Connecting Cables
  • Protective Carrying Case
  • Operation Manual & Certificate of Calibration
  • Safety Accessories (radiation warning signs, dosimeter, optional)
