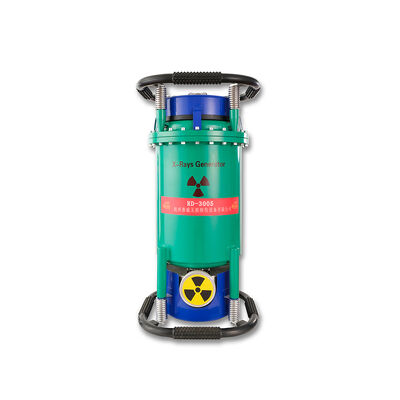

Portable X-ray Flaw Detector with 55mm Maximum Steel Penetration, Humanized Operation Interface, and 34kg Lightweight Design for NDT Inspection

              PRODUCT DESCRIPTION

Core Advantages

1. Lightweight Design for Easy Portability & Operation

• The X-ray generator weighs only 34kg and the controller 8kg, equipped with rubber shock-absorbing corners and vertical/horizontal support rings for easy transportation and on-site setup in fieldwork.
• Humanized operation interface with industrial stepless knobs for KV/time adjustment and LED Chinese character status display, ensuring clear observation and fast parameter tuning for quick onboarding.

2. High Penetration & Efficiency for Superior Detection

• Stable tube voltage output (200~350 KVp) and tube current (5mA, ±1% stability), with a maximum penetration of 55mm A3 steel under standard testing conditions.
• Supports 15 minutes of continuous exposure with an automatic 4:1 work-rest cycle, significantly improving on-site detection efficiency; film blackness ≥1.5 and detection sensitivity better than 2% for high-precision flaw identification.

3. Intelligent Control System to Extend Equipment Life

• Adopts industry-leading MIXN intelligent X-ray control system with high anti-interference performance and adaptive chopper frequency conversion control.
• Patented automatic conditioning mode: automatic voltage reduction for generator discharge and real-time time tracking, effectively protecting the X-ray tube.
• Soft start/soft shutdown of voltage and adaptive start rate of chopper control, matching different generator working states and reducing equipment wear.

4. Multiple Safety Safeguards for On-site Operation

• Built-in protection functions: mA over/under voltage protection, real-time voltage over/under protection, automatic discharge identification protection, over-temperature protection and safety door interlock.
• Interlock terminal for lead room door control, audible and visual alarm for X-ray emission, and remote working status indicator light for all-round protection of operators and equipment.

5. Modular Structure for Convenient Maintenance

• Modular main circuit of the controller with air duct heat dissipation for high reliability in continuous operation; heat dissipation fan and upper cover can be disassembled independently for easy dust cleaning.
• Precise fault detection with clear fault code display for quick problem location; no professional technicians required for basic troubleshooting.

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
