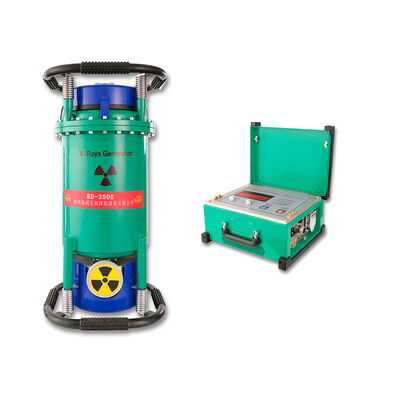

Portable Ceramic X Ray Flaw Detector Radiography NDT Pipeline Welding Checking Machine
Main introduction:
The RD-3505 is a small, lightweight, compact, portable industrial X-ray flaw detector with strong penetration, time and labor saving, high stability, low failure rate, and continuous 15-minute exposure operation without 1:1 rest. It is suitable for double-wall single-image radiography of chemical tanks and large-diameter pipes, improving work efficiency by 50%.
The equipment is lightweight and portable, with the generator weighing only 34kg, and features a compact design. This series of equipment is available in directional and circumferential versions, with a maximum penetration thickness of 55mm for Q235 steel.
This series of flaw detectors are SF6 gas insulated portable X-ray flaw detectors, which are composed of the following parts:
X-ray generator, intelligent controller, power cable, connecting cable, accessories, etc.
The X-ray generator is a combined structure. The high voltage transformer (including the X-ray tube filament winding) and the X-ray tube are installed in the same tube barrel. The tube barrel is made of aluminum and is sealed. It is filled with sulfur hexafluoride (SF6 is a kind of fluorine chemical product) insulating gas, which has good electrical insulation properties for high voltage.
In order to facilitate the heat dissipation of the X-ray tube, an anode grounding method is adopted. A multi-blade aluminum radiator is installed at the protruding end of the anode target, and a fan is installed on the radiator. The fan is used for forced cooling to enhance the heat dissipation effect. A layer of lead plate for anti-scattering is also laid in the tube barrel.
Secondly, a temperature relay is installed on the iron core in the tube barrel and the external radiator to prevent the machine from being damaged by excessive temperature. There is a flash light power supply for ray warning on the generator, which can be used for ray warning. End rings are installed at both ends of the X-ray generator, allowing it to be placed upright or horizontally for easy transportation.
Application
Oil & Gas
Shipyard building & Building sites
Petrochemical & Power plants
Foundries
Railway parts
Boiler or pressure vessels manufacturers
RD-3505 the technical parameters
|
|
Project
|
RD-3505
|
|
input
|
Input power
|
Single-phase AC150-250V 50/60Hz
|
|
Power supply capacity
|
No less than 3.0 KVA
|
|
output
|
X - ray tube voltage
|
170~ 350 KVp
|
|
X ray tube current
|
5mA
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
2.5× 2.5
|
|
X-ray irradiation range
|
40±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.35MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
Size
weight (kg)
|
φ320×640
|
|
34
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
55 mmFe(5 min)
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins
|
