Welding RT Equipment For Petrochemical X Ray Radiography NDT 360KV

1 set
MOQ
40000usd/set
Price
Welding RT Equipment For Petrochemical X Ray Radiography NDT 360KV
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: X-ray Welding Machine Ndt,X-ray Inspection Systems,NDT Industrial Film Processing Machine,industrial NDT Equipment NDT X Ray Testing Machine
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Power Supply: AC220V±10%
Film Type: Any Kinds Of Industrial Film
Voltage: 30-300kv
Exposure Time: 30 Minutes
Name: NDT Industrial X-ray Machine
Max.penetration: 80mm(A3 STEEL)
Focus Spot: 2.5*2.5
Generator Weight: 30kg
Tube Current: 1-3mA
Highlight:

Petrochemical x ray weld inspection equipment

,

360KV x ray weld inspection equipment

,

300kv x ray radiography ndt
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-300LG
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

            High Performance Welding Rt Equipment For Petrochemicalx Ray Radiography Ndt 360KV



Main introduction:

Technical background
With the continuous expansion of the depth and breadth of industrial manufacturing in China, there are many industrial products with large wall thickness and focal length that urgently need radiographic testing for butt
welds. Traditional X-ray machines can no longer meet the needs of such radiographic testing. RD-360LG is developed in the context of promoting the implementation of China's 2025 Manufacturing Power Strategy Action
Plan.
Huiwei’s commitment to developing world-class products has led to the breakthrough RD-360LG industrial X-ray machine. Combining 30 years of technical expertise, this high-energy, durable system achieves a 360KV continuous exposure capability, penetrating up to 80mm (Q235 steel). As Huiwei’s flagship high-energy model, it addresses China’s NDT challenges for large-thickness/focal-length special equipment, offering a safer, more efficient alternative to Y192 radiation sources—reducing costs, streamlining workflows, and minimizing risks. The RD-360LG is poised to make a global impact in NDT.





RD-360LG Technical Parameter

model RD-360LGD RD-360LGP
Outgoing wiring harness directional radiation Circumferential radiation
Input power supply AC22V±10%
Maximum transmittance (mm) steel 80mm(steel) 70mm(steel)
High voltage range (kV) 200-360 200-360
Tube current (mA) 5 5
Focus size (mm) 3.0x3.0 1.0x3.0
Shooting angle 45±5° 360°
Generator size Φ350x770 Φ350x770
Generator weight (Kg) 42 40
operation mode 3:1Continuous exposure rest

Company profile

HUIWEI NDT EQUIPMENT Co.,Ltd, A factory which is a professional NDT Equipment factory established in 1993 certified ISO9001,ISO45001,ISO 14001 and verified by SGS.
We are a factory & enterprise high tech expertise and China TOP 1 quality manufacturing company, our service including reasearch&development, manufacturing, sales and rent, etc.

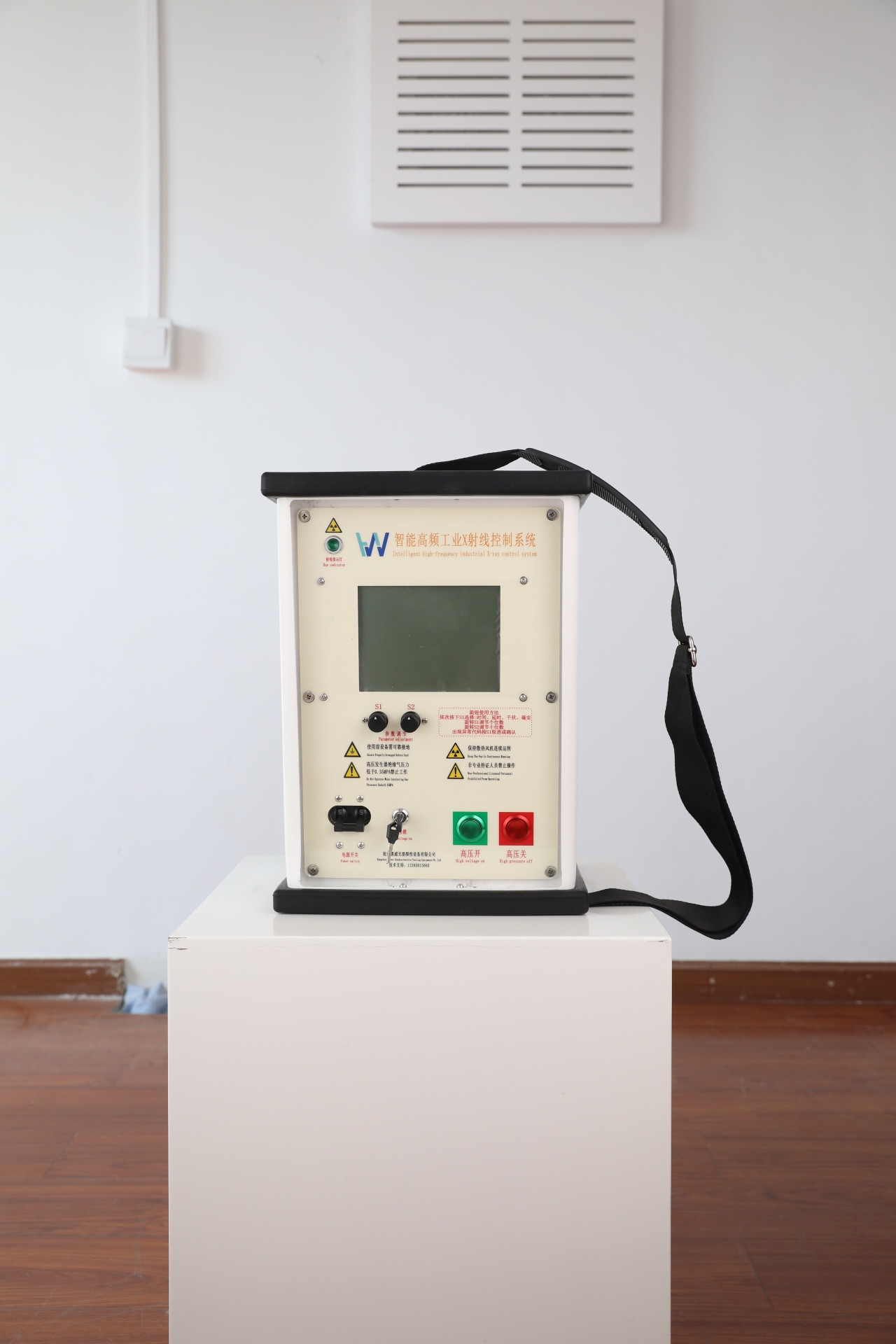

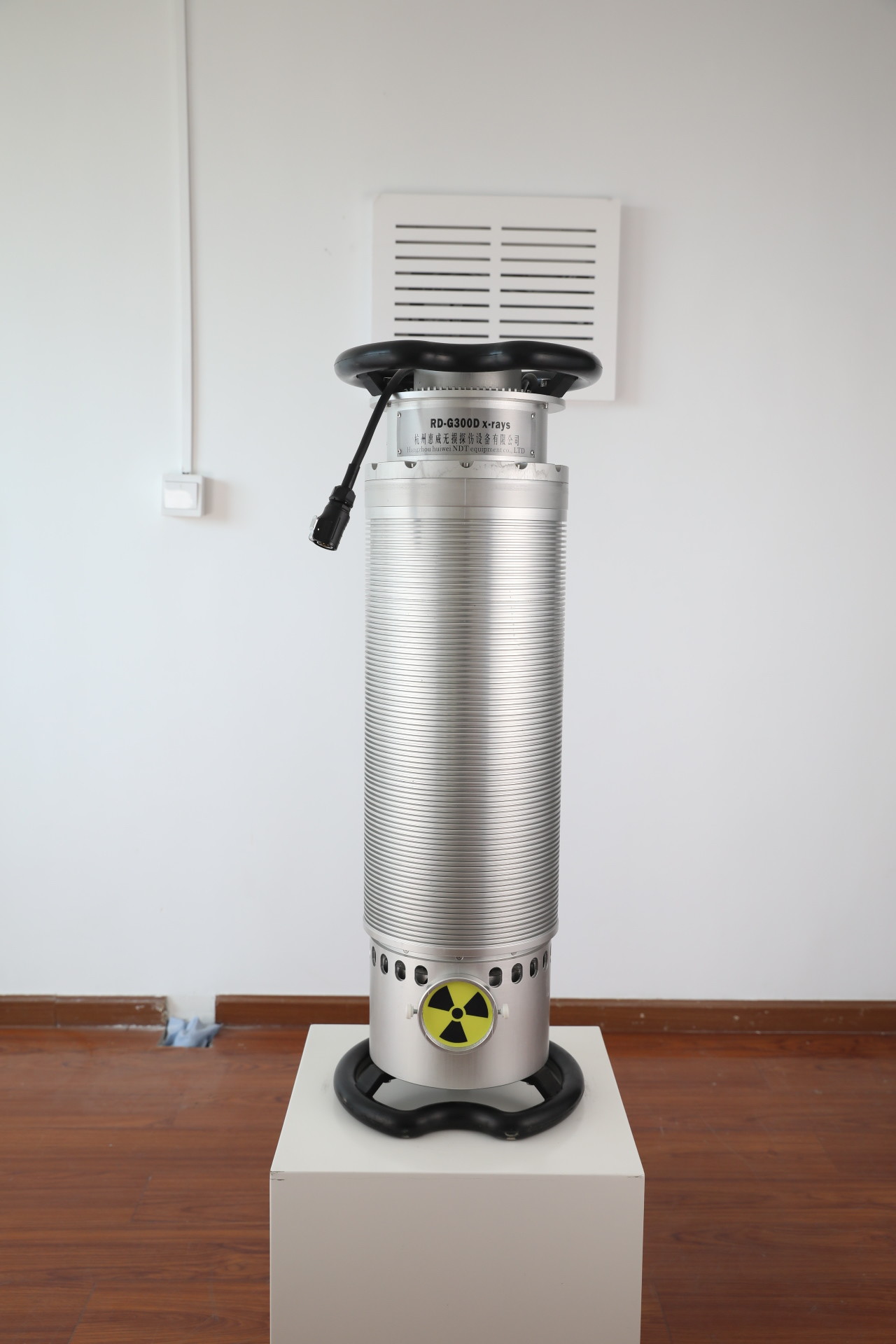

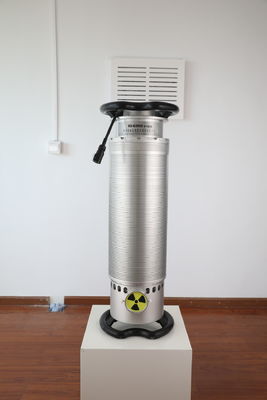

Welding RT Equipment For Petrochemical X Ray Radiography NDT 360KV 0



Welding RT Equipment For Petrochemical X Ray Radiography NDT 360KV 1

Tag:

industrial xray equipment

portable industrial x ray machine

x ray flaw detector
