Home /Products/Industrial X Ray Machine/Industrial X Ray Machine Featuring 360kV Power Output and Extended Exposure Duration for Non Destructive Testing of Welded Structures

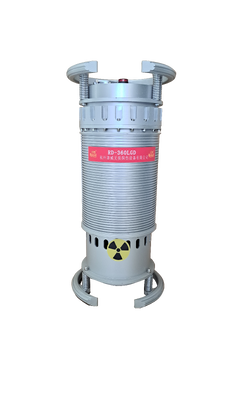

Industrial X Ray Machine Featuring 360kV Power Output and Extended Exposure Duration for Non Destructive Testing of Welded Structures

1 set
MOQ
52000usd/set
Price
Industrial X Ray Machine Featuring 360kV Power Output and Extended Exposure Duration for Non Destructive Testing of Welded Structures
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 80mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 30-300kv
Exposure Time: 30 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 1-3mA
Focus Spot: 2.5*2.5
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-360LG
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

            High Performance Welding Rt Equipment for Petrochemical Industrial NDT Inspection



Product Background

As China's industrial manufacturing sector continues to advance under the "Made in China 2025" strategy, a growing number of industrial products featuring thick walls and long focal distances require urgent radiographic inspection of their butt welds. Traditional X-ray machines are no longer capable of meeting these specific inspection demands.
It was against this backdrop that the RD-360LG was developed — embodying Huiwei's core philosophy of creating products with international competitiveness. Representing the culmination of 30 years of accumulated technical expertise, the RD-360LG successfully realizes a 360kV X-ray machine capable of continuous-exposure operation, marking a significant breakthrough in domestic high-energy NDT technology.


Core Technical Breakthroughs

1️⃣ Industry-Leading Penetration Performance

Up to 80mm in Q235 steel — setting a new benchmark for portable X-ray flaw detectors in China. This ultra-high penetration capability enables inspection of the thickest wall components and longest focal distance applications that were previously only possible with radioactive sources.

2️⃣ 30-Minute Continuous Exposure

3:1 work-rest cycle with maximum single exposure duration of 30 minutes — a revolutionary improvement in operational efficiency. Extended exposure times allow for higher quality radiographs on thick sections, reducing retake rates and improving inspection throughput.

3️⃣ Viable Alternative to Iridium-192 (Ir-192)

The RD-360LG serves as a practical alternative to certain applications utilizing Iridium-192 radioactive sources, thereby resolving the logistical and administrative issues inherent in the handling and management of such radioactive materials. This enables NDT agencies to:
  • ✅ Reduce costs — eliminate radioactive source licensing, storage, and transportation expenses
  • ✅ Enhance efficiency — no source transportation delays or regulatory paperwork
  • ✅ Improve risk control — eliminate radiation safety hazards associated with sealed sources





RD-360LG Technical Parameter

model RD-360LGD RD-360LGP
Outgoing wiring harness directional radiation Circumferential radiation
Input power supply AC22V±10%
Maximum transmittance (mm) steel 80mm(steel) 70mm(steel)
High voltage range (kV) 200-360 200-360
Tube current (mA) 5 5
Focus size (mm) 3.0x3.0 1.0x3.0
Radiation angle 45±5° 360°
Generator size Φ350x770 Φ350x770
Generator weight (Kg) 42 40
operation mode 3:1Continuous exposure rest



R&D Capabilities

Hangzhou Huiwei Non-destructive Testing Equipment Co., Ltd. has been at the forefront of portable industrial X-ray technology since 1993. The RD-360LG represents the pinnacle of our three decades of innovation:

Innovation Milestones

  • 2016 — Developed RD-300LG series with 99-minute continuous exposure capability
  • 2018 — Launched G300D high-frequency DC industrial X-ray machine
  • 2024 — Introduced Hangshe 1.0 Digital Imaging System Software
  • 2025 — Completed 300kV industrial DR R&D and prototype
  • 2026 — Successfully developed Industrial CT 3D Digital Imaging System

R&D Infrastructure

  • 🏫 Joint R&D center with China Jiliang University
  • 📜 31 authorized patents and software copyrights
  • 📋 Participant in drafting national, industry, and group standards
  • 🏢 12,000 m² modern R&D and production facility
  • 🏅 National Key High-tech Enterprise certification

Industrial X Ray Machine Featuring 360kV Power Output and Extended Exposure Duration for Non Destructive Testing of Welded Structures 0



Industrial X Ray Machine Featuring 360kV Power Output and Extended Exposure Duration for Non Destructive Testing of Welded Structures 1
