30-300kv Industrial X Ray Machine NDT CT DR UT RT Machine

1 set
MOQ
40000usd/set
Price
30-300kv Industrial X Ray Machine NDT CT DR UT RT Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Warranty: 12 Months
Power Supply: AC220V±10%
Film Type: Any Kinds Of Industrial Film
Voltage: 30-300kv
Exposure Time: 30 Minutes
Name: NDT Industrial X-ray Machine
Max.penetration: 80mm(A3 STEEL)
Tube Current: 1-3mA
Focus Spot: 2.5*2.5
Generator Weight: 30kg
Highlight:

300kv industrial x ray machine

,

30kv industrial x ray machine

,

3mA ndt radiography
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-300LG
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

           Industrial X Ray Machine NDT CT/DR/UT/RT Machine



Main introduction:

Technical background
With the continuous expansion of the depth and breadth of industrial manufacturing in China, there are many industrial products with large wall thickness and focal length that urgently need radiographic testing for butt
welds. Traditional X-ray machines can no longer meet the needs of such radiographic testing. RD-360LG is developed in the context of promoting the implementation of China's 2025 Manufacturing Power Strategy Action
Plan.
The RD-360LG, Huiwei’s cutting-edge 360KV industrial X-ray machine, delivers unmatched durability and power for non-destructive testing. Designed to penetrate 80mm steel (Q235), it solves critical pain points in China’s special equipment NDT, replacing Y192 radiation sources while eliminating logistical and regulatory hurdles. By enhancing efficiency, cutting costs, and mitigating risks, this flagship model—backed by three decades of R&D—sets a new standard for high-energy X-ray technology worldwide



RD-360LG Technical Parameter

model RD-360LGD RD-360LGP
Outgoing wiring harness directional radiation Circumferential radiation
Input power supply AC22V±10%
Maximum transmittance (mm) steel 80mm(steel) 70mm(steel)
High voltage range (kV) 200-360 200-360
Tube current (mA) 5 5
Focus size (mm) 3.0x3.0 1.0x3.0
Shooting angle 45±5° 360°
Generator size Φ350x770 Φ350x770
Generator weight (Kg) 42 40
operation mode 3:1Continuous exposure rest

Company profile



Since its establishment, the company has focused on the research and development of industrial ray flaw detectors, and has continued to innovate and break through. In 2016, it successfully developed the first domestic portable industrial X-ray machine RD300LG series that can work continuously and expose, and created the industrial X-ray machine in the same year. In 2017, the company was recognized as a high-tech small and medium-sized enterprise in Zhejiang Province and the R&D center of Yuhang District. In 2018, it successfully developed the first domestic high-frequency DC industrial X-ray machine G300 series. Up to now, the company has successfully obtained 25 patent authorizations .

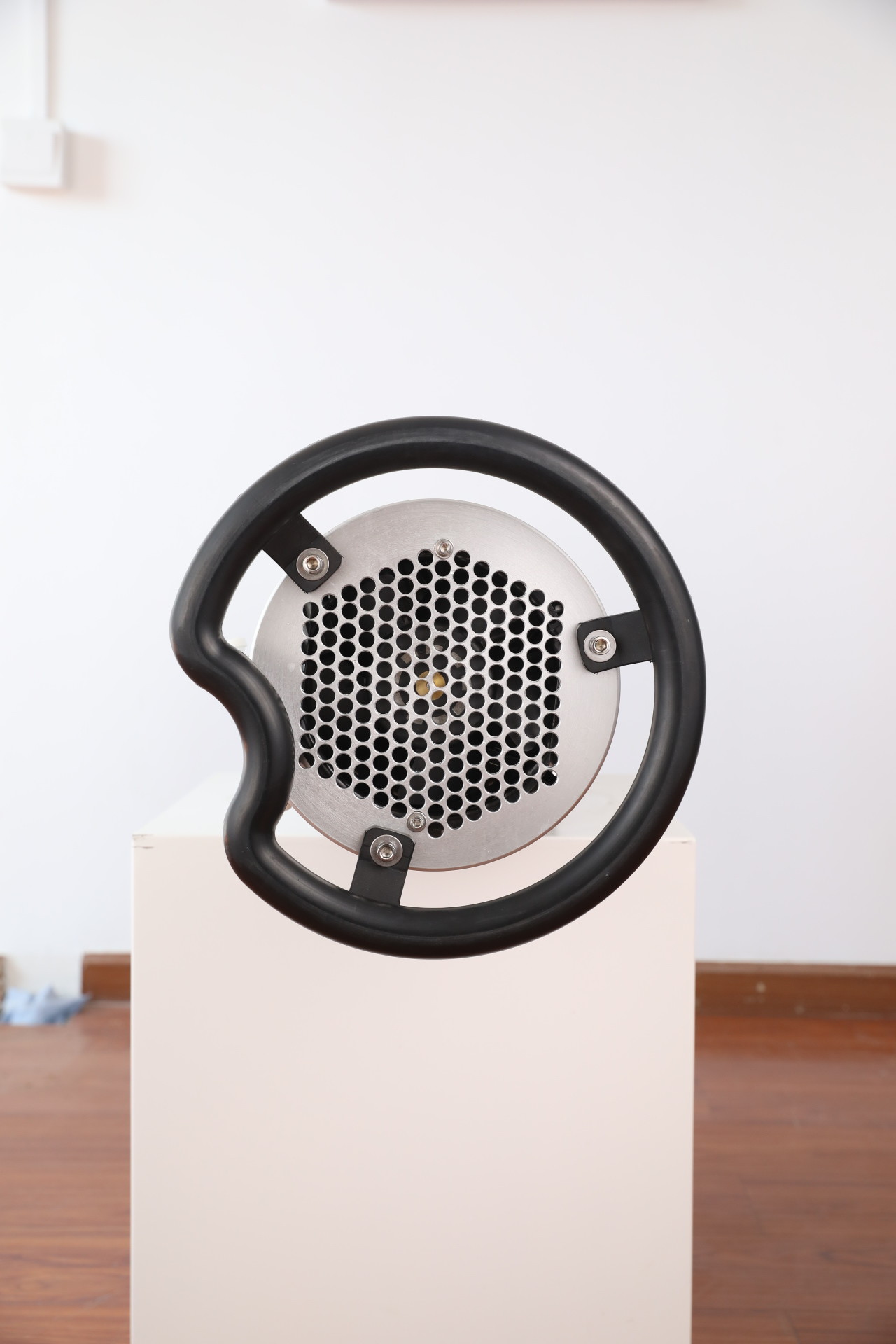

30-300kv Industrial X Ray Machine NDT CT DR UT RT Machine 0

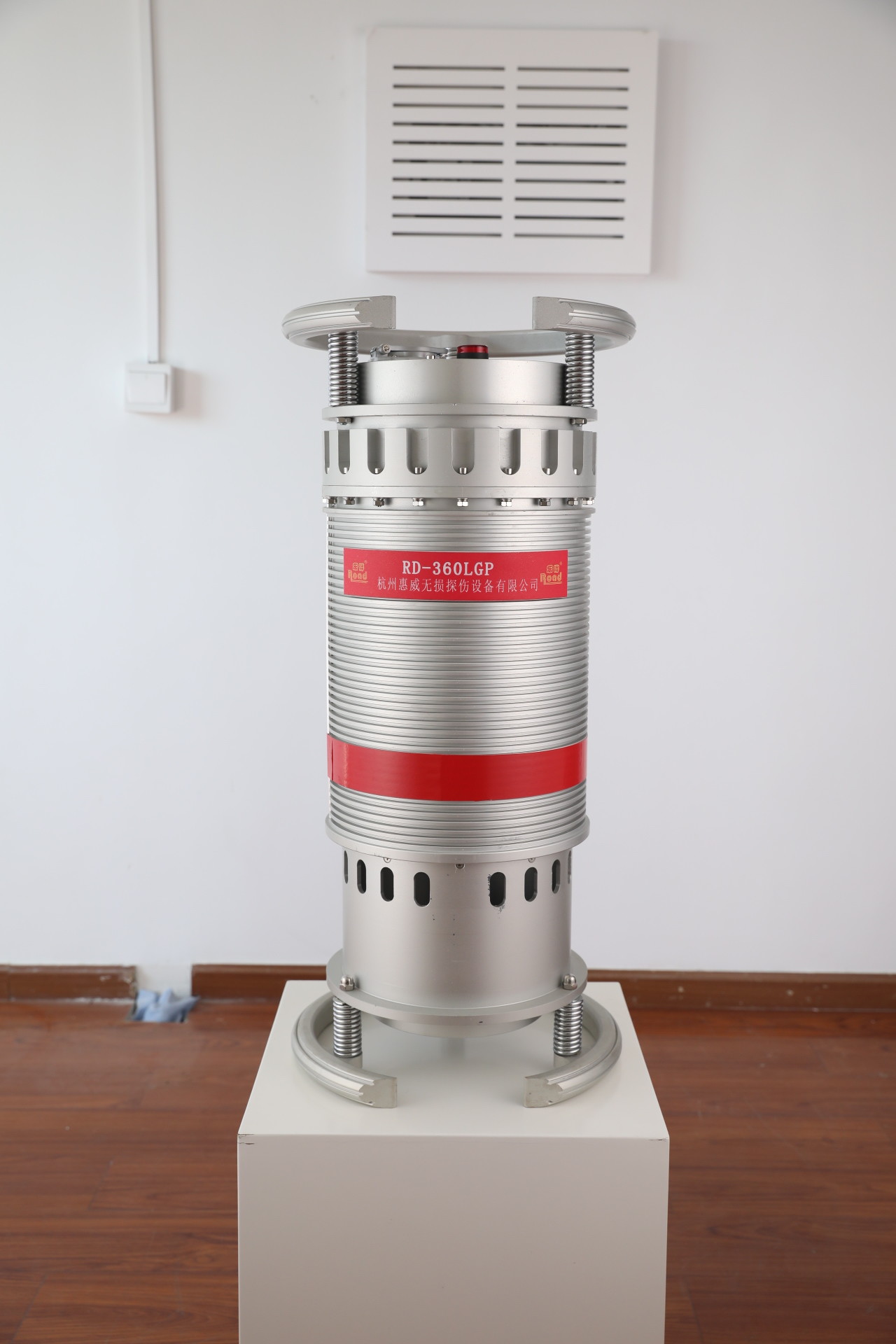

30-300kv Industrial X Ray Machine NDT CT DR UT RT Machine 1
