PRODUCT DESCRIPTION

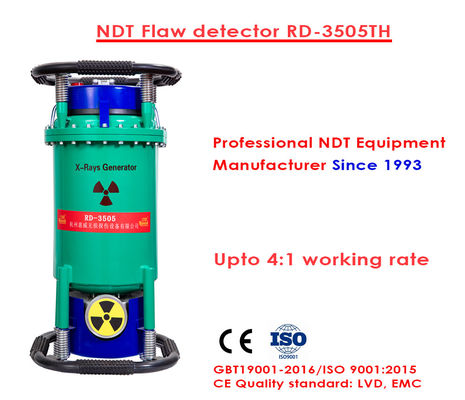

RD-3505 Best-Selling X-Ray Flaw Detector with 280kV Ceramic Tube for Directional or Panoramic Angle Inspection by HUIWEI NDT
Introduction
The industrial ndt x-ray equipment use to evaluate the quality of materials and products since the industrial ndt x-ray equipment can be used to show the internal defects of materials,products or welding from a radiographic image on a film. According to the principle of the different absorption of the x-ray for different material depending on the different thickness of the materials.
Application
This industrial ndt x-ray equipment can be widely used in shipbuilding, machinery, manufacturing, aviation, rail, pressure vessels, boilers, oil, chemical, defense industry and other departments for non-destructive testing. Particularly applicable to construction site operation and high-altitude operations.
Features: small size, light weight, easy to carry, time-saving and labor-saving, strong stability, low failure rate, continuous exposure for 15 minutes without 1:1 rest, suitable for chemical spherical tanks, large diameter pipeline double-wall single-image filming, improve work efficiency by 50%.
RD-3505 the technical parameters
|
|
Project
|
RD-3505
|
|
input
|
Input power
|
Single-phase AC150-250V 50/60Hz
|
|
Power supply capacity
|
No less than 3.0 KVA
|
|
output
|
X - ray tube voltage
|
170~ 350 KVp
|
|
X ray tube current
|
5mA
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
2.5× 2.5
|
|
X-ray irradiation range
|
40±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.35MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
Size
weight (kg)
|
φ320×640
|
|
34
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
55 mmFe(5 min)
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins
|
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.
3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
