Portable Industrial Xray Machine for Advanced Non-Destructive Testing and Inspection in Industrial Applications
Main introduction:

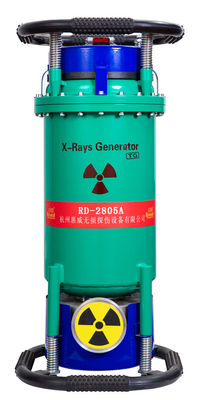

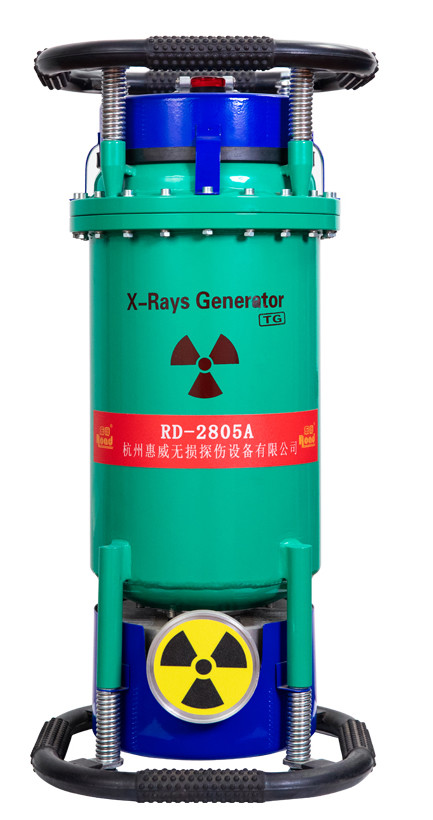

RD-2505 is an X-ray machine equipped with an automated intelligent training machine control system. Its most prominent feature is its robust anti-interference capability. Operating in a continuous 4:1 exposure duty cycle, it allows for a maximum single exposure time of 15 minutes. This series comprises directional and circumferential radiation models: the directional model has a radiation angle of 40±5°, while the circumferential model offers a full 360° angle, with a maximum penetration capacity of 45mm for A3 steel.

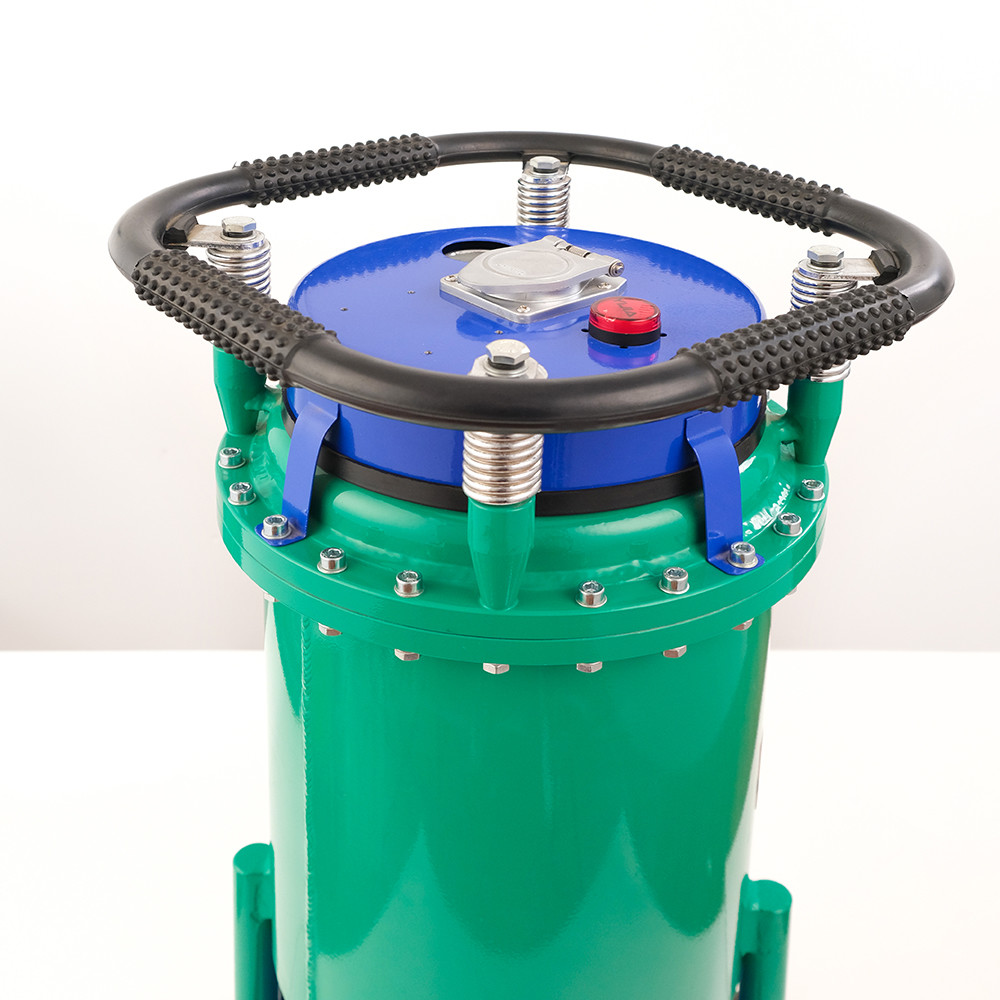

Characterized by a compact footprint, lightweight generator (26kg), strong penetration power, and high stability, this model serves as a classic solution for field and aerial inspection tasks.
Product features:
1.Light weight, portable, easy to take and operate.
2.Time delay function protect operator away from radiation
3.X-ray generator have over-temperature protection
4.Radiating time to cooling time 1:1
Main uses:
RD-2505 the technical parameters
|
|
Project
|
RD-2505
|
|
input
|
Input power
|
Single-phase 50Hz AC220V - 265V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
150~ 250 KVp
|
|
|
X ray tube current
|
5mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
2.0× 2.0
|
|
|
X-ray irradiation range
|
40±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ280×610
|
|
|
|
26
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
40 mmFe(5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins
|
