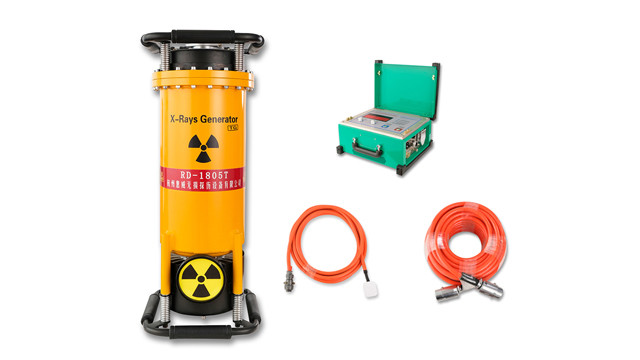

Non-Destructive Testing Equipment Supplier Industrial X Ray Machine Manufacturers For Weld Inspection
X-ray flaw detectors are specialized instruments crafted to identify and examine internal imperfections or defects within materials and components without causing any damage. As a non-destructive testing (NDT) technique, it's extensively applied across multiple industries to guarantee the integrity, quality, and safety of products and structures.
Core applications:
HUIWEI's flaw detector products have been broadly utilized for non-destructive testing in fields such as aerospace, welding engineering, shipbuilding, boiler piping, petrochemical engineering, aircraft manufacturing and maintenance, automotive industry, and defense sectors, among others.
RD-1803T the technical parameters
|
Project |
RD-1803T |
input |
Input power |
Single-phase 50Hz AC 220± 10% V |
|
Power supply capacity |
No less than 2.0 KVA |
output |
X - ray tube voltage |
50~ 180 KVp |
|
X ray tube current |
3mA |
|
mA Stability degree |
± 1% |
Ray tube |
Focal size |
0.9× 0.9 |
|
X-ray irradiation range |
45±5° |
Ray generator |
working pressure Cooling mode Insulation way |
0.45MPa ~ 0.5Mpa Anode ground connection radiator Strong wind cold Gas insulation SF6 |
|
Size weight (kg) |
Φ210×580 |
|
|
12 |
Maximum penetration |
Thickness steel A3(mm) |
25 mm (5 min) |
|
condition |
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5 |
|
sensitivity |
superior 2% |
controller |
Size weight Circuit |
325×270×180 < 9(kg) Automatic control and protection |
Environment |
working temperature relative humidity Altitude |
-30°~ +40° Not more than 85% Not higher 1500m |
methods |
fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins |
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.
3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
