RD-1803T The Ultimate Industrial X Ray Machine for Welding Inspection Efficiency and Accuracy
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
RD-1803 stands out as an advanced industrial X-ray machine incorporating revolutionary design principles. This product features a compact footprint, lightweight construction, and dependable durability, alongside a logically optimized internal structure. It pioneers the use of imported high-power components and integrates a robust system protection function. Suitable for power plants, chemical factories, aircraft manufacturing plants, boiler pressure vessel fabrication, aluminum tubing/sheet industries, and other applications requiring installation, maintenance, and non-destructive testing (NDT) in tight spaces.

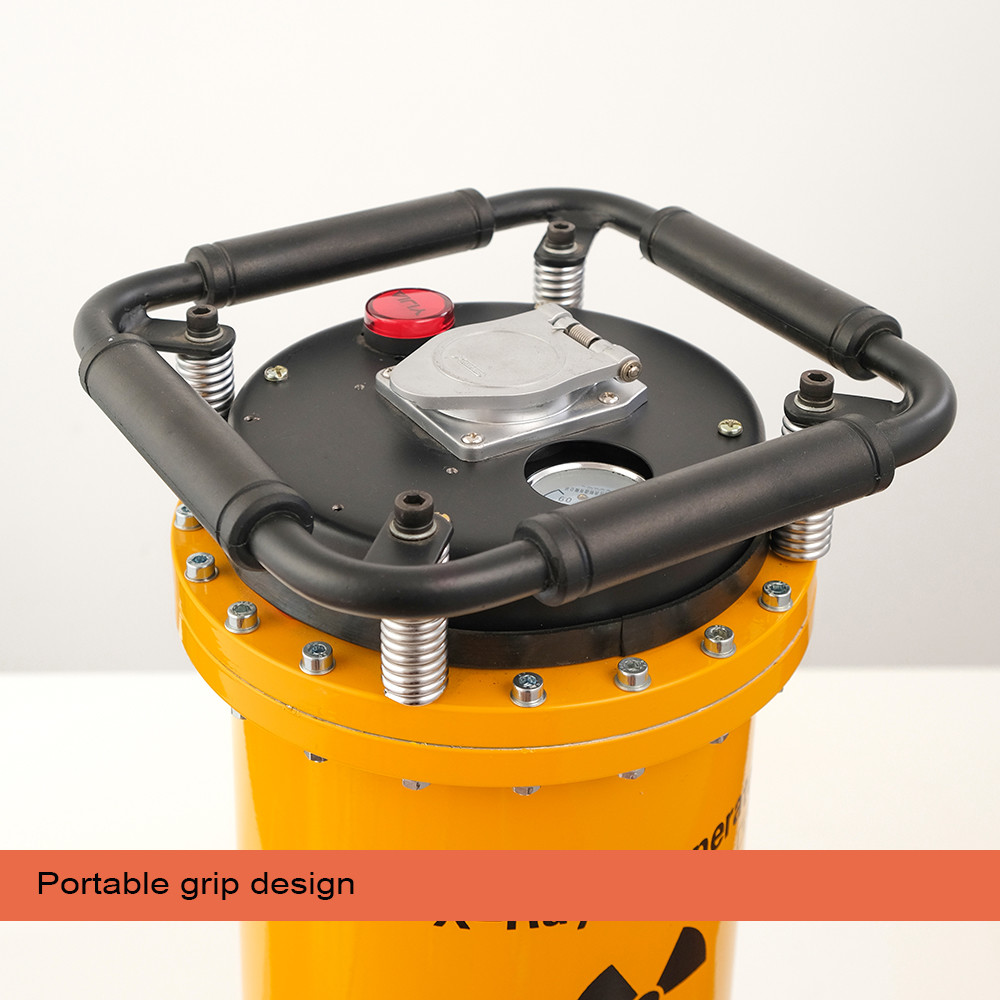

Designed for easy transportation, the generator weighs merely 12kg and showcases a sleek, refined design. This series of equipment is available in directional and circumferential types, with radiation angles of 40±5° and 360° respectively. It achieves a maximum penetration capacity of 20mm for A3 steel thickness.
RD-1803T the technical parameters
|
|
Project
|
RD-1803T
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
50~ 180 KVp
|
|
|
X ray tube current
|
3mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
0.9× 0.9
|
|
|
X-ray irradiation range
|
45±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ210×580
|
|
|
|
12
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
25 mm (5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins
|
