High Performance Welding Portable X Ray Flaw Detector For Petrochemical RD-300LG

1 set
MOQ
40000usd/set
Price
High Performance Welding Portable X Ray Flaw Detector For Petrochemical RD-300LG
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 12 Months
Power Supply: AC220V±10%
Max.penetration: 80mm(A3 STEEL)
Application: Industrial Field
Exposure Time: 30 Minutes
Film Type: Any Kinds Of Industrial Film
Voltage: 150-300kv
Function: Steel Defect,NDT Inspection Welding
Tube Current: 5mA
Weight: 45kg
Focus Spot: 3.0*3.0
Name: NDT Industrial X-ray Machine
Highlight:

Welding Portable X Ray Flaw Detector

,

Petrochemical Portable X Ray Flaw Detector

,

RD-300LG ndt radiography equipment
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-300LG
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,
Supply Ability: 500sets within one month
Product Description

            High Performance Welding Rt Equipment for Petrochemical Industrial NDT Inspection



Main introduction:

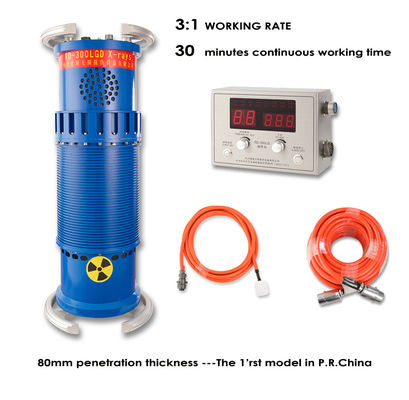

Advanced 300kV Industrial Radiography System (RD-300LG)‌

‌Core Technical Specifications‌

  • ‌Dual-Mode Operation‌: Configurable for both directional and panoramic exposure modes
  • ‌Enhanced Tube Technology‌: Features a 300kV ceramic emitter with superior thermal stability
  • ‌Optimized Duty Cycle‌:
    • ‌Mainland China‌: 4:1 operational ratio for intensive industrial applications
    • ‌International Markets‌: 3:1 ratio adapted for diverse field conditions
  • ‌Extended Runtime‌: Supports uninterrupted 30-minute continuous exposures

‌Performance Highlights‌

  • ‌Material Penetration‌: Capable of inspecting 66mm-thick A3 steel structures, with peak performance reaching 80mm penetration in equivalent materials
  • ‌Safety Integration‌: Automated door interlock system ensures operator protection during active imaging

‌Innovative Engineering Features‌

  • ‌Cooling Solution‌: Combines SF6 gas insulation with advanced anode air cooling for sustained thermal management1
  • ‌Environmental Design‌:
    • Zero ozone emission during operation
    • Reduced electromagnetic interference for safer workspaces3

‌Industry Applications‌

Primarily deployed for integrity assessment of critical energy infrastructure, including:

  • Cross-country petroleum pipelines
  • High-pressure gas transmission networks5

‌Compliance & Adaptability‌

  • Meets PRC's GB/T standards for non-destructive testing equipment
  • Modular architecture supports rapid configuration for both fixed-site and mobile deployments





RD-300LG Technical Parameter

Parameter Item RD-300LGD (Directional Radiation) RD-300LGP (Circumferential Radiation)
Model RD-300LGD RD-300LGP
Maximum X-ray Power Directional Radiation Circumferential Radiation
Input Power Supply AC220V±10% AC220V±10%
Maximum Penetration Capacity (mm) Steel 80 70
High Voltage Range (kV) 150~300 150~300
Tube Current (mA) 5 5
Focal Spot Size (mm) 3.0×3.0 1.5×3.0
Radiation Angle 45±5° 30×360°
Generator Dimension (mm) Φ350×885 Φ350×885
Generator Weight (kg) 45 45
Controller Dimension (mm) 205×145×80 205×145×80
Controller Weight (kg) 1.5 1.5
Working Mode Continuous operation, maximum single exposure time 99 minutes Continuous operation, maximum single exposure time 99 minutes

Company profile

Hangzhou Huiwei NDT Equipment Co., Ltd. is located in Fuchunwan New Town, Fuyang District, Hangzhou. Founded in 1993, we are a high-tech enterprise integrating R&D, production and sales of industrial X-ray flaw detection equipment.
We have long focused on the development of portable industrial X-ray flaw detectors. We launched the RD-300LG series portable X-ray unit supporting 99-minute continuous exposure in 2016, and independently developed the G300 series high-frequency DC industrial X-ray machine in 2018. The company holds 25 authorized patents, and has obtained qualifications including Zhejiang Sci-tech Small & Medium Enterprise, Zhejiang Specialized, Refined, Unique & Innovative SME, and Level 3 Work Safety Standardization Certification.
Our products serve industries such as oil & gas pipelines, pressure vessels, chemical engineering and aerospace. We maintain long-term partnerships with major domestic enterprises. Our equipment is exported to Saudi Arabia, Brunei, Indonesia, Uganda, Tanzania, Algeria and other countries, with extensive experience in overseas project supply.
Adhering to the philosophy of "Pragmatic Innovation, Pursuit of Excellence", we strive to become a global leader in high-performance industrial radiation inspection equipment, delivering reliable products and professional services for customers worldwide.
