Petrochemical Industry Portable X Ray Flaw Detector 300kV Industrial Radiography System

            Non-Destructive Testing with industrial x ray inspection for Welding Rt Equipment in Petrochemical Industry

Product Overview
The RD-300LG represents a leading-edge 300kV Industrial Radiography System, engineered for precision and reliability in demanding industrial environments.

Technical Specifications

• Dual Exposure Modes: Configurable for directional or panoramic radiation, adapting to diverse inspection needs.

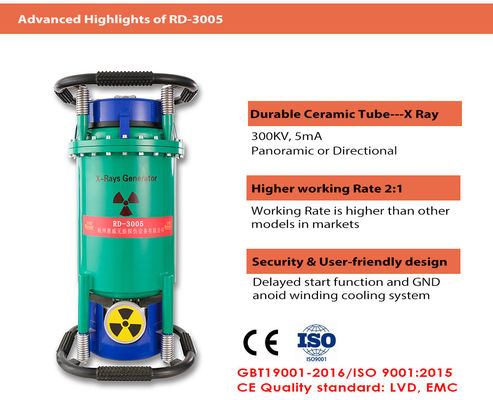

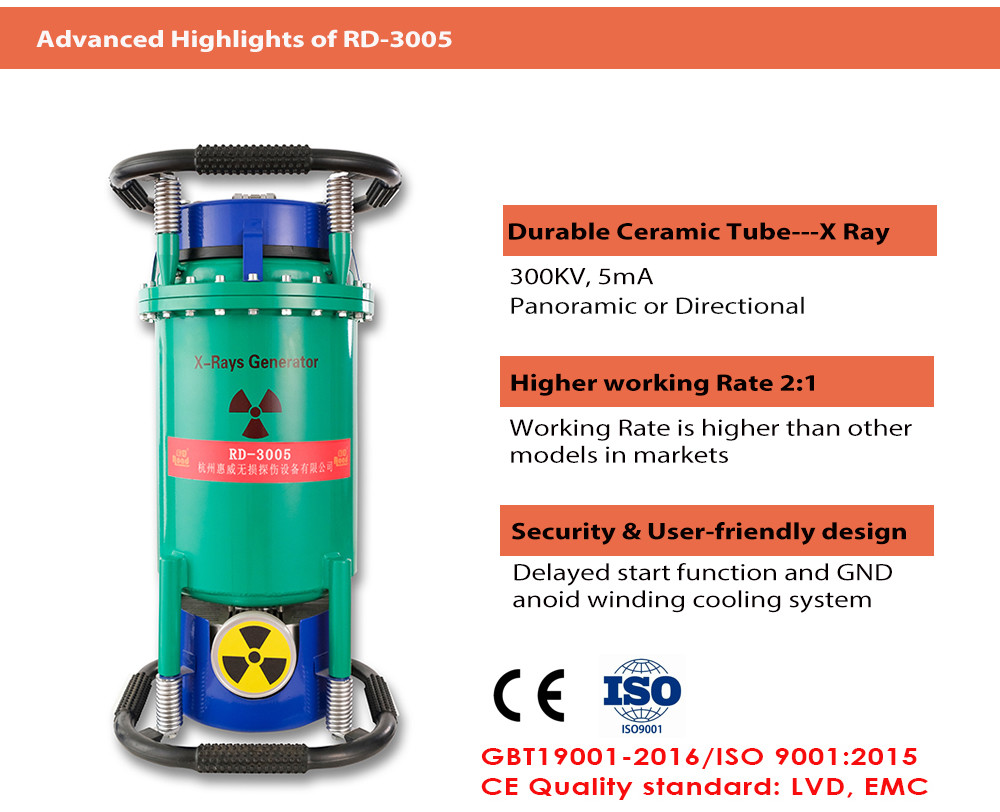

• Premium Tube Technology: Features a 300kV ceramic emitter with enhanced thermal stability for prolonged use.

• Customizable Duty Cycles:

◦ China: 4:1 cycle (40 minutes operational) for heavy-duty industrial use.

◦ Global: 3:1 cycle tailored to varied international field conditions.

• Continuous Operation: Supports up to 30 minutes of uninterrupted exposure for efficient workflow.

Performance Metrics

• Penetration Capability: Effectively inspects 66mm-thick A3 steel, with a maximum equivalent penetration of 80mm in similar materials.

• Safety-Centric Design: Automated door interlock system prioritizes operator protection during imaging processes.

Innovative Features

• Dual Cooling Mechanism: Combines SF₆ gas insulation with advanced anode air cooling to maintain optimal temperature control.

• Eco-Conscious Engineering:

◦ Emits zero ozone during operation.

◦ Reduces electromagnetic interference for safer, cleaner workspaces.

Target Applications
Ideal for integrity assessment in critical energy infrastructure, including:

• Long-haul petroleum pipeline networks

• High-pressure gas transmission systems

Standards & Flexibility

• Compliant with PRC’s GB/T standards for non-destructive testing equipment.

• Modular architecture allows rapid setup for both stationary and mobile applications.

RD-300LG Technical Parameter

Item	Technical Data
	AC Power	AC 220V+/-10%, 50Hz
Output	Tube current	5mA
	High voltage transfer input voltage fluctuation	+/- 1%
X Ray Generator	Cooling method	Force air cooling
	Insulated method	SF6 gas insulation
	Soft working pressure (20ºC)	0.35~0.45Mpa
Working Condition	Temperature	-30-40ºC
	Relative Humidity	<85%
	Altitude	1000m
Max Penetration Condition	Steel	A3(mm)
	Focal length	600m
	Exposure	≤30mAmin
	Film	Double-sided lead foil sensitization
	Darkroom treatment	20+/-2ºC, 5min
	Optic density	D≥2.0

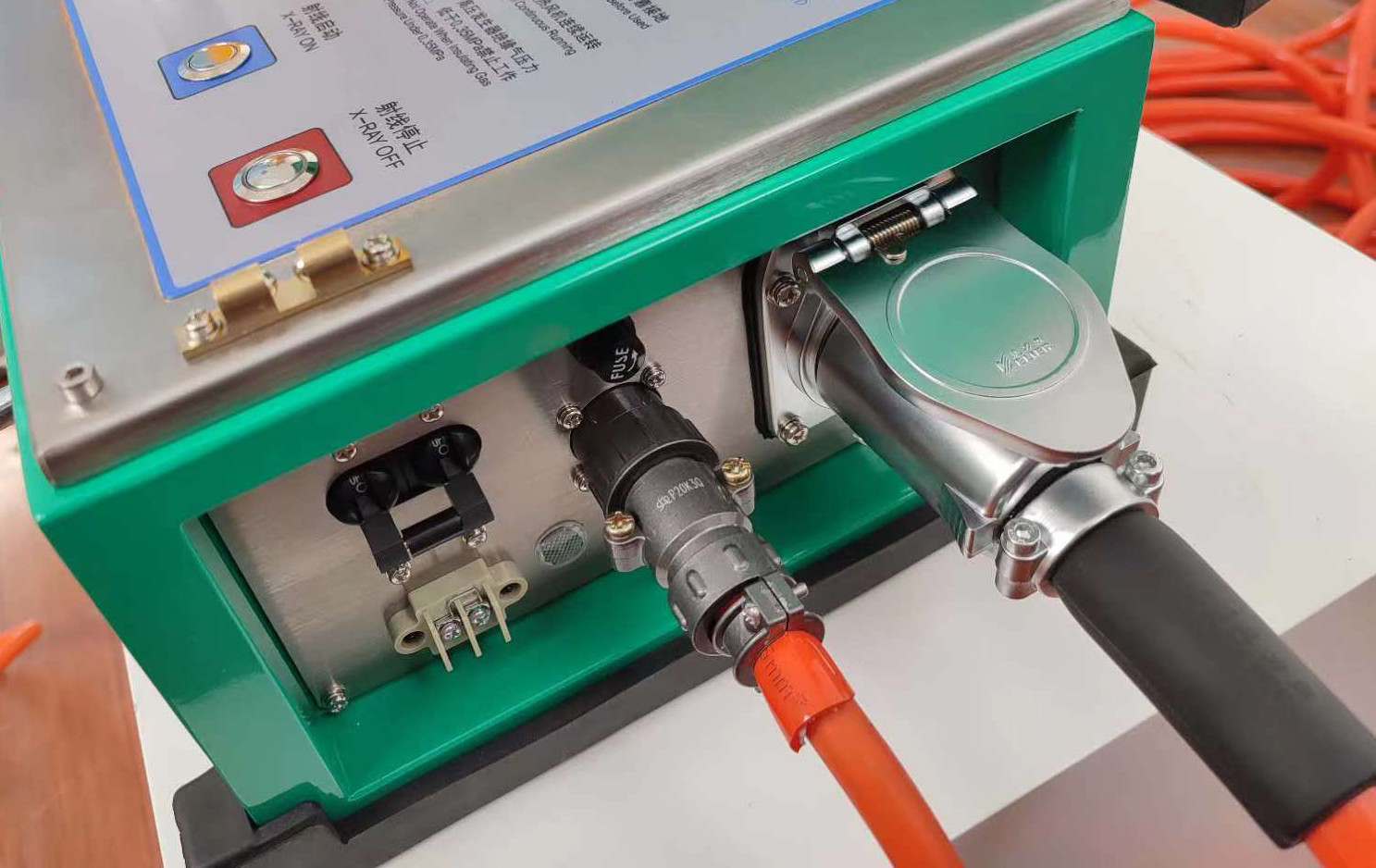

The controller	Size
	Weight
	Timing error	5min +/- 10%
Working Rate	Working & rest 2:1 working rate, the max exposure time 9.5min

RFQ:

Q1. What certifications are provided?
Most products are CE and ISO certified. We consistently deliver high-quality products to eliminate any defects, and use protective packaging to prevent damage during shipping.

Q2. What language support is available?
The operation panel, display, and manuals are in pure English. Installation and operation videos can be provided as guidance if required.

Q3. What after-sales services do you offer?

• Online guidance: Real-time support via video call or voice chat.

• During the warranty period, free spare parts will be shipped if quality issues render the product inoperative.

• Free technical guidance is available indefinitely.

Q4. Can training be provided?

• Your technicians can visit our factory for training.
