Home /Products/Portable X Ray Flaw Detector/Industrial Portable X Ray Flaw Detector For Non Destructive Testing

Industrial Portable X Ray Flaw Detector For Non Destructive Testing

1 set
MOQ
6000usd/set
Price
Industrial Portable X Ray Flaw Detector For Non Destructive Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: AC220V±10%
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Application: Industrial Field
Max.penetration: 25mm(A3 STEEL)
Warranty: 12 Months
Exposure Time: 5 Minutes
Voltage: 50-180kv
Name: NDT Industrial X-ray Machine
Tube Current: 3mA
Film Type: Any Kinds Of Industrial Film
Weight: 12kg
Focus Spot: 0.9*0.9
Highlight:

Industrial Portable X Ray Flaw Detector

,

180kv Portable X Ray Flaw Detector

,

Non Destructive Testing ndt x ray
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-1803T
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

              PRODUCT DESCRIPTION



 HUIWEI Flaw Detector Industrial X Ray Machine for Non-Destructive Testing in Welding and Manufacturing Industries

Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.



What is X-ray Flaw Detector
An X-ray Flaw Detector is a highly specialized device designed to detect and analyze internal flaws or defects in materials and components without damaging them. This non-destructive testing (NDT) method is widely used across various industries to ensure the integrity, quality, and safety of products and structures.

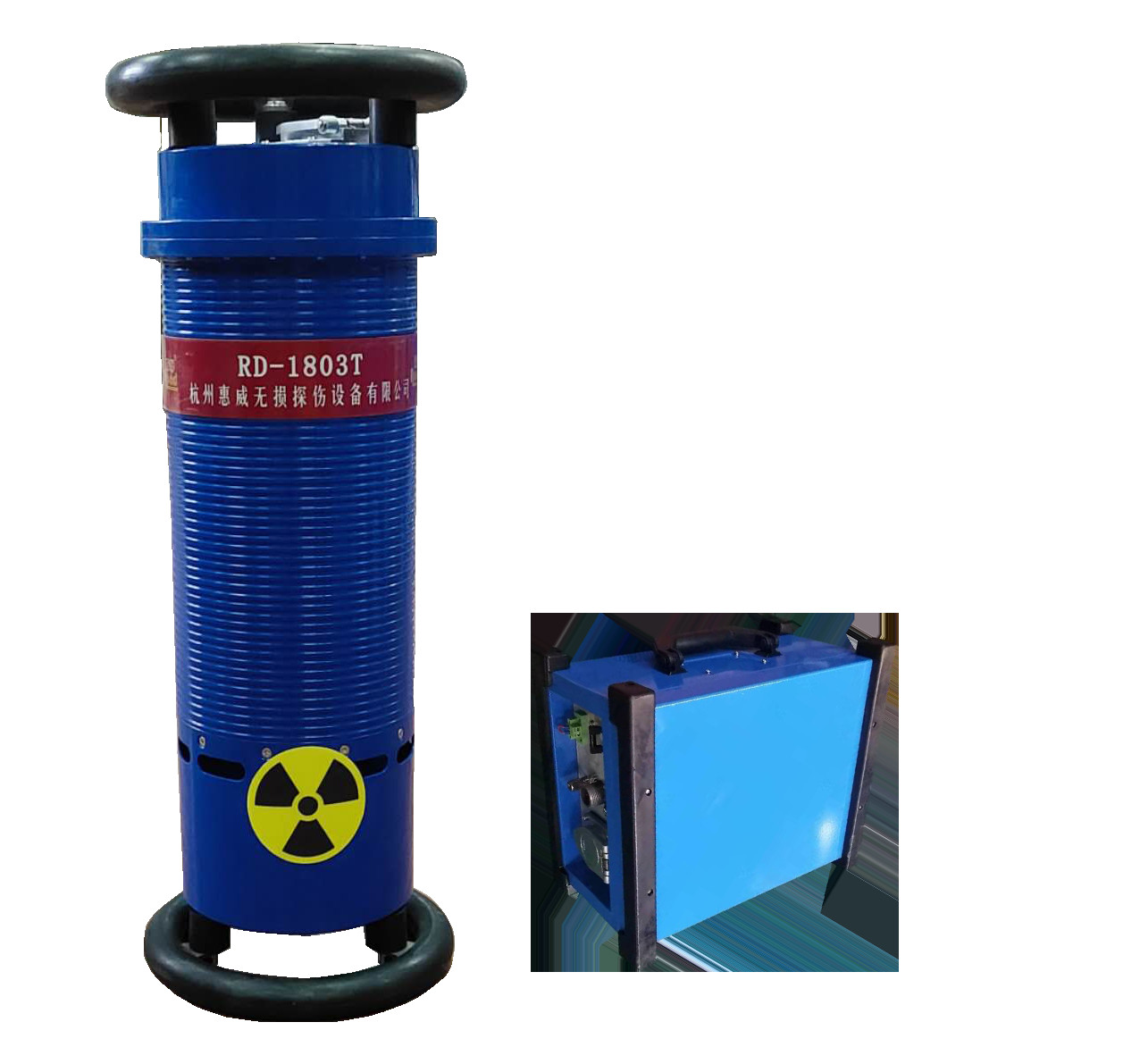

RD-1803T the technical parameters



Project

RD-1803T

input

Input power

Single-phase  50Hz AC 220± 10% V



Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

50~ 180 KVp



X ray tube current

3mA



mA Stability degree

± 1%

Ray tube

Focal size

0.9× 0.9



X-ray irradiation range

45±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6



Size

weight (kg)

Φ210×580





12

Maximum penetration

Thickness steel A3(mm)

25 mm (5 min)



condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins



Industrial Portable X Ray Flaw Detector For Non Destructive Testing 0
