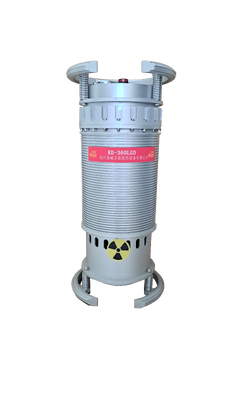

RD-360LGD 360kV Portable Industrial X Ray Machine 80mm Steel Penetration Wholesale Distributor for NDT Inspection

1 set
MOQ
35000-40000usd/set
Price
RD-360LGD 360kV Portable Industrial X Ray Machine 80mm Steel Penetration Wholesale Distributor for NDT Inspection
Features Gallery Product Description Chat Now
Features
Specifications
Product Type: Portable Industrial X Ray Flaw Detector, Directional
Radiation Angle: 40 +/-5 Deg (directional)
Tube Voltage Range: 200-360 KVp
Tube Current: 5 MA (stability +/-1%)
Focal Spot: 3.0 X 3.0 Mm
Max Steel Penetration: 80 Mm A3 Steel (30 Min Exposure)
Penetration Condition: 600mm FFD, Agfa Film, Double-sided Lead Foil, 22 Deg C, Density >=1.5
Image Sensitivity: Better Than 2%
Work Mode: Automatic 3:1 Work-rest, Max 30 Min Continuous Exposure
Power Supply: Single Phase AC 220V +/-10%, 50Hz, >=3.0 KVA
Controller Input: Wide Range AC 120-265V (adaptive To Local Grids)
Insulation: SF6 Gas Insulated, Working Pressure 0.4-0.5 MPa
Cooling: Anode Grounded Radiator With Forced Air Cooling
Generator Size / Weight: Phi350 X 770 Mm / 42 Kg
Controller Model / Weight: HW-001 / 8 Kg, 325 X 270 X 180 Mm
Operating Temperature: -30 To +40 Deg C, Humidity <=85%, Altitude <=1500 M
Cables & Accessories: 25 M Control Cable, 5 M Power Cord, 10 Spare Fuses
Protections: MA/kV Real-time Protection, Over-temperature, Safety Door Interlock, Discharge Auto-detection, Auto Training Mode
Functions: Delayed Exposure, Cumulative Exposure Record, Stepless Knob Adjustment
Application: Thick-wall Boiler, Pressure Vessel, Pipeline And Structural Weld Radiography
Warranty: 12 Months
Highlight:

360kV Portable Industrial X Ray Machine

,

80mm Steel Penetration X Ray Generator

,

Wholesale Portable X Ray Flaw Detector
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: HUIWEI
Certification: CE, ISO 9001
Model Number: RD-360LGD
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 5-8working days
Payment Terms: L/C,T/T
Supply Ability: 100sets within one month
Product Description

RD-360LGD — 360kV Portable Industrial X Ray Machine

80mm A3 steel penetration • 42kg SF6-insulated generator • wide-voltage controller — the reliable partner for NDT distributors worldwide

A High-Energy Performer Your Customers Will Ask For

RD-360LGD delivers 200-360 kVp output with a 3.0 x 3.0mm focus, penetrating 80mm of A3 steel in a single 30-minute exposure — built for the thick-wall boiler, pressure vessel and pipeline radiography jobs that lower-kV machines cannot handle. As a distributor, adding RD-360LGD to your portfolio means you can answer the toughest requests from inspection companies, fabrication shops and engineering contractors in your market.

Why Distributors Choose HUIWEI

Wide-Voltage Controller
AC 120-265V adaptive input — one model fits power grids across different countries and regions		 Stable Supply, Fast Delivery
500 sets monthly capacity; production lead time 7-15 working days, stock 2-4 days
Market-Ready Certification
CE and ISO 9001 certified, easing import compliance in your market		 Low After-Sales Burden
12-month warranty, modular HW-001 controller, long-term spare parts, remote technical support
Attractive Margin Structure
Direct factory pricing with tiered volume discounts for stocking distributors		 Flexible Trial Orders
MOQ 1 set — validate the product in your market before scaling up
Field-Proven Reliability
30+ years of X-ray expertise, anode-grounded radiator cooling, SF6 insulation, all-aluminum sealed tube barrel		 Easy Local Support
English manuals, online training and video troubleshooting support for your service team

Key Features

360kV High Energy Output
200-360 kVp stepless adjustment for thick-wall inspection		 80mm Steel Penetration
A3 steel at 600mm FFD within 30 minutes, density ≥1.5
Automatic 3:1 Work-Rest
Up to 30 minutes continuous exposure per shot with automatic rest management		 Lightweight Field Design
Generator 42kg with end rings, controller only 8kg — easy rigging and transport
Smart Protection System
mA/kV real-time protection, over-temperature, safety door interlock, discharge auto-detection		 Fully Automatic Training
Self-conditioning mode with discharge self-protection extends X-ray tube life
Rugged SF6 Insulation
Sealed aluminum barrel with SF6 gas insulation, working pressure 0.4-0.5 MPa		 Field-Friendly Operation
Stepless knobs, delayed exposure, cumulative exposure records, LED status display

Technical Parameters

Product TypePortable industrial X ray flaw detector, directional
Radiation Angle40 +/-5 deg (directional)
Tube Voltage Range200-360 kVp
Tube Current5 mA (stability +/-1%)
Focal Spot3.0 x 3.0 mm
Max Steel Penetration80 mm A3 steel (30 min exposure)
Penetration Condition600mm FFD, Agfa film, double-sided lead foil, 22 deg C, density >=1.5
Image SensitivityBetter than 2%
Work ModeAutomatic 3:1 work-rest, max 30 min continuous exposure
Power SupplySingle phase AC 220V +/-10%, 50Hz, >=3.0 kVA
Controller InputWide range AC 120-265V (adaptive to local grids)
InsulationSF6 gas insulated, working pressure 0.4-0.5 MPa
CoolingAnode grounded radiator with forced air cooling
Generator Size / WeightPhi350 x 770 mm / 42 kg
Controller Model / WeightHW-001 / 8 kg, 325 x 270 x 180 mm
Operating Temperature-30 to +40 deg C, humidity <=85%, altitude <=1500 m
Cables & Accessories25 m control cable, 5 m power cord, 10 spare fuses
ProtectionsmA/kV real-time protection, over-temperature, safety door interlock, discharge auto-detection, auto training mode
FunctionsDelayed exposure, cumulative exposure record, stepless knob adjustment
ApplicationThick-wall boiler, pressure vessel, pipeline and structural weld radiography
Warranty12 months

Standard Configuration

ItemQtyRemark
X-ray generator (RD-360LGD)1SF6 insulated, 42kg, 200-360kVp
HW-001 intelligent controller18kg, automatic control & protection
Control cable125 meters
Power cord15 meters
Spare fuses10Included
Operator manual & quality certificate1 setEnglish version

After-Sales Service

Warranty12 months from shipment; free repair or replacement of defective parts
Technical SupportRemote troubleshooting by experienced engineers via email / video call
TrainingEnglish operator manual, online training and commissioning guidance for your team
Spare Parts SupplyLong-term availability: X-ray tube, high-voltage transformer, controller boards, cables, fans
Maintenance CostModular controller design keeps repair simple, fast and affordable

Delivery & Business Terms

MOQ1 set (trial orders welcome, volume discounts available)
Delivery Time7-15 working days for production; 2-4 working days if in stock
Supply Ability500 sets per month
Payment TermsT/T, L/C, Western Union,
Packaging & ShippingExport plywood case with shock-proof foam; sea or air freight

About HUIWEI

Hangzhou Huiwei NDT Equipment Co., Ltd. (est. 1993) is a national high-tech enterprise specialized in portable industrial X-ray inspection equipment. With a 12,000 m² manufacturing base, a joint R&D center with China Jiliang University and 31 patents & software copyrights, HUIWEI is CE and ISO 9001 certified. The RD-360LG series was developed under China's "Made in China 2025" strategy to meet the growing demand for high-energy radiography of thick-wall industrial components, and has been widely used by inspection companies, boiler and pressure vessel manufacturers and pipeline contractors worldwide.

Become a HUIWEI distributor

Contact us for wholesale pricing, market protection policy and technical support for your team.
