Home /Products/Industrial X Ray Machine/RD-360LG High-Power Industrial X-Ray Flaw Detector | 360kV Continuous Working, Max 80mm Steel Penetration

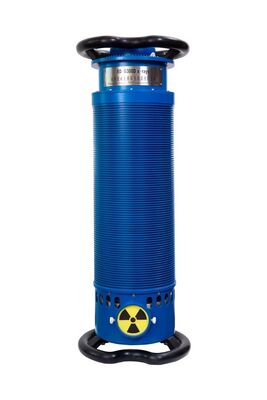

RD-360LG High-Power Industrial X-Ray Flaw Detector | 360kV Continuous Working, Max 80mm Steel Penetration

1 set
MOQ
52000usd/set
Price
RD-360LG High-Power Industrial X-Ray Flaw Detector | 360kV Continuous Working, Max 80mm Steel Penetration
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 80mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 30-300kv
Exposure Time: 30 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 1-3mA
Focus Spot: 2.5*2.5
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-360LG
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

       RD-360LG High-Power Industrial X-ray Flaw Detector | 360kV Continuous Working, Max 80mm Steel Penetration

Product Description


The RD-360LG industrial X-ray flaw detector is a high-energy flagship product developed by Hangzhou Huiwei based on 30 years of NDT technology accumulation. Adopting 360kV high-voltage stable output technology, it provides a perfect solution for thick-wall and long-focal-length weld inspection. It can replace part of Ir-192 radioactive sources, effectively reducing radiation risks and management costs. This machine is widely used in long-distance pipelines, pressure vessels, chemical tanks and large industrial equipment for non-destructive testing.


Key Product Advantages


  1. Ultra-High Penetration

    Max penetration up to 80mm Q235 steel, fully meeting the inspection needs of thick-wall workpieces.
  2. Continuous & Efficient Operation

    3:1 duty cycle, supports up to 30 minutes of continuous exposure, improving work efficiency by 50%.
  3. Safer & Eco-Friendly

    Ideal alternative to Ir-192 radioactive sources, eliminating the risks of radioactive source transportation and management.
  4. Stable & Durable

    Modular design and air duct cooling system ensure stable performance in harsh field environments.
  5. Flexible Radiation Modes

    Available in directional (D) and circumferential (P) versions to adapt to different workpiece structures.
  6.

    Application Industries


  7. Oil & gas long-distance pipelines
  8. Boiler & pressure vessels
  9. Chemical storage tanks
  10. Electric power construction
  11. Shipbuilding & aerospace
  12. Large steel structure welding inspection



RD-360LG Technical Parameter

model RD-360LGD RD-360LGP
Outgoing wiring harness directional radiation Circumferential radiation
Input power supply AC22V±10%
Maximum transmittance (mm) steel 80mm(steel) 70mm(steel)
High voltage range (kV) 200-360 200-360
Tube current (mA) 5 5
Focus size (mm) 3.0x3.0 1.0x3.0
Shooting angle 45±5° 360°
Generator size Φ350x770 Φ350x770
Generator weight (Kg) 42 40
operation mode 3:1Continuous exposure rest



Company Profile


Hangzhou Huiwei Nondestructive Testing Equipment Co., Ltd., founded in 1993, is a national high-tech enterprise and national "Specialized, Fined, Peculiar, New" enterprise focusing on R&D, production and sales of portable industrial X-ray flaw detectors. With 25+ authorized patents, our products are widely used in oil & gas, petrochemical, electric power, aerospace and pressure vessel industries. We have established long-term cooperation with CNPC, Sinopec and other large enterprises, providing reliable NDT solutions for global customers.
