Portable Industrial X Ray Machine with 50mm Penetration and Continuous Exposure for NDT Equipment

1 set
MOQ
19000usd/set
Price
Portable Industrial X Ray Machine with 50mm Penetration and Continuous Exposure for NDT Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Industrial X Ray Testing Xxg3005,x-ray Welding Machine Ndt,X-ray Inspection Systems,NDT Industrial Film Processing Machine,industrial NDT Equipment NDT X Ray Testing Machine
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 50mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 170-300kv
Exposure Time: 5 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 5mA
Controller Weight: 9kg
Focus Spot: 0.9*0.9
Generator Weight: 28kg
Highlight:

portable industrial x ray machine

,

x ray machine for steel testing

,

non destructive testing x ray device
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-3005
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

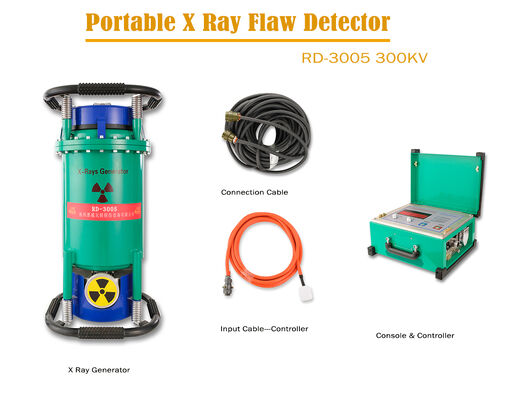

RD-3005 Industrial X-ray Flaw Detector | Portable NDT Equipment



Product Overview


The RD-3005 Industrial X-ray Flaw Detector from Hangzhou Huiwei Detection is a high-performance portable solution designed for industrial non-destructive testing (NDT). As an efficient X-ray flaw detector, it combines a compact, portable design with powerful penetration capabilities and reliable performance, making it the ideal tool for complex applications such as chemical tanks, large-diameter pipelines, and pressure vessels, significantly boosting your non-destructive testing efficiency.


Key Technical Features


  • Ultra-portable Design: Weighing only 34kg, the generator is a highly competitive portable X-ray machineon the market, easy for single-person transport and on-site deployment, perfectly adapting to various harsh working environments.
  • High Efficiency & Stability: Supports up to 15 minutes of continuous exposure without 1:1 rest, increasing work efficiency by up to 50%, especially suitable for high-intensity tasks like double-wall single-image radiography on chemical tanks and large-diameter pipelines.
  • Superior Penetration: The directional radiation model (RD-3005) can penetrate up to 50mm of Q235 steel, while the circumferential radiation model (RD-3005H) can penetrate up to 45mm, meeting the stringent demands of various industrial X-ray testing applications.
  • Dual Application Options: Available in both directional (RD-3005) and circumferential (RD-3005H) radiation models, offering flexible choices for different inspection scenarios, making it a reliable assistant in pipeline inspection, pressure vessel testing, and more.

Main uses:

Portable Industrial X Ray Machine with 50mm Penetration and Continuous Exposure for NDT Equipment 0

RD-3005the technical parameters





Project

RD-3005

input

Input power

Single-phase  AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

150~ 300 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

50 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins


Portable Industrial X Ray Machine with 50mm Penetration and Continuous Exposure for NDT Equipment 1
