This device uses ceramic X-ray tubes to meet the needs of on-site X-ray transmission inspection operations, achieving high energy, small and lightweight, continuous exposure, and automated operation. It also adopts a gas insulated anode grounding method, making it a fully automatic X-ray transmission inspection device.

The controller adopts a user-friendly interface, with a unique LED Chinese font status display. The parameter adjustment uses an industrial stepless knob method, making it eye-catching and quick to adjust. The internal circuit is of modular structure, with high reliability and easy disassembly and maintenance. The fully automatic training machine mode with generator discharge automatic voltage reduction effectively protects the lifespan of the X-ray tube. Accurate fault detection, convenient for users to use and maintain.

Industry leading MIXN series expert intelligent X-ray control system with high intensity anti-interference;

Modular main circuit structure, duct type heat dissipation, continuous operation with high reliability;

The industrial stepless knob is used for time and kilovolt adjustment, which is fast, convenient, and reliable;

This series of X-ray machines is an SF6 gas insulated portable X-ray flaw detector, consisting of the following parts:

(1) X-ray generator

(2) Intelligent controller

(3) Power cable (AC220V, 15A, 3P)

(4) Connecting cable (12P)

(5) Attachmen

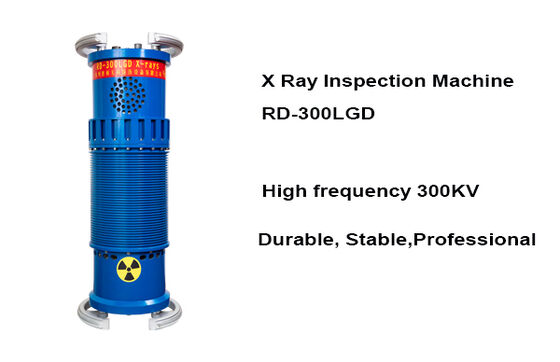

 X-ray generator

The X-ray generator is a combination structure, with a high-voltage transformer (including X-ray tube filament winding) and X-ray tube installed in the same barrel. The barrel is made of aluminum and is sealed with sulfur hexafluoride (SF6 is a type of fluorochemical) insulation gas. It has good electrical insulation performance and chemical stability for high voltage, and is harmless to human health.

To facilitate the heat dissipation of the X-ray tube, an anode grounding method is adopted. A multi blade aluminum heat sink is installed at the protruding end of the anode target, and a fan is installed on the heat sink to force cooling to enhance the heat dissipation effect. A layer of anti scattering lead plate is also laid inside the barrel.

Secondly, a temperature relay is installed on the iron core inside the barrel and on the external radiator to prevent damage to the machine due to excessive temperature. There is a flash power supply for ray warning on the generator, which can perform ray warning. The X-ray generator is equipped with end rings at both ends, which can be placed vertically or horizontally for easy handling.

It mainly consists of the following parts:

(1) Pipe barrel

(2) Transformer core

(3) Ceramic X-ray tube

(4) High voltage transformer (shared by filament coils)

(5) Radiator and fan motor for X-ray tube cooling (DC24V)

(7) Temperature relay, air pressure indicator

(8) Power socket (3P) Cable socket (12P)

(9) Protection end ring

(10) Warning light indicating the occurrence of radiation

(11) Ray source window

(12) Scattering line shielding lead plate

(13) Misoperation of safety lock

(14) Door crane interlocking device
