Industrial X Ray Machine Featuring Continuous 15 Minute Exposure Operation and High Stability for Non Destructive Testing

1set
MOQ
25000-30000usd/set
Price
Industrial X Ray Machine Featuring Continuous 15 Minute Exposure Operation and High Stability for Non Destructive Testing
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: X-ray Welding Machine Ndt
Warranty: 12 Months
Usage: Inspection Welding,Auto Testing Machine,X-ray Inspection
Power Supply: AC220V±10%
Application: Industrial,Industrial X-Ray Testing
Function: Steel Defect,NDT Inspection Welding
Max. Penetration: 55m
Film Type: Any Kinds Of Industrial Film
Voltage: 200~360V
Exposure Time: 15 Minutes
Basic Infomation
Place of Origin: CHINA
Brand Name: HUIWEI
Certification: CE, ISO 9001
Model Number: RD-3605
Payment & Shipping Terms
Packaging Details: Export standard packaging
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets per month
Product Description

X-Ray Flaw Detector Industrial Generator NDT Equipment X Ray Machine RD-3605



Product Introduction



The RD-3605 is a portable X-ray flaw detector designed for industrial applications. Its compact and lightweight design facilitates ease of transport and handling, while maintaining robust penetration capabilities. The unit is engineered to enhance operational efficiency, offering continuous exposure for up to 15 minutes without requiring a 1:1 rest period, thereby improving workflow by up to 50%. It is suitable for deployment in power plant installations, shipbuilding, pipeline inspections, and related fields. Directional and circumferential versions are available to accommodate diverse inspection requirements.



RD-3605 Technical Specifications



  Item RD-3605
Input Input Power Supply Single-phase 50Hz AC 220±10% V
Power Supply Capacity Not less than 3.0 KVA
Output X-ray Tube Voltage 200~ 360 KVp
X-ray Tube Current (mA) 5mA
Stability ± 1%
Radiator Focus Size 3.0× 3.0
Radiation Angle 40±5°
Radiation generator Working pressure; Cooling method; Insulation method

0.45MPa ~ 0.5MPa

Anode grounded radiator with forced air cooling

Gas insulated SF6

Dimensions

Weight (kg)

 Φ320×320×640
34
Maximum Penetration Thickness steel A3 (mm) 55(5min)
Conditions Focal length 600mm, Agfa film, double-sided lead foil sensitizer, chemical temperature 22 degrees Celsius, film density ≥2.0.
  Sensitivity Better than 2%
Controller

Dimensions

Weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection
Environment

Operating temperature

Relative humidity

Altitude

-30°C to +40°C;

not exceeding 85%;

not exceeding 1500 meters.
Method Fully automatic 2.5:1 work/rest cycle, longest continuous exposure time is 15 minutes.

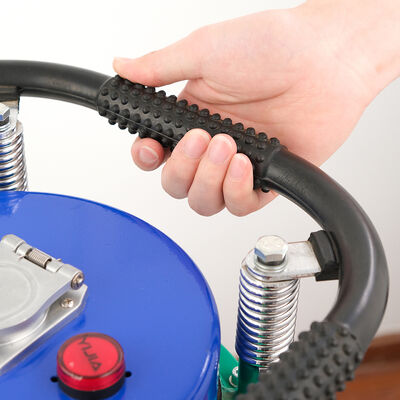

Industrial X Ray Machine Featuring Continuous 15 Minute Exposure Operation and High Stability for Non Destructive Testing 0

Industrial X Ray Machine Featuring Continuous 15 Minute Exposure Operation and High Stability for Non Destructive Testing 1

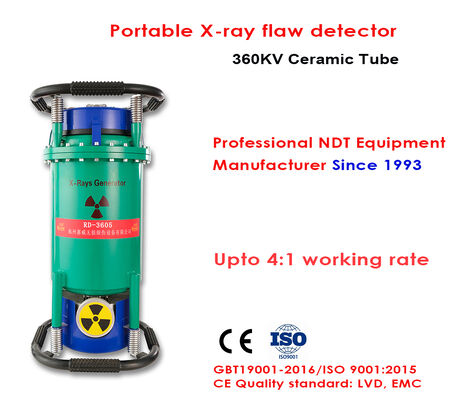

Industrial X Ray Machine Featuring Continuous 15 Minute Exposure Operation and High Stability for Non Destructive Testing 2
