X-Ray Flaw Detector Industrial Generator NDT Equipment X Ray Machine RD-3605

1set
MOQ
25000-30000usd/set
Price
X-Ray Flaw Detector Industrial Generator NDT Equipment X Ray Machine RD-3605
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: X-ray Welding Machine Ndt
Warranty: 12 Months
Usage: Inspection Welding,Auto Testing Machine,X-ray Inspection
Power Supply: AC220V±10%
Application: Industrial,Industrial X-Ray Testing
Function: Steel Defect,NDT Inspection Welding
Max. Penetration: 55m
Film Type: Any Kinds Of Industrial Film
Voltage: 200~360V
Exposure Time: 15 Minutes
Basic Infomation
Place of Origin: CHINA
Brand Name: HUIWEI
Certification: CE, ISO 9001
Model Number: RD-3605
Payment & Shipping Terms
Packaging Details: Export standard packaging
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets per month
Product Description

X-Ray Flaw Detector Industrial Generator NDT Equipment X Ray Machine RD-3605



Product Introduction

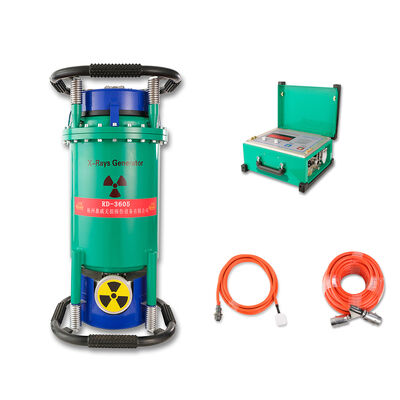

The RD-3605 is a small, lightweight, compact, portable industrial X-ray flaw detector with strong penetration, saving time and effort, high stability, low failure rate, and continuous 15-minute exposure operation without 1:1 rest. It is suitable for X-ray non-destructive testing in power plant installations, shipbuilding, chemical pipelines, chemical containers, natural gas and oil pipelines, chemical spherical tanks, and large-diameter pipelines (double-wall single-image radiography). It improves work efficiency by 50%. The equipment is lightweight and portable, with the generator weighing only 34kg, and features a compact design. This series of equipment is available in directional and circumferential versions, with a maximum penetration thickness of 55mm for Q235 steel.



RD-3605 Technical Specifications



  Item RD-3605
Input Input Power Supply Single-phase 50Hz AC 220±10% V
Power Supply Capacity Not less than 3.0 KVA
Output X-ray Tube Voltage 200~ 360 KVp
X-ray Tube Current (mA) 5mA
Stability ± 1%
Radiator Focus Size 3.0× 3.0
Radiation Angle 40±5°
Radiation generator Working pressure; Cooling method; Insulation method

0.45MPa ~ 0.5MPa

Anode grounded radiator with forced air cooling

Gas insulated SF6

Dimensions

Weight (kg)

 Φ320×320×640
34
Maximum Penetration Thickness steel A3 (mm) 55(5min)
Conditions Focal length 600mm, Agfa film, double-sided lead foil sensitizer, chemical temperature 22 degrees Celsius, film density ≥2.0.
  Sensitivity Better than 2%

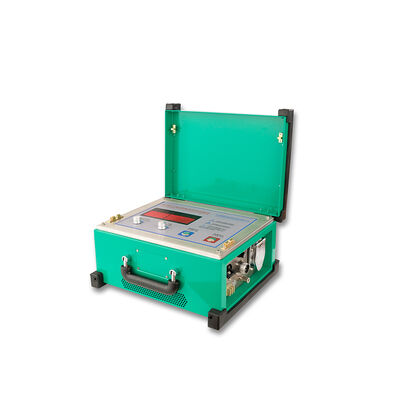

Controller

Dimensions

Weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection
Environment

Operating temperature

Relative humidity

Altitude

-30°C to +40°C;

not exceeding 85%;

not exceeding 1500 meters.
Method Fully automatic 2.5:1 work/rest cycle, longest continuous exposure time is 15 minutes.



X-Ray Flaw Detector Industrial Generator NDT Equipment X Ray Machine RD-3605 0

X-Ray Flaw Detector Industrial Generator NDT Equipment X Ray Machine RD-3605 1
