NDT radiographic testing is a nondestructive testing (NDT)that uses x ray to examine the internal structure of some materials. The term NDT stands for non-destructive testing. This type of testing is often used in the manufacturing and aerospace industries. NDT X-ray testing can be used to detect a variety of different flaws, including cracks, porosity, and inclusions.
Main usage:
All-Aluminum Heat Dissipation System: Utilizing all-aluminum materials and a unique integrated heat dissipation design, this device maintains optimal performance under high loads.
Specialized Tube Core: Utilizing a specialized tube core, this device offers excellent shock resistance, ensuring high reliability and a long service life.
Compact Design: The device's compact size (only 154 mm in diameter) and light weight make it convenient for use in space-constrained environments. Se75 radioactive source replacement: This radioactive source offers comparable penetration capabilities to the Se75 source, capable of penetrating 25mm thick Q235 steel, providing highly effective inspection results.
Adaptable to confined spaces: This radioactive source is particularly suitable for imaging in confined or difficult-to-access spaces, offering high flexibility.
Built-in constant voltage module: This module operates stably over a wide voltage range of 190-240V/50Hz, making it ideal for use with generators in outdoor environments.

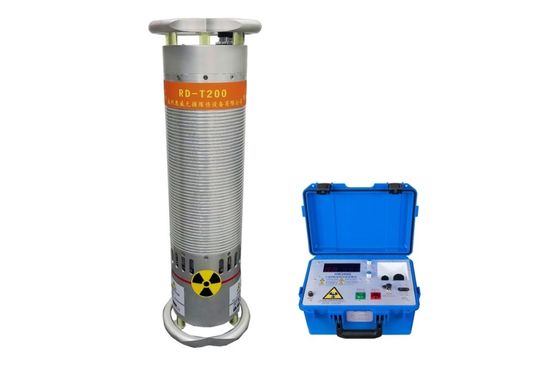

RD-T200 the technical parameters
|
|
Item
|
RD-T200
|
|
Input
|
Input power
|
AC220V± 10% 50Hz
|
|
|
Power capacity
|
Not less than 2.0 KVA
|
|
Output
|
X-ray tube voltage
|
100~ 200 KVp
|
|
|
X-ray tube current
|
3mA
|
|
|
mA stability
|
± 1%
|
|
Ray tube
|
Focus size (mm)
|
1.5× 1.5
|
|
|
Radiation angle
|
45±5°
|
|
Radiation generator
|
Working pressure
Cooling method
Insulation method
|
0.45MPa ~ 0.5Mpa
Anode grounded radiator, strong air cooling
Gas insulation SF6
|
|
|
Dimensions
Weight (kg)
|
Φ200mm´635mm(Including end rings)
|
|
|
|
15
|
|
Maximum penetration
|
Thickness Steel A3 (mm)
|
25(5min)
|
|
|
Conditions
|
Focal length 600mm, Agfa film, double-sided lead foil sensitization, solution temperature 22 degrees, film blackness ≥ 1.5
|
|
|
Sensitivity
|
Better than 2%
|
|
Controller
|
Dimensions
Weight
Circuit
|
350mm×265mm×200mm
< 8(kg)
Automatic control and protection
|
|
Environment
|
Operating temperature
Relative humidity
Altitude
|
-30°~ +40°
No more than 85%
No more than 1500 meters
|
|
Method
|
Fully automatic 1:1 mode of work and rest, the longest continuous exposure time is 5 minutes
|
