Chinese Best Seller Low Price Of Weld X Ray Inspection Machine
Main introduction:

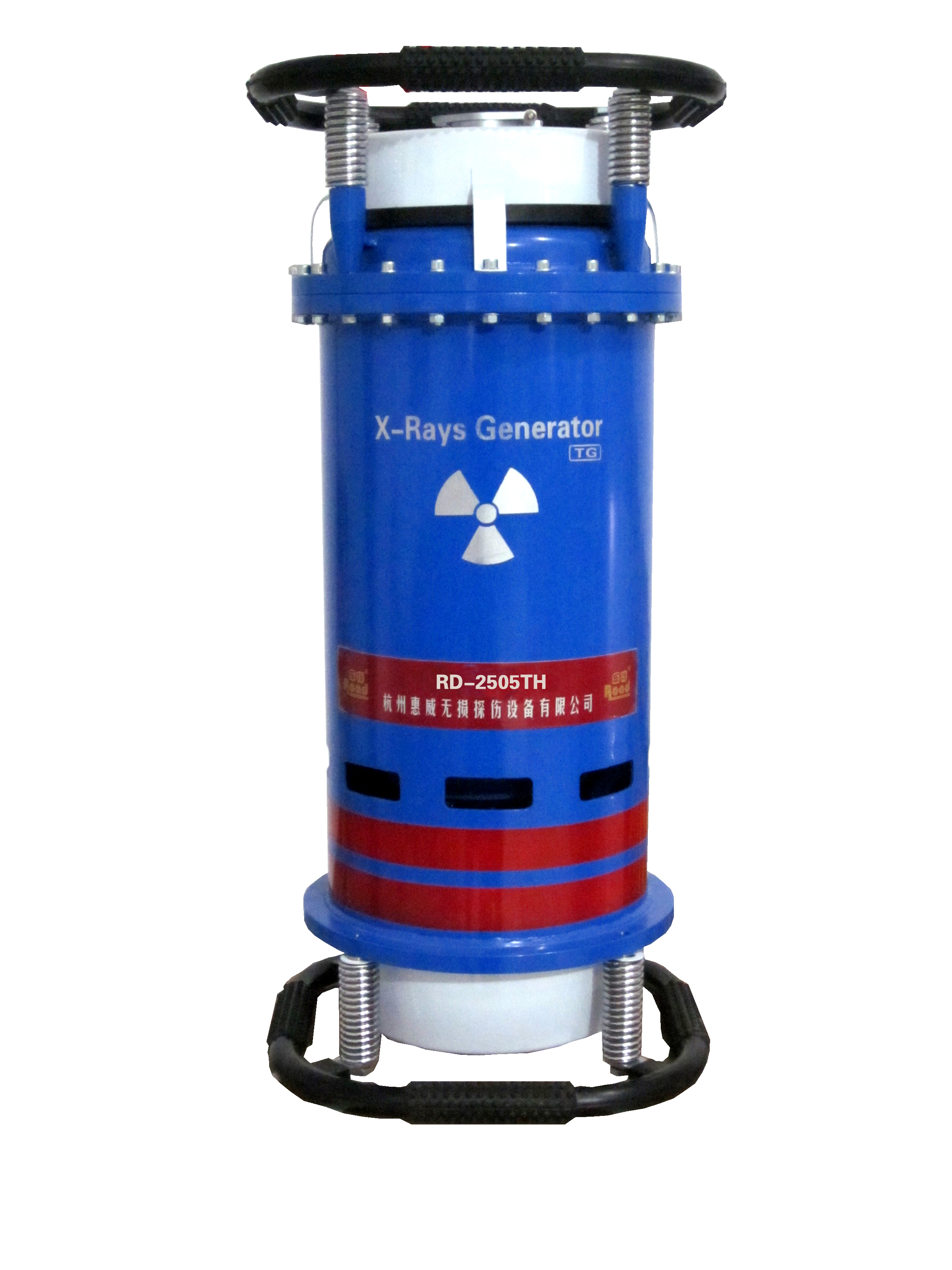

The RD-2505 is an X-ray machine equipped with an automatic intelligent training machine control system, and its most prominent feature is its high-intensity anti-interference capability.
Core Technical Specifications
• Operating Mode: Adopts a continuous 4:1 working exposure mode, with a maximum exposure time of up to 15 minutes.
• Radiation Type & Angle: Available in two models—directional radiation and circumferential radiation. The directional model has a radiation angle of 40 ± 5°, while the circumferential model offers a 360° radiation angle.
• Penetration Capacity: Boasts a maximum penetration thickness of 45mm for A3 steel.
This model is a classic choice for field and aerial operations, featuring a compact size, light weight (the generator weighs only 26kg), strong penetration capacity, and high stability.
Product features:
1.Light weight, portable, easy to take and operate.
2.Time delay function protect operator away from radiation
3.X-ray generator have over-temperature protection
4.Radiating time to cooling time 1:1
Main uses:
RD-2505 the technical parameters
|
|
Project
|
RD-2505
|
|
input
|
Input power
|
Single-phase 50Hz AC220V - 265V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
150~ 250 KVp
|
|
|
X ray tube current
|
5mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
2.0× 2.0
|
|
|
X-ray irradiation range
|
40±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ280×610
|
|
|
|
26
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
40 mmFe(5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins
|
FAQ
1. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.
2. What certificates will be offered?
CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during
delivery.
3. What service do you provide after sales?
We could provide Online instructions: Real-time support by video-call or voice-chat.
During the warranty time, we can send spare parts for free if any quality problems cause the products’ inactive. Technical
guidance is free and ready forever.
