PRODUCT DESCRIPTION
Main introduction:
The RD-1803 stands out as a high-tech industrial X-ray machine, built on a breakthrough design philosophy. It boasts a compact footprint, lightweight build, and long-term reliability, with a well-optimized internal structure. A key innovation is its first-time adoption of imported high-power components, paired with robust system protection to ensure stable operation.

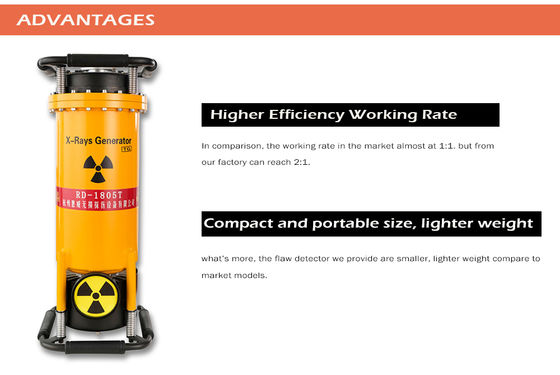

• Portability: Its generator weighs merely 12kg, featuring a sleek design that enables easy transportation and operation in narrow spaces—ideal for on-site installation, maintenance, and NDT tasks.
• Performance Options: Available in two variants to suit diverse needs:
◦ Directional type: Radiation angle of 40±5°
◦ Circumferential type: 360° full radiation coverage
• Detection Capability: Delivers a maximum penetration thickness of 20mm for A3 steel.
• Target Sectors: Widely applied in power plants, chemical facilities, aircraft manufacturers, boiler & pressure vessel production, as well as NDT for aluminum tubes and sheets.
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
RD-1805T the technical parameters
|
|
Project
|
RD-1805T
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
50~ 180 KVp
|
|
|
X ray tube current
|
3mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
0.9× 0.9
|
|
|
X-ray irradiation range
|
45±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ210×580
|
|
|
|
12
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
25 mm (5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins
|
FAQ
1. Is your Company the Manufacturer or a Trading Company?
We are a manufacturer of NDT x ray equipment in China with experience engineer working over 30 years.
2. What are the payment options?
We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance .
3. Do you have any products that approved by ISO or CE?
Yes, all of our products were strictly approved by ISO and CE, and our products can be imported to the overseas market.
