Portable Industrial Xray Machine for Advanced Non-Destructive Testing and Inspection in Industrial Applications
What is Radiographic Testing and Non-Destructive Testing (NDT)?
Radiographic testing is a widely used non-destructive testing (NDT) method that allows professionals to inspect the internal structures of various materials without causing any damage to them. In NDT, radiograph testing plays a crucial role in assessing the integrity of critical components, detecting flaws, cracks, or defects, and ensuring the safety and reliability of a wide range of industrial applications. It involves using X-rays or gamma rays, generated by an X-ray tube, to penetrate the material being tested. The resulting image reveals any internal irregularities, providing valuable insights into its quality and potential weaknesses.
Main introduction:

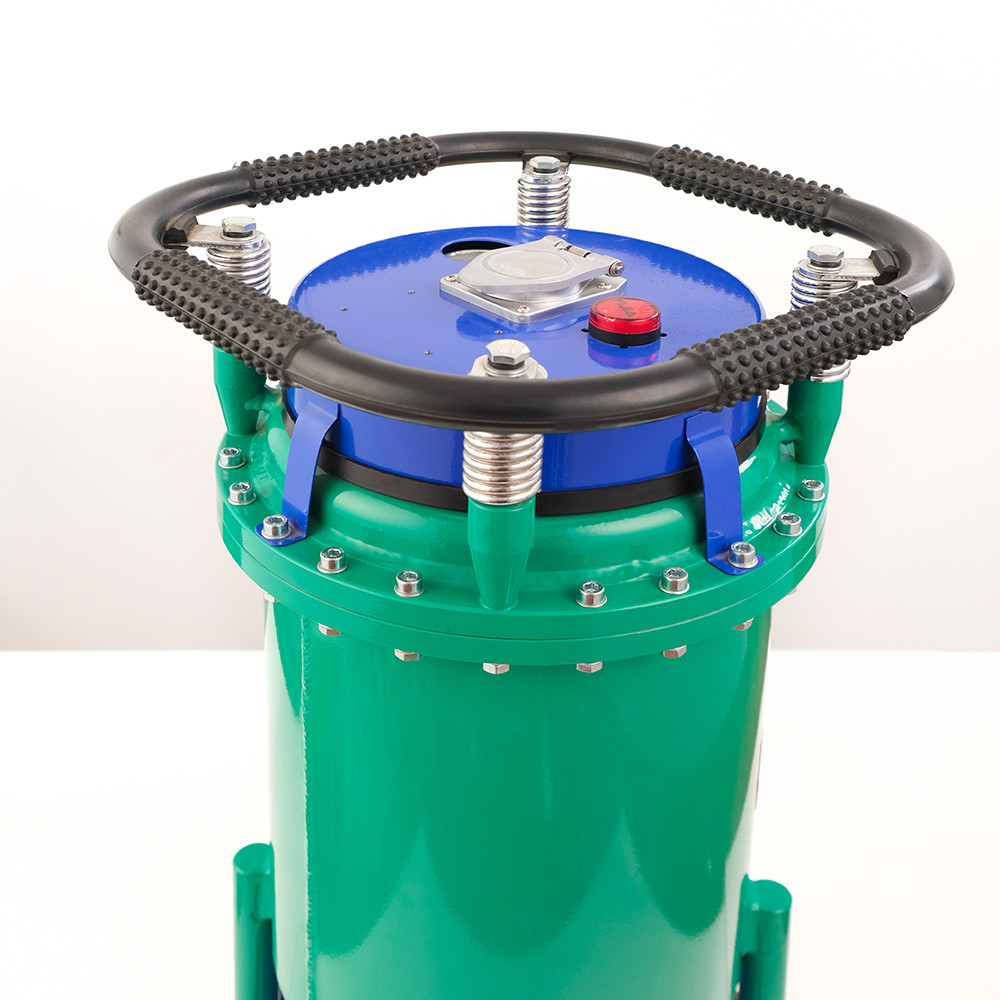

RD-2505 is an X-ray machine with automatic intelligent training machine control system. Its biggest feature is its high intensity anti-interference ability. Its working mode is continuous 4:1 working exposure, and the maximum exposure time is 15 minutes. This series of models is divided into directional and circumferential radiation models. The radiation angle of the directional machine is 40 ± 5 °, the circumferential radiation angle is 360 °, and the maximum penetration of A3 steel thickness is 45mm.
This model is a classic model for field and aerial operations with small size, light weight (generator weight 26kg), strong penetration ability and high stability.
Product features:
1.Light weight, portable, easy to take and operate.
2.Time delay function protect operator away from radiation
3.X-ray generator have over-temperature protection
RD-2505 the technical parameters
|
|
Project
|
RD-2505
|
|
input
|
Input power
|
Single-phase 50Hz AC220V - 265V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
150~ 250 KVp
|
|
|
X ray tube current
|
5mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
2.0× 2.0
|
|
|
X-ray irradiation range
|
40±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ280×610
|
|
|
|
26
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
40 mmFe(5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|

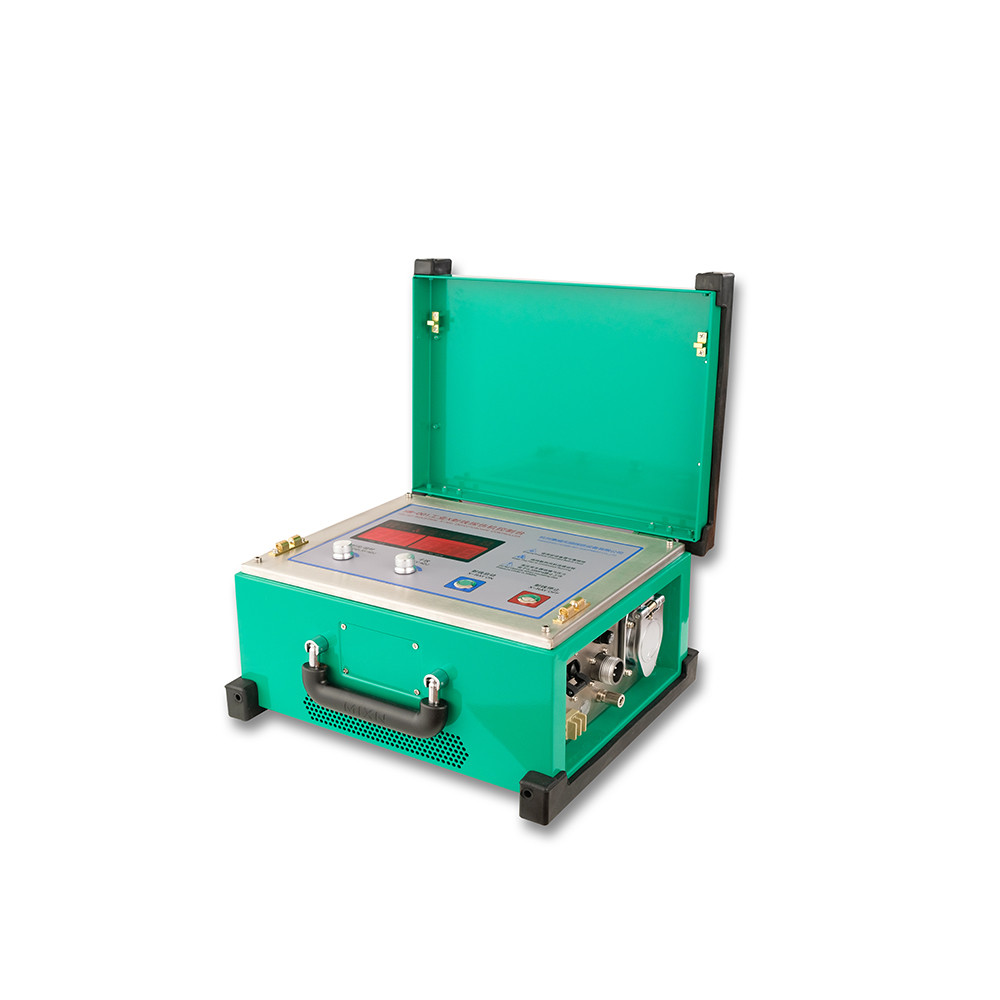

controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins
|
