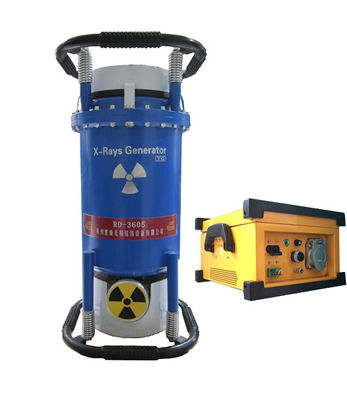

Super Light Portable X Ray Flaw Detector For Welding With 2.5mm Focus Spot Design RD-3505

1 set
MOQ
17000usd/set
Price
Super Light Portable X Ray Flaw Detector For Welding With 2.5mm Focus Spot Design RD-3505
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Industrial X Ray Testing RD-3505,x-ray Welding Machine Ndt,X-ray Inspection Systems,NDT Industrial Film Processing Machine,industrial NDT Equipment NDT X Ray Testing Machine
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 55mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 170-350kv
Exposure Time: 15 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 5mA
Weight: 34kg
Focus Spot: 2.5*2.5
Generator Weight: 34kg
Highlight:

RD-3505 portable x ray flaw detector

,

350kv portable x ray flaw detector

,

170kv portable x ray machine for welding

Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-1803T
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

              PRODUCT DESCRIPTION


Super Light Portable X Ray Flaw Detector Machine for Welding with and 2.5mm Focus Spot Design RD-3505

WHAT IS NDT RT:

NDT RT stands for Non-Destructive Testing using Radiographic Testing. It is a method of examining the internal structure of materials or components without causing damage, using penetrating radiation like X-rays or gamma rays. This technique helps identify internal flaws and defects, ensuring the integrity and safety of various structures and components across different industries



RD-3505 the technical parameters





Project

RD-3505

input

Input power

Single-phase  AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

170~ 350 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

55 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density 1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins
