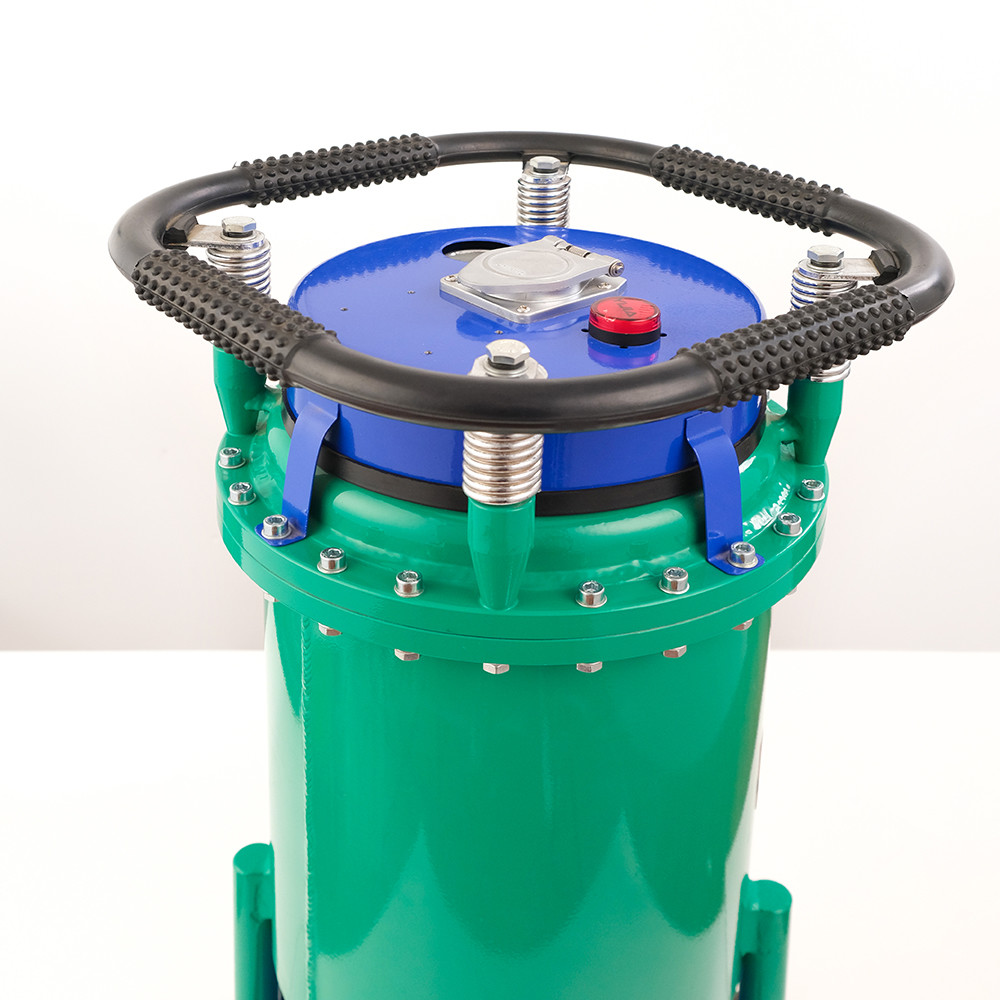

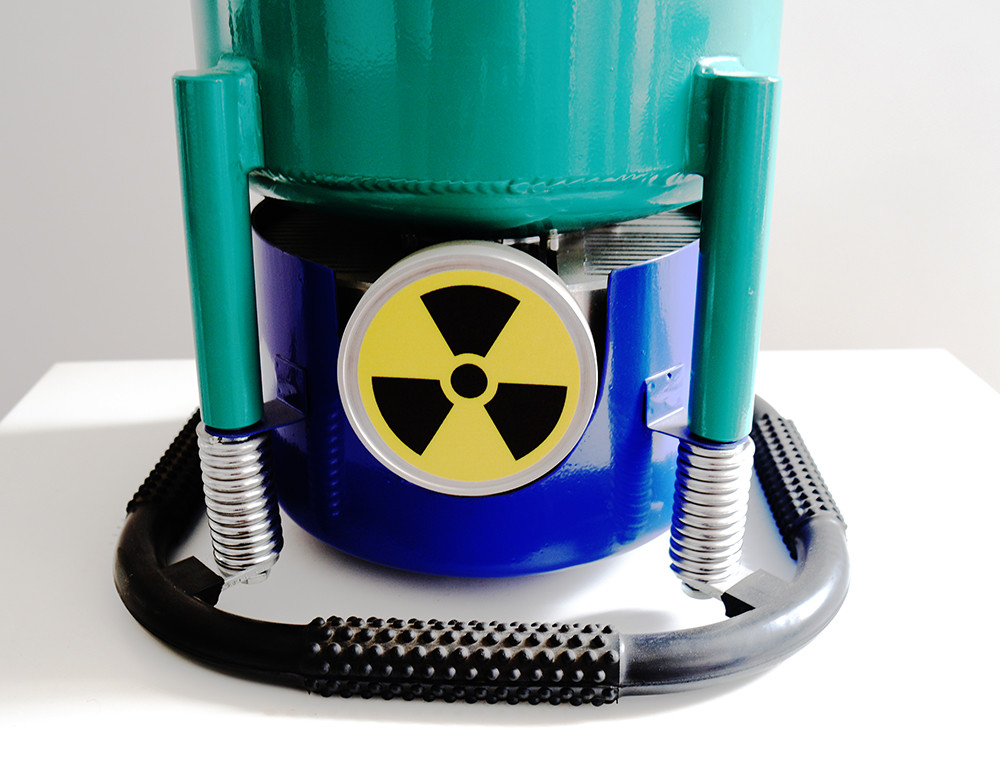

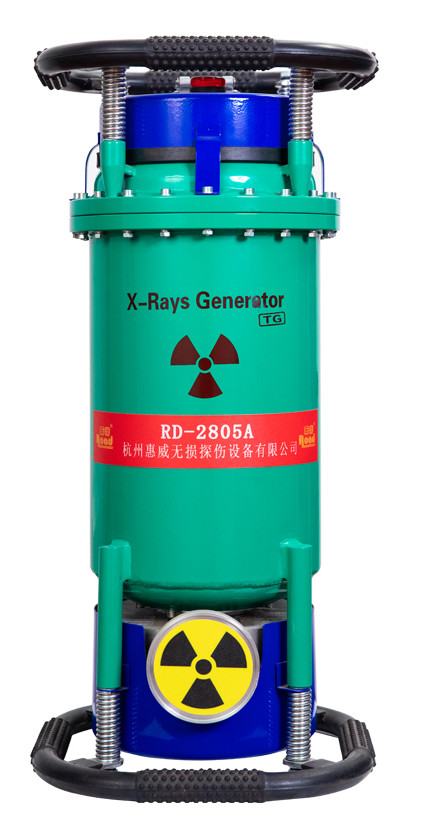

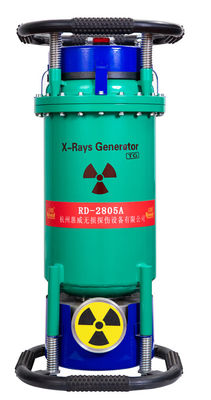

X Ray Pipeline Crawler 4WD Flaw Detector Ndt X Ray Equipment For Welds RD-2805TH
Main introduction:
RD-2805 is an X-ray machine with automatic intelligent training machine control system. Its biggest feature is its high intensity anti-interference ability. Its working mode is continuous 4:1 working exposure, and the maximum exposure time is 15 minutes. This series of models is divided into directional and circumferential radiation models. The radiation angle of the directional machine is 40 ± 5 °, the circumferential radiation angle is 360 °, and the maximum penetration of A3 steel thickness is 45mm.
This model is a classic model for field and aerial operations with small size, light weight (generator weight 26kg), strong penetration ability and high stability.
Main uses:
Applicable to the inspection of the processing and welding quality of hull, pipeline, high-pressure vessel, boiler, aircraft, vehicle, bridge and other materials, parts and components, internal defects, and the processing quality of various light metals, rubber, ceramics, etc. by the industrial departments of national defense, shipbuilding, petroleum, chemical, machinery, aerospace and construction.
RD-2805TH technical parameters
|
|
Project
|
RD-2805TH
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
150-280 KVp
|
|
X ray tube current
|
5mA
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
1.0× 2.4
|
|
X-ray irradiation range
|
360°*25°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
Size
weight (kg)
|
Φ280mm´280mm´620mm
|
|
27
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
40 mm Fe(5 min)
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins
|
FAQ
1. Is your Company the Manufacturer or a Trading Company?
We are a manufacturer of NDT x ray equipment in China with experience engineer working over 30 years.
2. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.
3. Do you have any products that approved by ISO or CE?
Yes, all of our products were strictly approved by ISO and CE, and our HUIWEI products can be imported to the overseas market.
