Home /Products/Industrial X Ray Machine/Non Destructive Testing Inspection With Portable Industrial X Ray Machine RD-3005

Non Destructive Testing Inspection With Portable Industrial X Ray Machine RD-3005

1 set
MOQ
12000usd/set
Price
Non Destructive Testing Inspection With Portable Industrial X Ray Machine RD-3005
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial X Ray Testing Xxg3005,x-ray Welding Machine Ndt,X-ray Inspection Systems,NDT Industrial Film Processing Machine,industrial NDT Equipment NDT X Ray Testing Machine
Warranty: 12 Months
Usage: Spaceflight Industry, Welding Engineering Industry, Shipbuilding Industry Inspection
Power Supply: AC220V±10%
Application: Industrial Field
Function: Steel Defect,NDT Inspection Welding
Color: Stainless Steel,Silver Gray,blue And White
Max.penetration: 50mm(A3 STEEL)
Film Type: Any Kinds Of Industrial Film
Voltage: 170-300kv
Exposure Time: 5 Minutes
Name: NDT Industrial X-ray Machine
Tube Current: 5mA
Controller Weight: 9kg
Focus Spot: 0.9*0.9
Generator Weight: 28kg
Highlight:

Non Destructive Testing Industrial X Ray Machine

,

Industrial X Ray Machine Portable

,

RD-3005 radiography ndt equipment
Basic Infomation
Place of Origin: ZHEJIANG, CHINA
Brand Name: HUIWEI
Certification: ISO 9001, CE
Model Number: RD-3005
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 15working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500sets within one month
Product Description

         Non-Destructive Testing and Inspection at Your Fingertips with Portable Industrial Xray Machine RD-3005



X Ray NDT Equipment/ NDT Radiographic Testing/NDT Flaw Inspection

NDT radiographic testing is a nondestructive testing (NDT)that uses x ray to examine the internal structure of some materials. The term NDT stands for non-destructive testing. This type of testing is often used in the manufacturing and aerospace industries. NDT X-ray testing can be used to detect a variety of different flaws, including cracks, porosity, and inclusions.

Main uses:

Non Destructive Testing Inspection With Portable Industrial X Ray Machine RD-3005 0

RD-3005the technical parameters





Project

RD-3005

input

Input power

Single-phase  AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

150~ 300 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

50 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5



sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~  +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

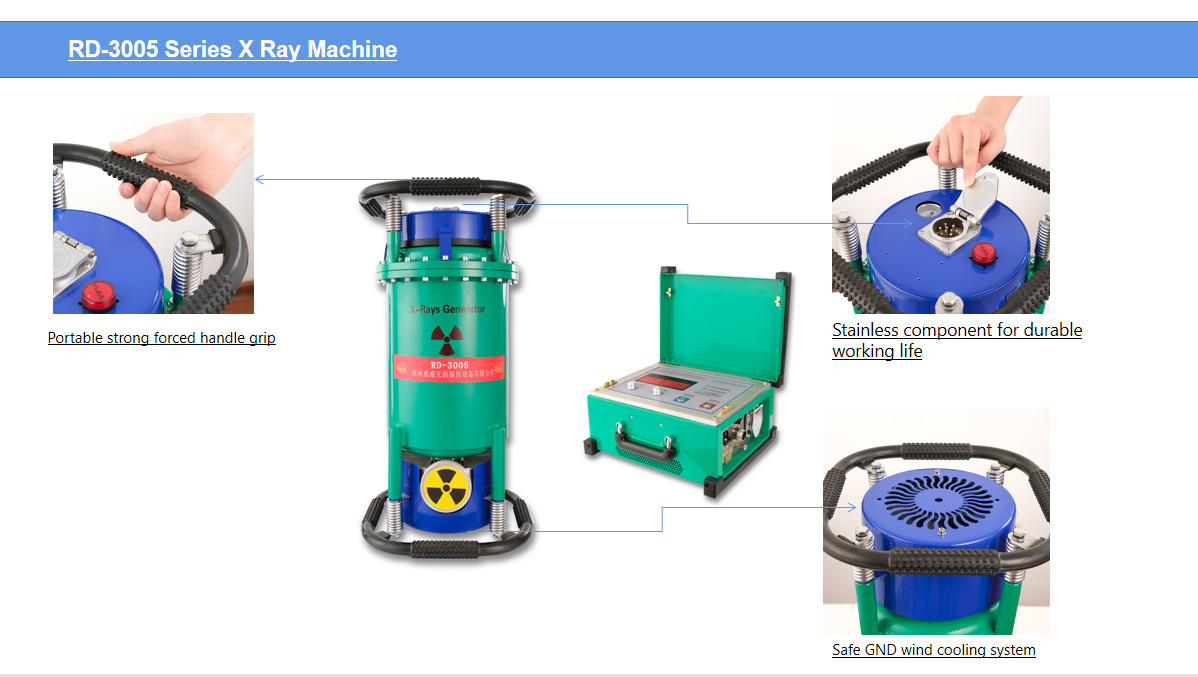

Non Destructive Testing Inspection With Portable Industrial X Ray Machine RD-3005 1
