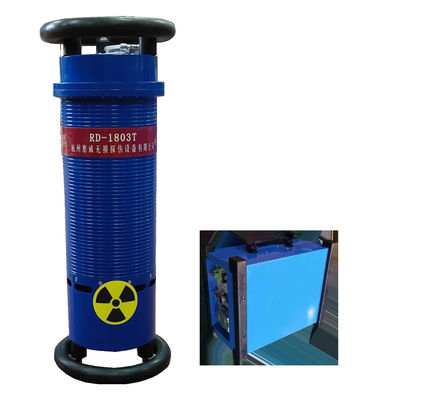

Super Light 0.9mm Focus Spot Portable X Ray Flaw Detector Machine For Welding RD-1803T
Main introduction:
RD-1803 is a high-tech industrial X-ray machine with a breakthrough design concept. The product is small in size, light in weight, reliable and durable, with a reasonable internal structure, and first uses imported high-power components, with a powerful system protection function. It is suitable for power plants, chemical plants, aircraft manufacturing plants, boiler pressure vessel manufacturing, aluminum tubes, aluminum sheets, etc. Installation and maintenance and non-destructive testing in narrow spaces. The equipment is easy to carry, the generator weighs only 12kg, and the design is exquisite. This series of equipment is divided into directional and circumferential, with a radiation angle of 40±5° and 360°, and the maximum penetration of A3 steel thickness is 20mm.
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
RD-1803T the technical parameters
|
|
Project
|
RD-1803T
|
|
input
|
Input power
|
Single-phase 50Hz AC 220± 10% V
|
|
|
Power supply capacity
|
No less than 2.0 KVA
|
|
output
|
X - ray tube voltage
|
50~ 180 KVp
|
|
|
X ray tube current
|
3mA
|
|
|
mA Stability degree
|
± 1%
|
|
Ray tube
|
Focal size
|
0.9× 0.9
|
|
|
X-ray irradiation range
|
45±5°
|
|
Ray generator
|
working pressure
Cooling mode
Insulation way
|
0.45MPa ~ 0.5Mpa
Anode ground connection radiator Strong wind cold
Gas insulation SF6
|
|
|
Size
weight (kg)
|
Φ210×580
|
|
|
|
12
|
|
Maximum penetration
|
Thickness steel A3(mm)
|
25 mm (5 min)
|
|
|
condition
|
focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5
|
|
|
sensitivity
|
superior 2%
|
|
controller
|
Size
weight
Circuit
|
325×270×180
< 9(kg)
Automatic control and protection
|
|
Environment
|
working temperature relative humidity
Altitude
|
-30°~ +40°
Not more than 85%
Not higher 1500m
|
|
methods
|
fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins
|
