RD-1803 Portable Industrial X-Ray Flaw Detector 180kV 3mA NDT Radiography Equipment

1 Set
MOQ
USD 5000-6000 / Set
Price
RD-1803 Portable Industrial X-Ray Flaw Detector 180kV 3mA NDT Radiography Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Model: RD-1803
Tube Voltage: 50-180 KV
Tube Current: 3 MA
Focal Spot Size: 1.5 Mm X 1.5 Mm
Beam Angle: 45 +/- 5 Deg
Max Penetration: 30 Mm (A3 Steel)
Cooling Method: Forced Oil-circulation Cooling
Insulation Medium: SF6 Gas
Power Supply: AC 220V +/- 10%, 50/60 Hz
Generator Weight: 12 Kg
Controller Weight: 12 Kg
Working Temperature: -10 To +40 Deg C
Certification: CE, ISO 9001
Highlight:

Portable Industrial X-Ray Flaw Detector

,

180kV Ceramic Tube X-Ray Generator

,

NDT Weld Radiography Testing Equipment
Basic Infomation
Place of Origin: China
Brand Name: Huiwei
Certification: CE, ISO 9001
Model Number: RD-1803
Payment & Shipping Terms
Packaging Details: Export-grade wooden case with shock-proof foam
Delivery Time: 7-15 working days after deposit
Payment Terms: T/T,L/C,Western Union,
Supply Ability: 100 Sets per Month
Product Description

Product Overview

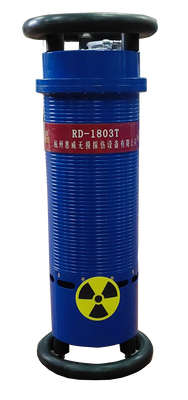

The RD-1803 Portable Industrial X-Ray Flaw Detector is a compact, high-performance NDT radiography system engineered for the non-destructive testing of welds, castings, pipelines and pressure vessels. With an adjustable tube voltage of 100–180 kV and a 3 mA tube current, it delivers clear, high-contrast radiographic images for reliable defect detection both in the field and in the workshop.

Built around a durable ceramic X-ray tube and forced oil-circulation cooling, the RD-1803 balances strong penetrating power with a lightweight, portable design — an ideal choice for global distributors serving the NDT, oil & gas, aerospace and general manufacturing industries.

Key Features

  • Adjustable 100–180 kV output for thick-section steel inspection up to 30 mm.
  • Ceramic X-ray tube with a 1.0 mm focal spot for sharp, high-contrast imaging and long service life.
  • Portable & lightweight generator (approx. 17 kg) with an ergonomic carrying handle.
  • Forced oil-circulation cooling that supports continuous inspection work.
  • 40° beam angle for efficient coverage of weld seams and complex geometries.
  • User-friendly controller with digital kV / mA display and a programmable exposure timer.
  • Robust construction with CE certification for demanding industrial environments.

Technical Specifications

Parameter Specification
Model RD-1803
Tube Voltage 50 - 180 kV (continuously adjustable)
Tube Current 3 mA
Rated Power 540 W
Focal Spot Size 1.5 mm × 1.5mm
Beam Angle 40° ± 5°
Max Penetration 25 mm (A3 steel)
Thickness Range 1 - 30 mm
Exposure Time 5minutes
Cooling Method Forced oil-circulation cooling
Insulation Medium SF6 gas
Power Supply AC 220 V ± 10%, 50/60 Hz
Generator Weight Approx. 12 kg
Controller Weight Approx. 12 kg
Working Temperature -10°C to +40°C
Relative Humidity ≤ 85%
Certification CE, ISO 9001

Company Introduction

We are a professional manufacturer specializing in NDT X-ray equipment and industrial radiography solutions. With years of experience in research, development and production, our factory is equipped with advanced taping and assembly lines, a dedicated R&D team and a strict quality-control system under ISO 9001.

Our products are exported to customers and distributors worldwide and are widely used in the oil & gas, aerospace, shipbuilding, pressure-vessel and general manufacturing sectors. We are committed to providing reliable, cost-effective inspection equipment together with responsive OEM / ODM service.


Delivery Information

Item Details
Minimum Order Quantity 1 Set (trial order); tiered pricing for distributors
Price Range USD 5,000 - 6,000 / Set (negotiable for bulk orders)
Payment Terms T/T, L/C, Western Union,
Supply Ability 100 Sets per Month
Delivery Time 7 - 15 working days after deposit
Packaging Details Export-grade wooden case with shock-proof foam
Port of Loading Shanghai / Ningbo, China
Shipping Methods Sea freight, air freight, express (DHL / FedEx / UPS)

Frequently Asked Questions (FAQ)

Question Answer
Are you a manufacturer or a trading company? We are a direct manufacturer with our own factory, providing OEM & ODM services for global distributors.
What is the minimum order quantity (MOQ)? Our MOQ is 1 set for trial orders, and we offer tiered wholesale pricing for volume and distributor orders.
What is the lead time? For standard models, 7 - 15 working days after deposit. Customized configurations depend on the required specifications.
Do you provide after-sales service? Yes. Every unit comes with a 12-month warranty and lifetime technical support.
Can I become an authorized distributor? We warmly welcome global distributors and can offer territory agreements and competitive wholesale pricing.
Which certifications do the products have? Our X-ray equipment is CE marked and produced under an ISO 9001 quality management system.
How are the products shipped and packed? Each unit is packed in an export-grade wooden case with shock-proof foam, shipped by sea, air or express.

Contact Us

Interested in becoming a distributor or placing an order? Send us your requirements and we will reply with a tailored quotation, product datasheet and shipping details within 24 hours.

Inquire now — reliable NDT X-ray equipment, factory-direct pricing, worldwide delivery.
