RD-2805A Portable X Ray Machine 280kVp 5mA SF6 NDT Flaw Detector Wholesale Supplier

RD-2805A Portable X Ray Machine 280kVp 5mA SF6 NDT Flaw Detector Wholesale Supplier
Features Gallery Product Description Chat Now
Features
Specifications
Type: Portable Industrial X-Ray Flaw Detector (NDT)
Supply Type: Factory Direct, OEM / Private Label Available
Tube Voltage Range: 150-280 KVp
Tube Current: 5 MA
Focal Spot Size: 2.0 X 2.0 Mm
Radiation Angle: 45 Deg +/- 5 Deg
Max Steel Penetration: 45 Mm (A3 Steel, 5 Min)
Insulation: SF6 Gas Insulated
Cooling Method: Anode-grounded Heat Sink, Forced Air Cooling
Power Input: AC 220V +/- 10%, 50Hz, >= 3.0 KVA
Duty Cycle: 4:1 Work-to-rest, Max 15 Min Continuous Exposure
Operating Temperature: -30 C To +40 C
Generator Weight: 26 Kg
Controller Weight: 9 Kg
Warranty: 1 Year (generator & Controller), Lifetime Maintenance
After-Sales Service: Spare Parts Supply, Engineer Training Support
Highlight:

NDT X Ray Equipment Wholesale Supplier

,

Portable X Ray Flaw Detector Manufacturer

,

Factory Direct X Ray Machine Supply
Basic Infomation
Place of Origin: Zhejiang, Hangzhou, China
Brand Name: HUIWEI
Certification: ISO 9001:2015, CE
Model Number: RD-2805A
Payment & Shipping Terms
Product Description

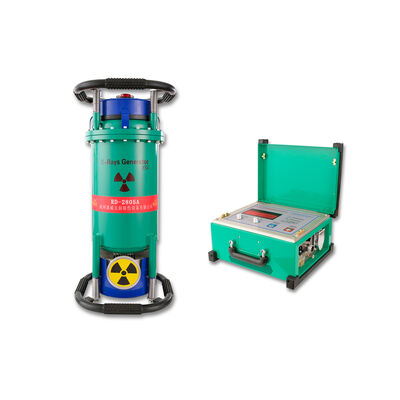

RD-2805A Portable Industrial X-Ray Flaw Detector

Factory-Direct NDT Equipment for Distributors & Resellers  |  150–280 kVp  |  5 mA  |  SF6 Gas Insulated

Why Partner with HUIWEI as Your X-Ray Equipment Supplier

HUIWEI is a factory-direct manufacturer of portable industrial X-ray flaw detectors, established in 1993 with in-house R&D, production and quality control. We supply NDT distributors and resellers with complete RD-series systems, stable export quality, competitive wholesale pricing and dependable after-sales support – so your customers get the same machine, service and warranty that we deliver to inspection companies worldwide.

Distributor Benefits
• Factory-direct pricing – no middle layers, competitive wholesale margins
• OEM / private-label options – your brand on proven RD-series equipment
• Flexible MOQ – trial orders from 1 set, volume orders with scheduled production
• Fast delivery – 15 working days standard lead time
• Spare parts & consumables – cables, fuses and accessories ready for fast dispatch
• After-sales network – 1-year warranty, lifetime maintenance and engineer training support
• Sales tools – manuals, exposure curves, marketing materials and product training provided
Product Highlights
• 150–280 kVp / 5 mA with mA stability ±1%
• Penetrates 45 mm A3 steel in 5 minutes; sensitivity better than 2%
• SF6 gas insulated generator, anode-grounded forced-air cooling
• Intelligent chopper-control console with fully automatic conditioning
• Soft start & gradual shutdown protect the X-ray tube
• Safety door interlock, over-temperature and discharge protection
• Compact & portable: generator 26 kg + controller 9 kg
• Operates from −30°C to +40°C for harsh field climates

Technical Specifications (RD-2805A)

ParameterSpecification
Input powerSingle-phase 50 Hz, AC 220 V ±10%
Power capacity≥3.0 kVA
X-ray tube voltage150–280 kVp
X-ray tube current5 mA
mA stability±1%
Focal spot size2.0 × 2.0 mm
Radiation angle45° ± 5°
Working pressure0.45–0.5 MPa
Cooling / insulationAnode-grounded heat sink with forced-air cooling / SF6 gas insulation
Max. steel penetration45 mm (A3 steel, 5 min; 600 mm FFD, Agfa film, double-sided lead foil, developer 22°C, density ≥1.5)
SensitivityBetter than 2%
Generator dimensions / weight280 × 610 mm / 26 kg
Controller dimensions / weight325 × 270 × 180 mm / 9 kg
Control & protectionAutomatic control and protection; 4:1 work-to-rest cycle; max. 15 min continuous exposure per cycle
Operating temperature−30°C to +40°C
Relative humidity / altitudeNot exceeding 85% / not exceeding 1,500 m

Standard Configuration & Packing List

ItemSpecificationQty
X-ray generatorRD-2805A (SF6 gas insulated)1 unit
X-ray control consoleRD-2805A series1 unit
Connection cable9-pin dedicated, 25 m1 pc
Power cable3-pin dedicated, 5 m1 pc
Spare fuse5A10 pcs
DocumentationUser manual, warranty card, certificate of conformity, packing list1 set

About the Manufacturer – Hangzhou Huiwei NDT Equipment Co., Ltd.

Established in 1993, HUIWEI is a professional manufacturer of industrial X-ray and NDT equipment with in-house R&D, production and quality control in Hangzhou, China. 60–70% of our output is exported, serving NDT distributors, inspection companies and industrial clients across the Middle East, Europe, Southeast Asia and the Americas.

Every RD-series unit is factory calibrated and test-exposed before shipment, covered by a one-year warranty on the generator and control console plus lifetime maintenance service. Distributors receive full technical documentation, exposure-curve guidance, operation training and responsive spare-parts support.

Address: Building A4, No. 255, Yangpingshan Road, Dayuan Town, Fuyang District, Hangzhou, Zhejiang, China
Tel: +86-571-88754564 (Business)  |  Technical Service: +86-13385815660
Website: www.ndt-x-ray.com

Become a HUIWEI Distributor

Request our wholesale catalog, dealer price list and RD-series sample kit. We welcome distributors in the Middle East and worldwide to discuss territory cooperation and OEM programs.
