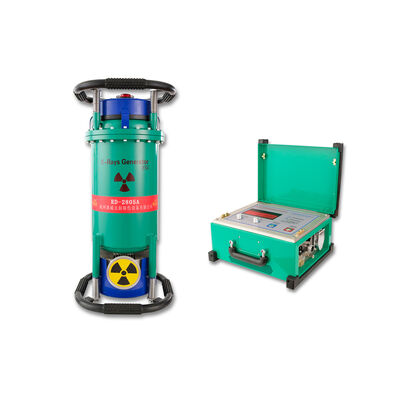

RD-2805A Portable X Ray Machine 280kVp 5mA SF6 NDT Flaw Detector for Field Weld Inspection

RD-2805A Portable X Ray Machine 280kVp 5mA SF6 NDT Flaw Detector for Field Weld Inspection
Features Gallery Product Description Chat Now
Features
Specifications
Type: Portable Industrial X-Ray Flaw Detector (NDT)
Radiation Method: Directional
Tube Voltage Range: 150-280 KVp
Tube Current: 5 MA
Focal Spot Size: 2.0 X 2.0 Mm
Radiation Angle: 45 Deg +/- 5 Deg
Max Steel Penetration: 45 Mm (A3 Steel, 5 Min)
Radiographic Sensitivity: Better Than 2%
Insulation: SF6 Gas Insulated
Cooling Method: Anode-grounded Heat Sink, Forced Air Cooling
Power Input: AC 220V +/- 10%, 50Hz, >= 3.0 KVA
Duty Cycle: 4:1 Work-to-rest, Max 15 Min Continuous Exposure
Operating Temperature: -30 C To +40 C
Generator Weight: 26 Kg
Controller Weight: 9 Kg
Warranty: 1 Year (generator & Controller), Lifetime Maintenance
Application: Pipeline, Pressure Vessel, Storage Tank And Weld Inspection
Highlight:

280kVp Portable X Ray Flaw Detector

,

SF6 Gas Insulated 5mA Generator

,

45mm Steel Penetration Field Radiography
Basic Infomation
Place of Origin: Zhejiang, Hangzhou, China
Brand Name: HUIWEI
Certification: ISO 9001:2015, CE
Model Number: RD-2805A
Payment & Shipping Terms
Product Description

RD-2805A Portable Industrial X-Ray Flaw Detector

150–280 kVp  |  5 mA  |  SF6 Gas Insulated  |  Field-Ready NDT Radiography System

Product Overview

The RD-2805A is a portable industrial X-ray flaw detector engineered for on-site radiographic testing of welds, pipelines, pressure vessels and structural steel. It pairs a lightweight SF6 gas-insulated X-ray generator with an intelligent chopper-control console that delivers a stable 150–280 kVp output at 5 mA. Fully automatic conditioning, soft start / gradual shutdown and complete fault protection make it a dependable daily workhorse for third-party inspection companies and NDT service teams working in remote or harsh field environments.

Why Inspection Companies Choose RD-2805A
• True field portability – 26 kg generator + 9 kg controller, 4:1 work-to-rest cycle with up to 15-minute continuous exposure
• Deep penetration – 45 mm A3 steel in 5 minutes, sensitivity better than 2%
• Built for harsh sites – operates at −30°C to +40°C, ideal for desert, coastal and outdoor projects
• Tube protection – automatic conditioning, soft start and gradual shutdown extend X-ray tube service life
• Safety first – lead-door interlock terminals, radiation warning light output, over-temperature and discharge protection
• Low maintenance – modular circuitry, detachable cooling fan, cumulative exposure-time recorder
Typical Applications
• Third-party NDT / inspection service companies
• Oil & gas pipeline and storage tank radiography
• Petrochemical, refinery and desalination plant QA/QC
• Pressure vessel and boiler weld examination
• Power plant and infrastructure construction
• Shipbuilding and offshore fabrication
• Aerospace, defense and general weld inspection

Technical Specifications (RD-2805A)

ParameterSpecification
X-ray tube voltage150–280 kVp (continuously adjustable)
X-ray tube current5 mA
mA stability±1%
Focal spot size2.0 × 2.0 mm
Radiation angle45° ± 5°
Max. steel penetration45 mm (A3 steel, 5 min; 600 mm FFD, Agfa film, film density ≥1.5)
Radiographic sensitivityBetter than 2%
Insulation methodSF6 gas insulated
Cooling methodAnode-grounded heat sink with forced-air cooling
Generator working pressure0.45–0.5 MPa
Power inputSingle-phase AC 220V ±10%, 50 Hz
Power capacity≥3.0 kVA
Control methodAdaptive chopper frequency conversion control (DC 100–240V output)
Duty cycle4:1 work-to-rest; max. 15 min continuous exposure per cycle
Protection functionsmA over/under-range, real-time voltage over/under-range, automatic discharge detection, over-temperature, safety door interlock
Generator dimensions / weight280 × 610 mm / 26 kg
Controller dimensions / weight325 × 270 × 180 mm / 9 kg
Operating temperature−30°C to +40°C
Relative humidity / altitude≤85% RH / ≤1,500 m

Standard Configuration & Packing List

ItemSpecificationQty
X-ray generatorRD-2805A (directional, SF6 insulated)1 unit
Intelligent control consoleRD-2805A series1 unit
Connection cable9-pin dedicated, 25 m1 pc
Power cable3-pin dedicated, 5 m1 pc
Spare fuse5A10 pcs
DocumentationUser manual, warranty card, certificate of conformity, packing list1 set

About Hangzhou Huiwei NDT Equipment Co., Ltd.

HUIWEI is a professional manufacturer of industrial X-ray and non-destructive testing equipment, established in 1993 and based in Hangzhou, Zhejiang, China. We integrate R&D, production and sales in-house, serving NDT distributors, inspection companies and industrial end-users in more than 40 countries, with 60–70% of output exported overseas.

Every HUIWEI X-ray unit is factory calibrated and tested before shipment, backed by a one-year warranty on the generator and control console plus lifetime maintenance support. Our engineers provide operation training, exposure-curve guidance and responsive after-sales service for long-term projects.

Address: Building A4, No. 255, Yangpingshan Road, Dayuan Town, Fuyang District, Hangzhou, Zhejiang, China
Tel: +86-571-88754564 (Business)  |  Technical Service: +86-13385815660
Website: www.ndt-x-ray.com

Request a Quotation

Tell us your workpiece material, thickness and site conditions – our engineers will recommend the right RD-series configuration, exposure parameters and delivery schedule for your inspection projects.
